cnc controller lathe ck0640a
- 165 Set / Sets per Month
- Qingdao Shanghai Ningbo Taijin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
| Automatic Grade: | Automatic | Max. Swing Diameter: | 400mm | Place of Origin: | Shandong, China |
| Brand Name: | Pulute | Model Number: | CK6140 | Voltage: | 380V |
| Power(W): | 5.5 kw | Dimension(L*W*H): | 2200*1100*1620mm | Weight: | 1800kg |
| Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

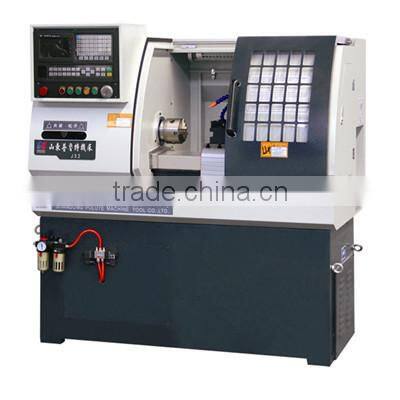

cnc controller lathe ck0640a
1. cnc controller lathe ck0640a advantages
- wider guide width to 300mm, improve bed rigidity and stability for long servicing time
- advanced spindle structure enable inverter stepless speed up to 2000RPM
- 45 degrees hardness, high frequency quenched guide way
- full cover, good water proof advantage, good dust and chip proof advantage
- complete set coolant system
- automatic integrated lubrication system
- advanced LED lighten system
- three color warning light
- complete files like user manual, main motor driver manual, video, CD etc
2. cnc controller lathe ck0640a specification
cnc controller lathe ck0640a | specification |
max. swing over bed | 400mm |
Max. swing over cross slide | 250mm |
Max. processing length | 600mm |
Spindle bore | 45mm |
Spindle speed | 2000rpm |
Spindle nose | A2-6 |
Spindle motor power | 5.5kw |
X/Z axis position accuracy | 0.01/0.015mm |
X/Z axis repeatability | 0.012/0.013mm |
X/Z axis motor torque | 5.5/7.5 N.m |
X/Z axis motor power | 1/1.5kw |
X/Z axis rapid feeding speed | 8/10 m/min |
Tool bar section | 20*20mm |
Tail stock sleeve dia | 60mm |
Tail stock sleeve travel | 100mm |
Tail stock taper | MT4# |
N.W. | 1800kg |
Machine dimension (L*W*H) | 2200*1100*1620mm |

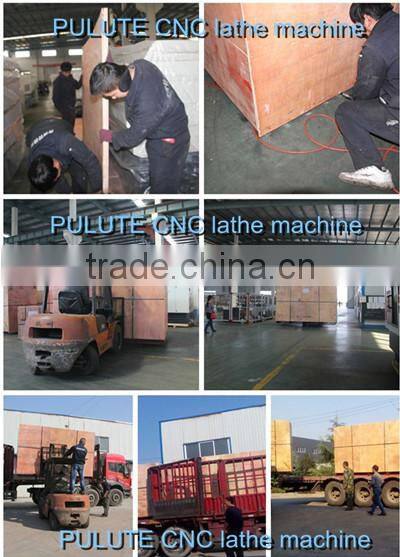

3.Delivery
5. Training could be offered.
Please contact us for more details.
