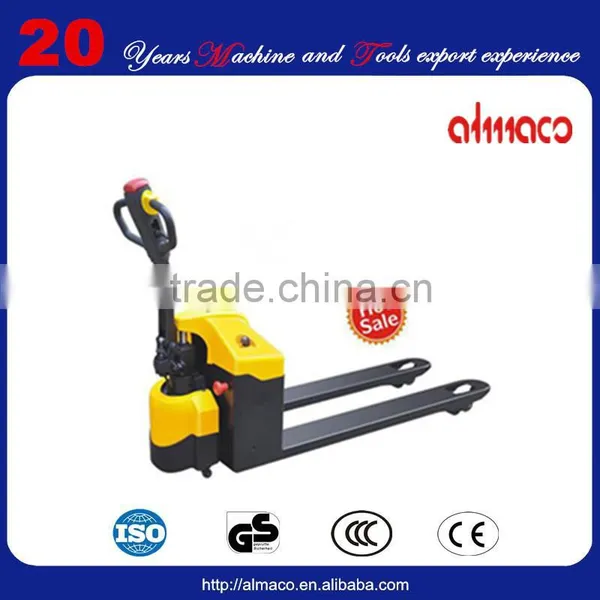

Small Electric Truck With Long Service

Small Electric Truck With Long Service thumbnail-1
Small Electric Truck With Long Service photo-1
US$ 300 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
ALMACO
Contact Supplier Request Quote Chat Now
Almaco Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number ABD15A
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1500KG
Max. Lifting Height 1714MM
Min. Lifting Height 1644MM
Fork Length 490MM
Fork Width 160MM
Overall Dimensions 53x160x1150mm
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas



Product Description

small   electric truck with long service

Main  specification:





 Model

ABD15A

ABD20A
 Load Capacity  Q(kg)

1500

2000
 Load centre distance  c(mm)

600

600
 Lowered fork height  h13(mm)

85/75

87/77
 Wheelbase  y(mm)

1287/1357

1277/1347
 Tyre size, front  mm

Φ195

Φ195
 Tyre size, rear  mm

Φ80/Φ74

Φ80/Φ75
 Max. lift height  h3(mm)

190/180

190/180
 Height of tiller in drive position min./max.  h14(mm)

770/1254

770/1254
 Overall length  l1(mm)

1644/1714

1644/1714
 Length to face of forks  l2(mm)

490

490
 Fork dimensions  s/e/l(mm)

53/160/1150(1220)

60/160/1150(1220)
 Width overall forks  b5(mm)

520/550/685

520/550/680
 Ground clearance, centre of wheelbase  m2(mm)

32/22

27/17
 Aisle width for pallets 1000×1200 crossways  Ast(mm)

1844/1914

1844/1914
 Aisle width for pallets 800×1200 lengthways  Ast(mm)

1894/1914

1894/1914
 Turning radius  Wa(mm)

1445/1515

1445/1515
 Travel speed, laden/unladen  Km/h

5.3/5.8

5.0/5.5
 Max. gradeability, laden/unladen  %

5/15

3/10
 Battery voltage, nominal capacity K10  V/Ah

24/65

24/80
 Battery weight  kg

46

51.2
 Service weight (with battery)  kg

200

240









Advantages



 Permanent magnet brushless motor with high electric efficiency, maintenance free.

 Gradient performance is high.

 With smallest turning radius.

 Full sealed battery free to maintain, big capacity 24v/65AH fit for high intensity use.Traction speed is consistency under laden or unladen, improve productive efficiency.

Horizontal drive wheel provides convenient replacement.

 Stepless speed control.

Floating balance wheel is automatic adjust height, prevents shaking when unload.

 Built-in charger.





Packaging & Shipping



The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign





Our Services



1.OEM



2.Spare parts



3.Warranty for one year



4.Tech support is available for 24 hours



5.Fast delivery





Company Information



Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
 Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.









CERTIFICATION:



customer visiting:





small electric truck with long service

Our products are exported to more than 50 countries, more than 700 customers











FAQ



1. Accept L/C, T/T  ,D/A,D/Ptype of payments



2. Regarding to the technical questions, pls contact our R&D



3. Any question, call us or send email, we will try our best to satisfy you
