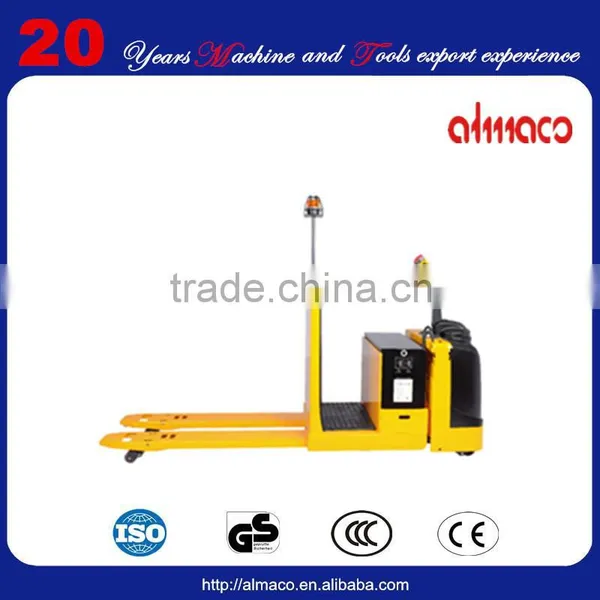

advanced full electric pallet truck
Main specification:
| Model | ABD30Q |
|
| Drive type | Electric |
|
| Operation type | Standing |
|
| Load capacity | Q(kg) |
3000/6600 |
| Load centre | c(mm/inch) |
600/23.6 |
| Wheelbase | y(mm) |
2115/83 |
| Service weight(with battery) | Kg/lbs |
900/1984 |
| Tyres | polyurethane |
|
| Max. Lift height | h3(mm/inch) |
135/5.3 |
| Fork height, lowered | h13(mm/inch) |
82/3.2 |
| Overall length | l1(mm/inch) |
2570/101 |
| Length to face of forks | l2(mm/inch) |
1350/53 |
| Overall width | b1(mm/inch) |
823/32.4 |
| Fork dimensions | s/e/l(mm/inch) |
55/230/1220/2.2×9.1×48 |
| Width overall forks | b5(mm/inch) |
685/27 |
| Ground clearance,centre of wheelbase | m2(mm/inch) |
27/1.1 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm/inch) |
2790/110 |
| Aisle width for pallets 800×1200 crossways | Ast(mm/inch) |
2790/110 |
| Turning radius | Wa(mm/inch) |
2290/90 |
| Travel speed, laden/unladen | Km/h |
8/8.5 |
| Lift speed, laden/unladen | m/s |
0.025/0.035 |
| Lowering speed, laden/unladen | m/s |
0.03/0.03 |
| Service brake | Electro magnetic |
|
| Drive motor capacity | kW |
2.2 |
| Lift motor capacity | kW |
1.5 |
| Battery voltage, nominal capacity K5 | V/Ah |
24/560 |
| Battery weight | Kg/lbs |
559/1232 |
Advantages
- Advanced electric power steering technology (EPS), can be flexible and comfortable steering, with automatic speed reduction function when turning, and in good feeling for driving and controlling.
- Stand on the platform with good cushioning, in line with ergonomic backrest design, making the worker more comfortable.
- Option for warning lights, on and off can be controlled, to be more secure.
- Easy & simple to operate, making handling operations more easier and efficient.
- With large capacity battery, and the battery can be quickly took out/ replaced from the side way, to meet the high intensity of the handling operations.
- Powerful drive motor and control system, making the truck with strong momentum. Fully laden with 9Km/h maximum speed, fully laden with 10% climbing ability.
- German Frei handle and accelerator is with electronic steering function, and the handle has automatic function back to the positive direction.
- Professional appearance design, is not only beautiful and mellifluence, but also ergonomic, for comfortable driving, wide vision. Platform with automatic power off when operator is leaving, make it more security and reliability.
- The straight tappet with will not bend due to overloading, vibration shock occurs, the straight tappet length can be precise adjustment.
- Fork head fitted with double steel entry rollers, for smoothly moving into US pallets.
- Lifting height up to 135mm/5.3inch, the truck has better ability of pass through
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
