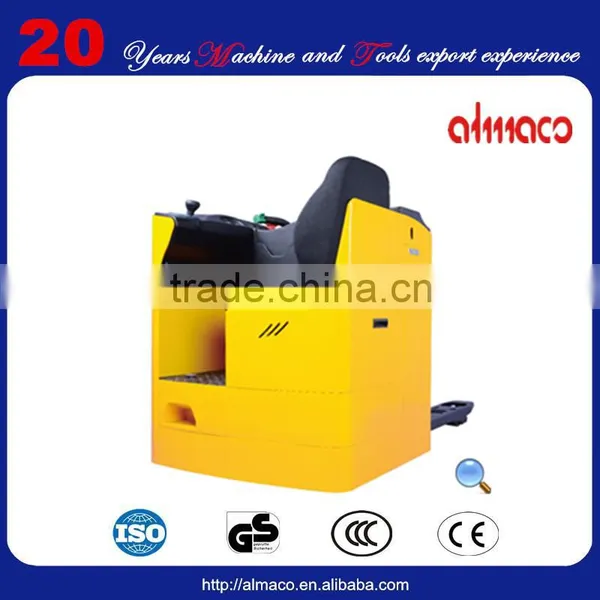

Easy Operate Electric Truck for Sale

Easy Operate Electric Truck for Sale thumbnail-1
Easy Operate Electric Truck for Sale photo-1
US$ 300 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
ALMACO
Contact Supplier Request Quote Chat Now
Almaco Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number ABD20Z
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 2000KG
Max. Lifting Height 1295MM
Min. Lifting Height 1042MM
Fork Length 850MM
Fork Width 170MM
Overall Dimensions 55X170X1150MM
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas





Product Description

  easy operate electric truck for sale

Main  specification:



Model



ABD20Z

ABD25Z

Drive type



electirc

electirc

Operation type



seated

seated

Load capacity

Q(kg)

2000

2500

Load centre distance

c(mm)

600

600

Load idetance,centre of drive axle to fork

x(mm)

864

825/875/945

Fork height,lowered

h13(mm)

85

82

Wheelbase

y(mm)

1442

1395/1445/1515

Axle loading,laden front/rear

kg

960/2020

1240/2160

Axle loading,unlader front/rear

kg

700/240

670/230

Tyres



polyurethane

polyurethane

Max.lift height

h3(mm)

210

210

Seat height/stand height

h7(mm)

910

900

Overall length

l1(mm)

2010

1900/1950/2020

Length to face of forks

l2(mm)

858

800

Overall width

b1(mm)

864

864

Fork dimensions

s/e/l(mm)

55x170x1150(1100/1220)

54x180x1100(1150/1220)

Width overall forks

b5(mm)

520/550/650/685

520/550/650/685

Ground clearance,centre of wheelbase

m2(mm)

30

28

Aisle width for pallets 1000×1200 crossways

Ast(mm)

2165

2115/2165/2235

Aisle width for pallets 800×1200 crossways

Ast(mm)

2265

2215/2215/2235

Turning radius

Wa(mm)

1725

1630/1680/1750

Travel speed,laden/unladen

Km/h

6.5/7

7.5/8

Lift speed,laden/unladen

m/s

0.03/0.04

0.039/0.056

Lowering speed,laden/unladen

m/s

0.05/0.045

0.05/0.04

Service brake



Electromagnetic

Electromagnetic

Battery voltagem,nominal capacity K5

V/Ah

24/320

24/300

Battery weight

kg

321

264

Type of drive control



Moset

Moset

Service weight(with battery)

kg

940

900









Advantages



• Advanced AC control system eliminating the motor brushes and directional contactors, which makes the minimal maintenance requirements. Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.

• The padded armrest supports the operator’s upper arm and shoulder, reducing operator fatigue.

• Built-in pressure relief valve protects the trucks from overloads.

• Emergency power disconnect.

• Stepless speed control.

• Big battery capacity 320Ah, drive motor 2.2KW. The work efficiency and reliability are much improved.

• The deadman brake device in the compartment makes operation safer.

• Built-in hood lock device and safety lock device increase the safety level of the trucks.







Packaging & Shipping



The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign





Our Services



1.OEM



2.Spare parts



3.Warranty for one year



4.Tech support is available for 24 hours



5.Fast delivery





Company Information



Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
 Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.









CERTIFICATION:



customer visiting:





easy operate electric truck for sale

Our products are exported to more than 50 countries, more than 700 customers











FAQ



1. Accept L/C, T/T  ,D/A,D/Ptype of payments



2. Regarding to the technical questions, pls contact our R&D



3. Any question, call us or send email, we will try our best to satisfy you
