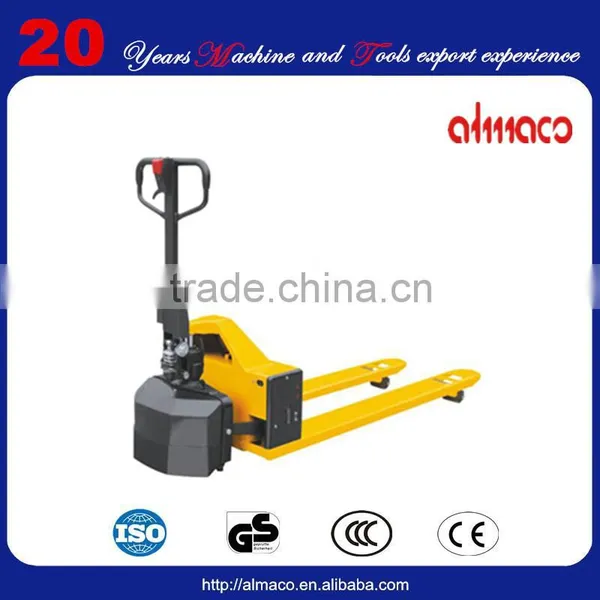

electric pallet truck by ISO certificate
Main specification:
Model |
|
ABD10A-2 |
Load Capacity |
Q(kg) |
1000 |
Load centre distance |
c(mm) |
500 |
Lowered fork height |
h13(mm) |
85/75 |
Wheelbase |
y(mm) |
1280/1350 |
Tyre size,front |
mm |
Φ185 |
Tyre size,rear |
mm |
Φ80/Φ74 |
Max. lift height |
h3(mm) |
200/190 |
Height of tiller in drive position min./max. |
h14(mm) |
1244 |
Overall length |
l1(mm) |
1685/1755 |
Length to face of forks |
l2(mm) |
535 |
Fork dimensions |
s/e/l(mm) |
45/160/1150(1220) |
Width overall forks |
b5(mm) |
520/550/680 |
Ground clearance,centre of wheelbase |
m2(mm) |
40/30 |
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1885/1955 |
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1935/1955 |
Turning radius |
Wa(mm) |
1490/1560 |
Travel speed,laden/unladen |
Km/h |
2.6/3.8 |
Max.gradeability,laden/unladen |
% |
5/15 |
Battery voltage,nominal capacity K5 |
V/Ah |
24/38 |
Battery weight |
kg |
26 |
Service weight (with battery) |
kg |
150 |
Advantages
• Two-speed driving system.
• Emergency brake switch.
• Manual lifting and motor driving.
• AC motor,no carbon brush,maintenance free,low noise.
• Sealed batteries free of maintenance,safe operation and no pollution.
• Built-in charger.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
