BC6066 Shaper Machine

Name: BC6066 Shaper Machine
Brand: Linuo
SKU: 114850673
Availability: InStock

US$ 5,500 - 6,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Linuo

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Linuo

Model Number BC6066

Voltage 380V 50Hz

Power(W) 3kw

Dimension(L*W*H) 2342x1225x1480mm

Weight 1800kg

Certification ISO9001

Warranty 12months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1, shaper machine
2,used in a variety of flat planing and molding surface
3,Max.swivel angle of the toolhead:60

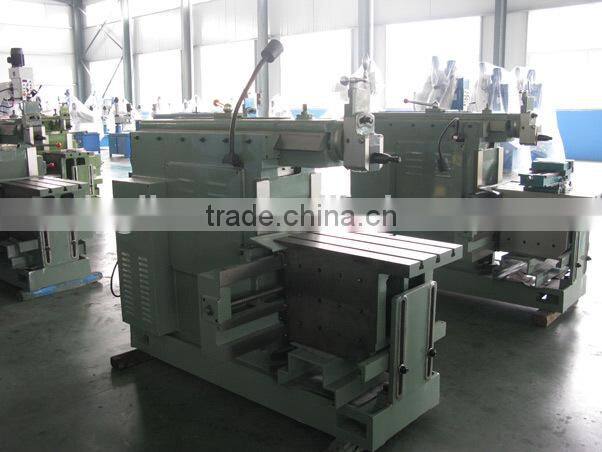

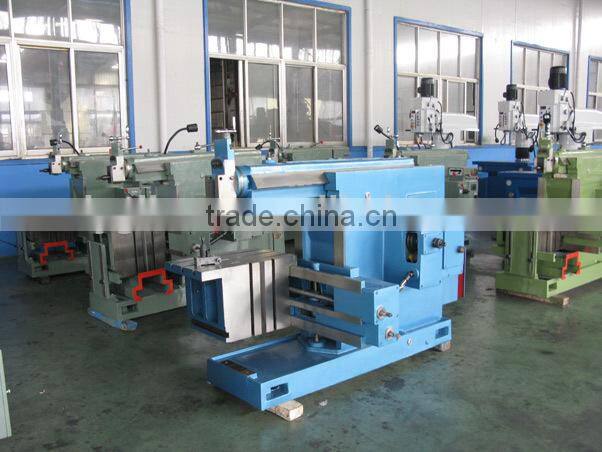

BC6066 shaper machine

Features:

1. With a good design, it is characterized as reliable preformance, but easy operation and maintenance.

2. This machine is designed for cutting flat an formed surface on various kinds of small or medium sized workpiece.

3. Toolhead can be swivel ±60° and manually feed.

4. The main cutting motion of the machine is lineat motion being converted from circular motion of gears by

linkblock mechanism. Special suitable for machining plane, groove and dovetail surface. Also, can be used for

machining the forming surface.


Model		BC6050	BC6063/BC6066	BC60100
Max. shaping length		500mm	630/660mm	1000mm
Max. range of the horizontal movement of the table		525mm	385mm	800mm
Max. distance between the ram bottom and table		370mm	630mm	400mm
Max. length of the vertical movement of table		270mm	360mm	380mm
Dimension of the table top(LxW)		440x360mm	630x400mm	1000x500mm
			660x400mm
Max.stroke length of the toolhead		120mm	120mm	160mm
Max.swivel angle of the toolhead		±60°	±60°	±60°
Max. section of tool(WxT)mm		20x30mm	20x30mm	30x45mm
Number of ram reciprocation per minute		14-80	14,20,28,40,56,80	15,20,29,42,58,83
Range of table feed	Horizontal feed	0.2-0.25mm/recip	0.2-0.26mm/recip	0.3-3mm/recip
	Vertical feed	0.08-1mm/recip	0.08-2mm/recip	0.15-0.5mm/recip
Rapid travel of table	Horizontal feed	0.95mm/recip	—	3mm/recip
	Vertical feed	0.38mm/recip		0.5mm/recip
Width of T-slot for center positioning		18mm	18mm	22mm
Power fo the main motor		3kW	3kW	7.5kW
N.W./G.W.		1650/1750kg	1750/1870kg	4870/5150kg
			1800/1920mm
Overall dimensions(LxWxH)		1900x1200x1450mm	2342x1225x1480mm	3640x1575x1780mm
			2357x1225x1480mm
