Outdoor SMD3535 RGB p6 Led Panel Waterproof

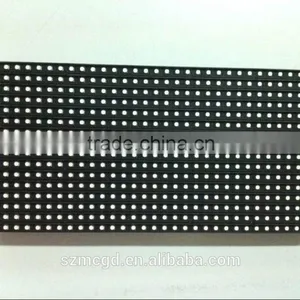

Outdoor SMD3535 RGB p6 Led Panel Waterproof thumbnail-1
Outdoor SMD3535 RGB p6 Led Panel Waterproof thumbnail-2

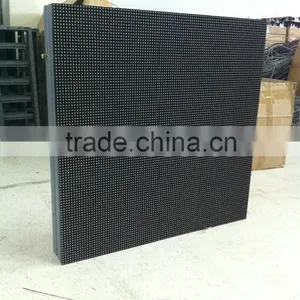

Outdoor SMD3535 RGB p6 Led Panel Waterproof thumbnail-3
Outdoor SMD3535 RGB p6 Led Panel Waterproof thumbnail-4
Outdoor SMD3535 RGB p6 Led Panel Waterproof photo-1

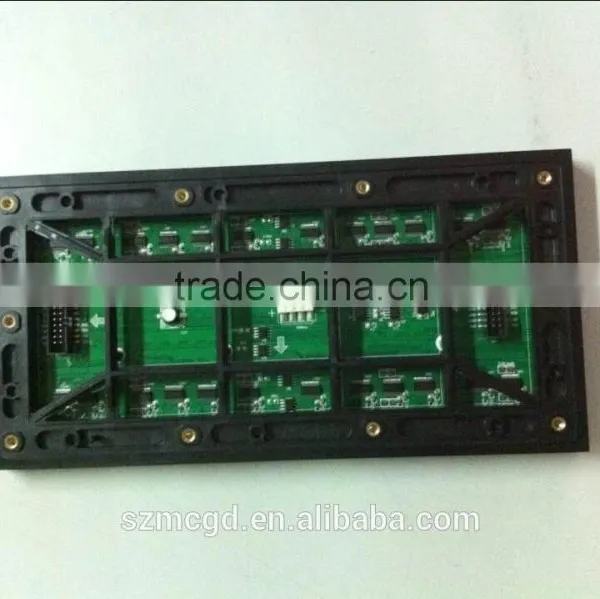

Outdoor SMD3535 RGB p6 Led Panel Waterproof photo-2

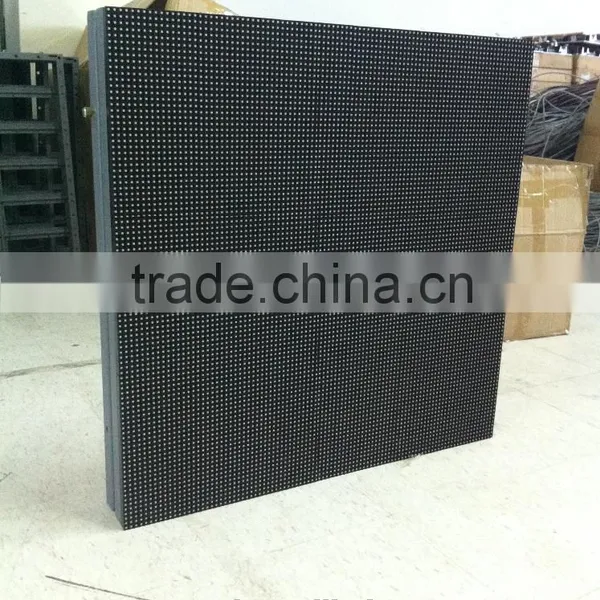

Outdoor SMD3535 RGB p6 Led Panel Waterproof photo-3

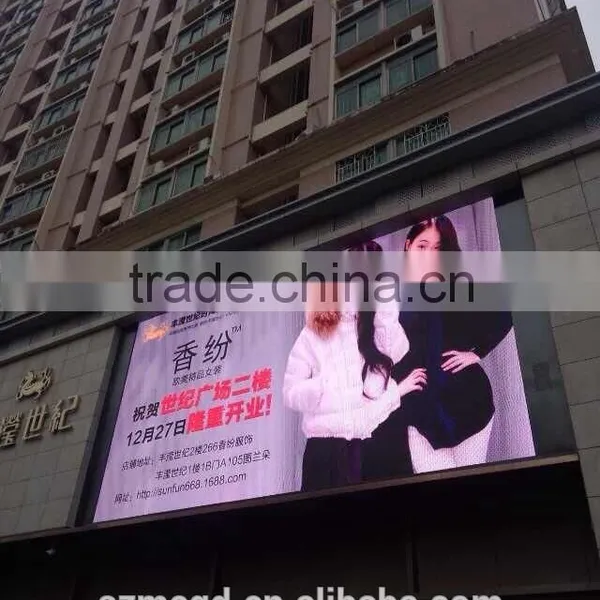

Outdoor SMD3535 RGB p6 Led Panel Waterproof photo-4
US$ 50 - 55 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
p6
Usage:
Outdoor
Contact Supplier Request Quote Chat Now
Shenzhen Brighter Optical & Electrical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number p6
Usage Outdoor
Tube Chip Color Full Color
Display Function Animation
Pixels Other, 6mm

Specifications

P6 1R1G1B outdoor SMD led screen
1.module size:192*192mm
2.pixel configuration:1R1G1B
3.brightness:6500cd/sqm

Specifications

P6 1R1G1B outdoor SMD3535 led screen
1.module size:192*192mm
2.pixel configuration:1R1G1B
3.brightness:6500cd/sqm

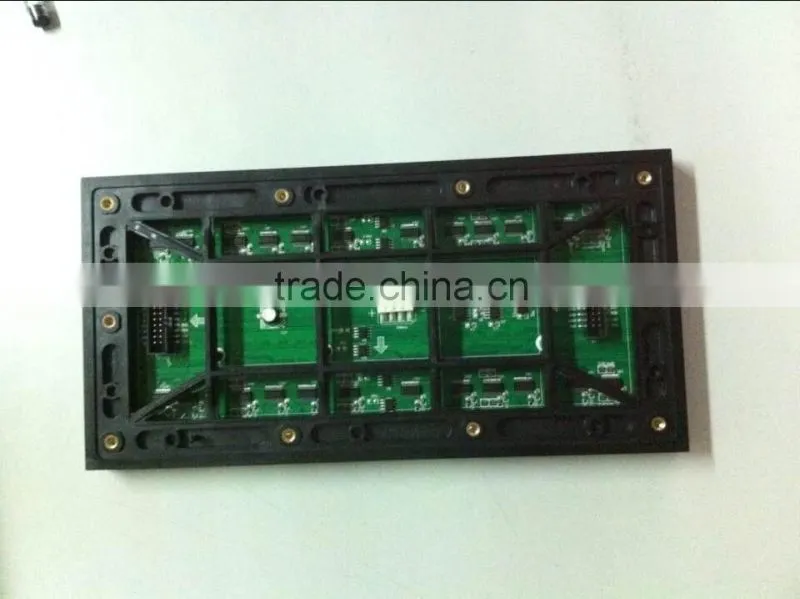

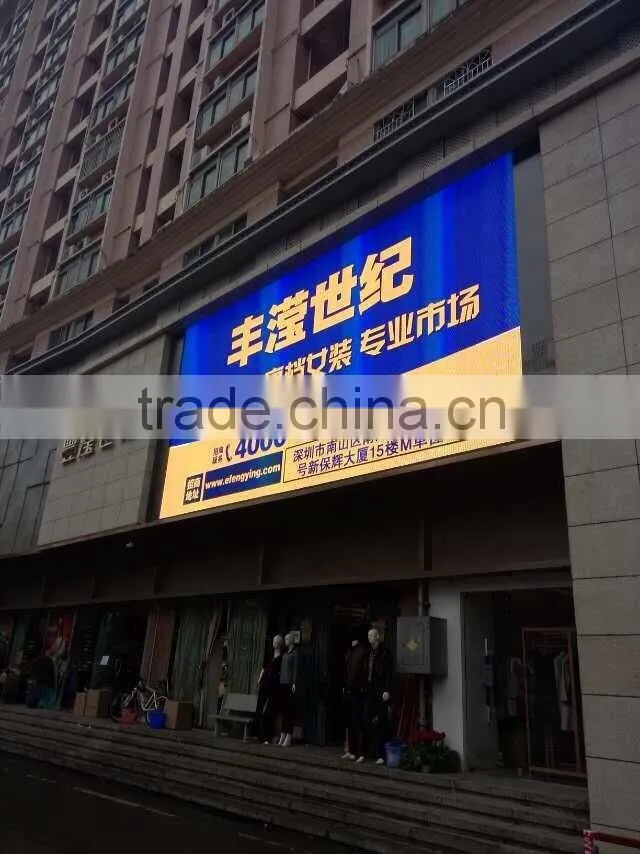

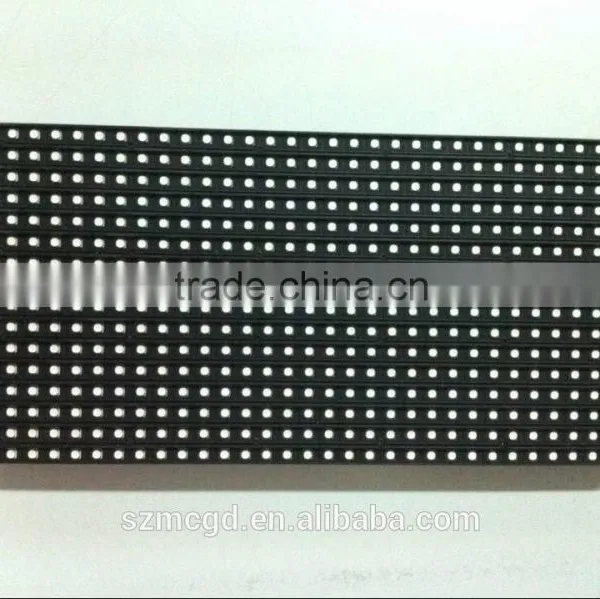

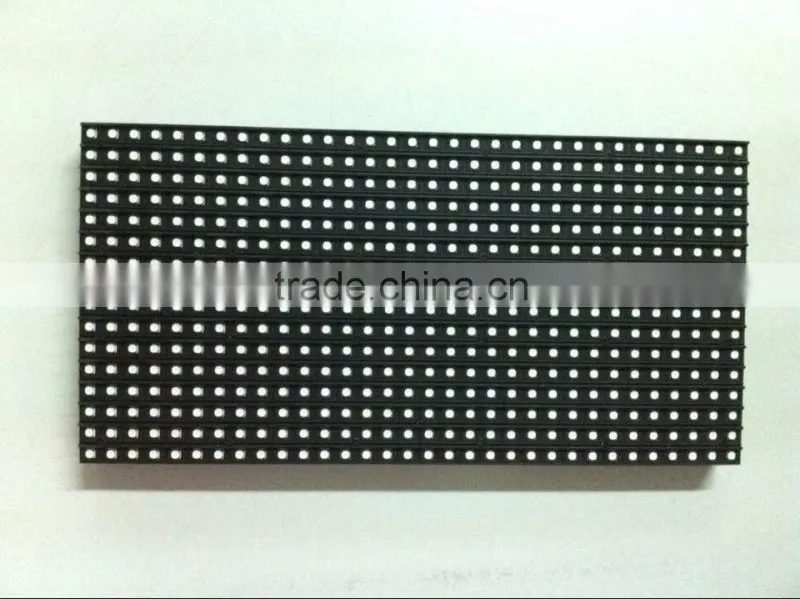

Product show

Outdoor SMD3535 RGB p6 Led panel waterproofOutdoor SMD3535 RGB p6 Led panel waterproofOutdoor SMD3535 RGB p6 Led panel waterproof





Application



LED display in Bus station&Metro station



Information display in bank,super-market,school,hospital and other place.



Automotive advertising screen.



Information screen in electrically operated gate.



Specification



Item

Technical parameter

Unit Panel

Dimension

(W)192mmX 192mm(H)

Pixel pitch

6mm

Pixel Density

27777pixels/M2

Pixel configuration

1R1G1B

LED specification

SMD3535

Pixel resolution

(W)32X32(H)

Average power

13W

Panel weight

0.65KG

Cabinet & Bracket

Bracket size

768mmX768mmX80mm

Quantity of panel

4X4=16PCS

Weight for bracket

1.5KG/ M2

Best viewing distance

120/90

Best viewing angle

1-15M

Working temperature

-20-+65

Panel power supply

5V40A

Screen power supply

AC220V—AC250V

Max power

1200W/ M2

Average power

550W/ M2

Technical parameter

Driving device

Constant current drive

Drive type

1/8 Scanning

Refresh frequency

300HZ/S

Display color

4096X4096X4096

Brightness

6500CD/ M2

Life span

100000 Hours

Communication distance

<100meters



Manufacturing process



IQC->Fix Pin->QC&Test->Die bonding->Bake->Check->Wire bonding->Check->Pretest&check->Pad pasting->Pouring sealant->Install PCB->Vacuumize->Check->Bake->Check->Test&Check->Stamped->Reliability test->Pakaging&Delivery













Contact us for more special offer and good service!

Welcome to visit our factory!
