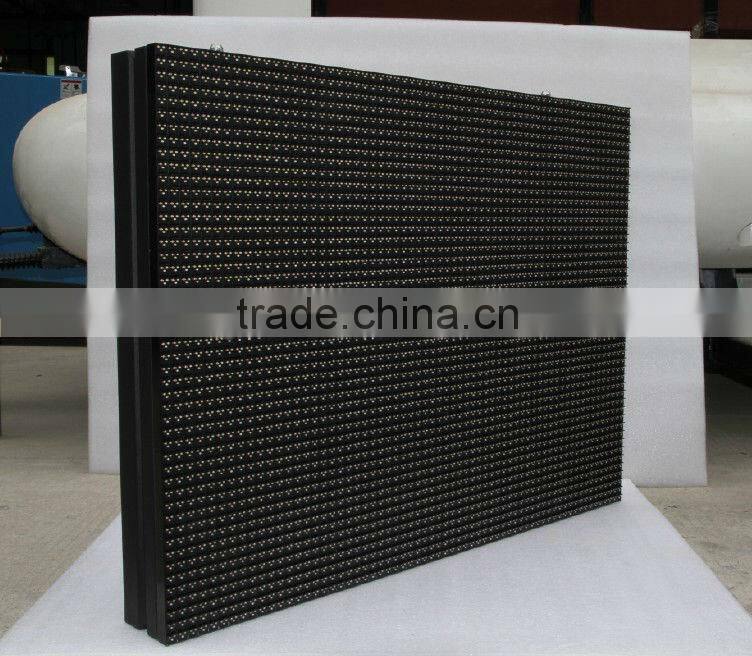

P12.5 Truck Mobile Rgb Led Display

P12.5 Truck Mobile Rgb Led Display photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MC
Model Number:
P12.5
Payment & Shipping
Payment Methods:
Port of Shipment:
shekou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name MC
Model Number P12.5
Usage Outdoor
Tube Chip Color Full Color
Display Function Animation
Pixels Other, 12.5mm

Specifications

P12.5 indoor RGB display DIP346
1.dimension:200*200mm
2.pixel density:6400/sqm
3.drive type:1/4 scanning

P12.5 1R1PG1B OUTDOOR MODULE





Item

Technical parameter





Unit module

Dimension

(W)200mm*200mm(H)

Pixel pitch

12.5mm

Pixel Density

6400/ M2

Pixel configuration

1R1G1B

DIP

346

Pixel resolution

(W)16*16(H)

Average power

25W

Module weight

0.90KG







Cabinet



Dimension

1000mm*800mm*80mm

Quantity of module

5*4=20PCS

Weight of cabinet

40KG/ M2

Best viewing distance

110/90

Best viewing angle

13-50M

Working temperature

-20-+65

Module power supply

5V40A

Cabinet power supply

AC220V—AC250V

Max power

1000W/ M2

Average power

500W/ M2



Technical parameter

Driving device

16126 Constant current drive

Drive type

1/4 Scanning

Refresh frequency

300HZ/S

Display color

4096*4096*4096

Brightness

8000mcd/ M2

Life span

10 100000Hours

Communication distance

100 <100M







Knowledge of led display



Pixel Pitch is the distance between neighboring pixels.

Pixel Density is the quantity of pixels per square meter.

LED QTY is the quantity of LED lamps per square.

Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.

Module resolution is the number of pixels per module.



Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.



Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.



Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.





Why choose P12.5 truck mobile rgb led displayled ?



We specialized in LED tube encapsulation for 8 years. The manufacturer and wholesaler for led tube,led module,led cabinet and led display. we make LED tube or LED module ourselves,We can control the quality and save the cost.



welcome to visit our factory!



P12.5 truck mobile rgb led displayP12.5 truck mobile rgb led displayP12.5 truck mobile rgb led displayP12.5 truck mobile rgb led displayP12.5 truck mobile rgb led display
