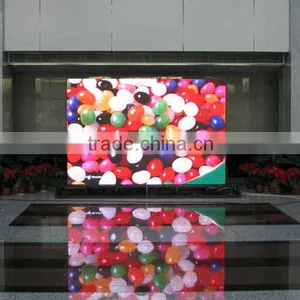

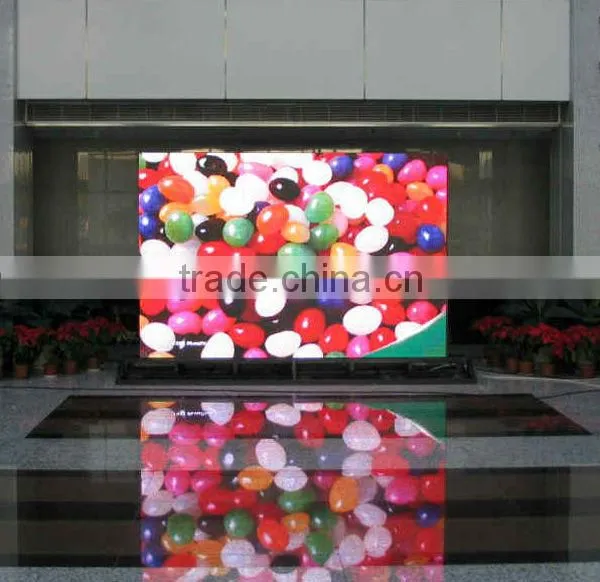

P12.5mm super bright outdoor led display screen

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port shekou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	MC
Model Number	P12.5	Usage	Outdoor
Tube Chip Color	Full Color	Display Function	Animation
Pixels	Other, 12.5mm

Product Description

Specifications

P12.5 indoor RGB display DIP346
1.dimension:200*200mm
2.pixel density:6400/sqm
3.drive type:1/4 scanning

P12.5 1R1PG1B OUTDOOR MODULE

Item	Technical parameter
Unit module	Dimension	(W)200mm*200mm(H)
	Pixel pitch	12.5mm
	Pixel Density	6400/ M²
	Pixel configuration	1R1G1B
	DIP	346
	Pixel resolution	(W)16*16(H)
	Average power	25W
	Module weight	0.90KG
Cabinet	Dimension	1000mm800mm80mm
	Quantity of module	5*4=20PCS
	Weight of cabinet	40KG/ M²
	Best viewing distance	110/90
	Best viewing angle	13-50M
	Working temperature	-20-+65
	Module power supply	5V40A
	Cabinet power supply	AC220V—AC250V
	Max power	1000W/ M²
	Average power	500W/ M²
Technical parameter	Driving device	16126 Constant current drive
	Drive type	1/4 Scanning
	Refresh frequency	300HZ/S
	Display color	409640964096
	Brightness	8000mcd/ M²
	Life span	10 100000Hours
	Communication distance	100 <100M

Knowledge of led display

Pixel Pitch is the distance between neighboring pixels.

Pixel Density is the quantity of pixels per square meter.

LED QTY is the quantity of LED lamps per square.

Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.

Module resolution is the number of pixels per module.

Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.

Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.

Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.

Why choose led ?

We specialized in LED tube encapsulation for 8 years. The manufacturer and wholesaler for led tube,led module,led cabinet and led display. we make LED tube or LED module ourselves,We can control the quality and save the cost.

welcome to visit our factory!
