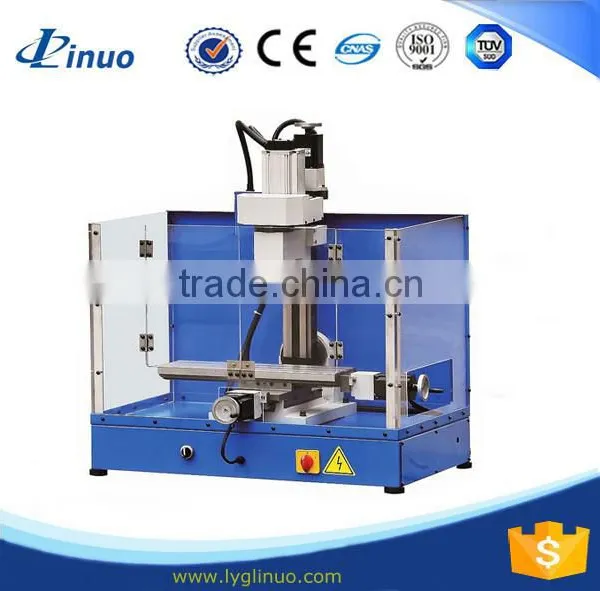

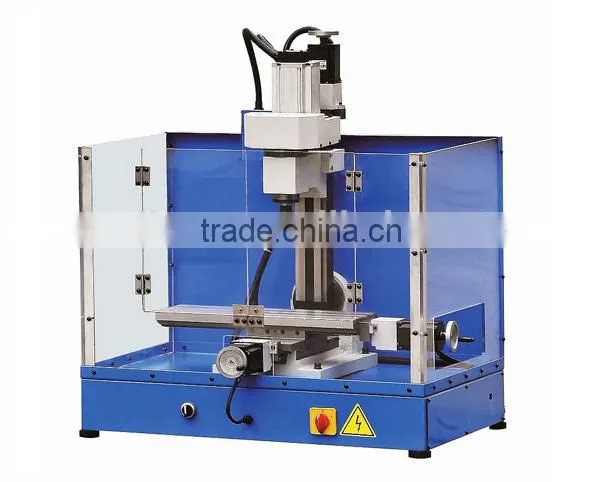

PX1 mini CNC Milling Machine for sale
Introduction:
PX1 - SIEG is a precision milling machine together with CNC and manual. Transparent cover provides a good
visual effect. The control system based on PC, via Ethernet it can connect the computer directly. Convenient
installation and operation is simple, it is very suitable for small parts processing, and school teaching
demonstration and training. At the same time, remove the CNC system, PX1 completely can do a single
manual machine tools. Use the whole machine tools to open the door for outage, the design is safe and
reasonable and the cost is low.
Specification:
PX1 | ||
TABLE |
Table size |
400×145mm |
T slot (amount×width×distance) |
3×8mm×45mm |
|
Max. load |
20kg |
|
TRAVEL |
X travel |
230mm |
Y travel |
120mm |
|
Z travel |
230mm |
|
Spindle nose to table |
45mm-275mm |
|
Spindle center to column |
140mm |
|
SPINDLE |
Spindle taper |
ER16 |
Spindle motor |
500W |
|
Spindle speed |
300-20000r/min |
|
FEED |
The max moving speed |
300mm/min |
The max feeding speed |
200mm/min |
|
Power of X/Y/Z |
1.35Nm |
|
ACCURACY |
Positioning accuracy |
0.02mm |
Repeatability accuracy |
0.02mm |
|
OTHERS |
Power |
230V/120V |
Weight(NW/GW) |
90/120kg |
|
Overall dimension |
560×680×800mm |
|
Packing size |
660×780×900mm |
|
Advantages:
1.Pre-install a hand wheel
2.CNC combined manually
3.The numerical control system based on PC platform, high reliability, easy operation
4.Connect with computer via Ethernet, simple operation
5.G code can be compatible with FANUC
6.Safe and reliable shield shell
7.Brushless motor with high torque
8.220V unidirectional AC
9.Comply with the European CE safety certification
10.High quality safety electrical components and quick plug
11.Workbench size is 400x145mm

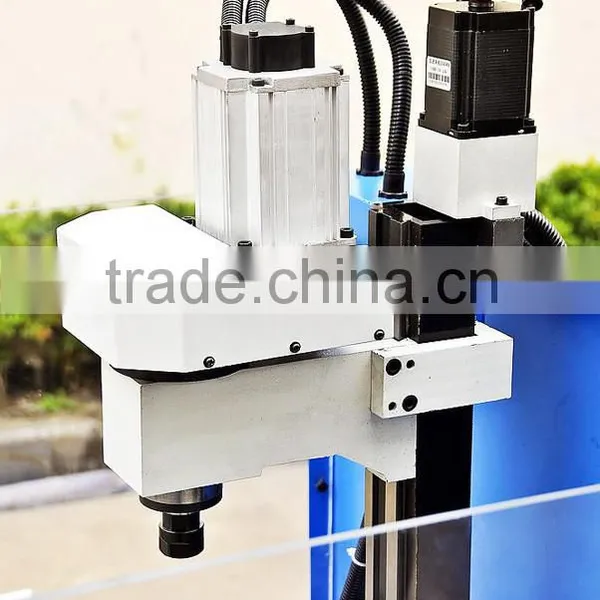

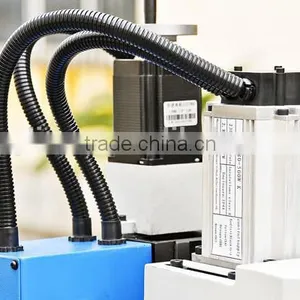

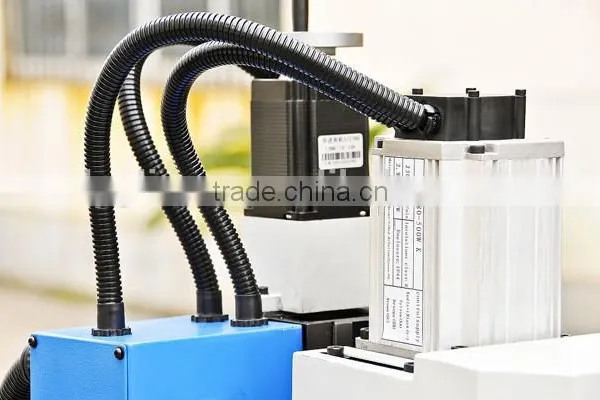

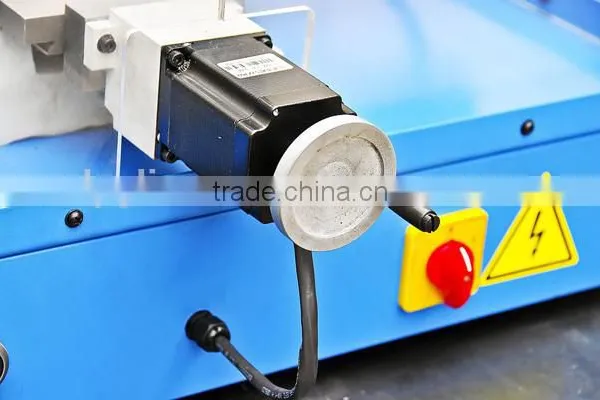

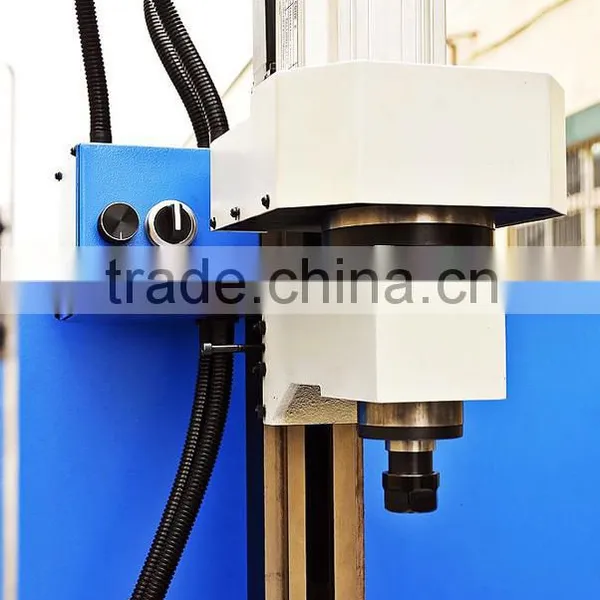

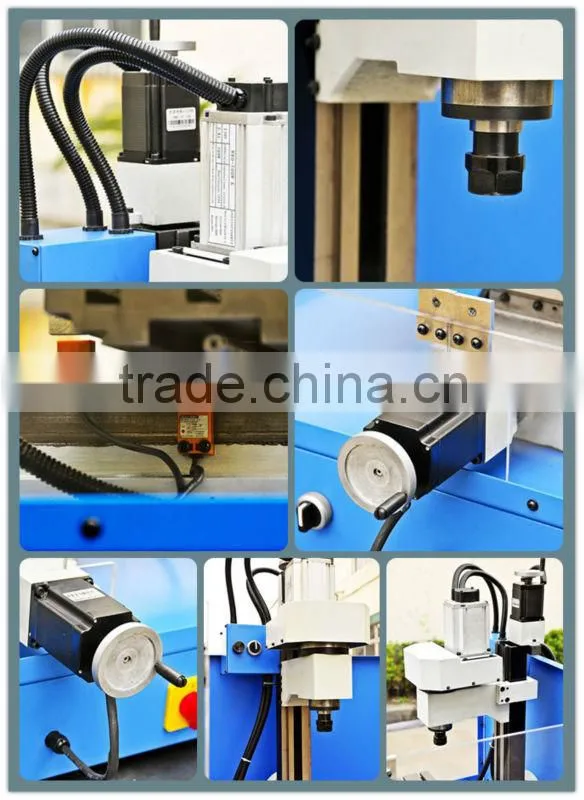

Detailed Drawing:
