Specifications
1.XK6330 china cnc milling machine factory2.KND,HD500,GSK CNC system.
3.economic modle.
4. lifting table

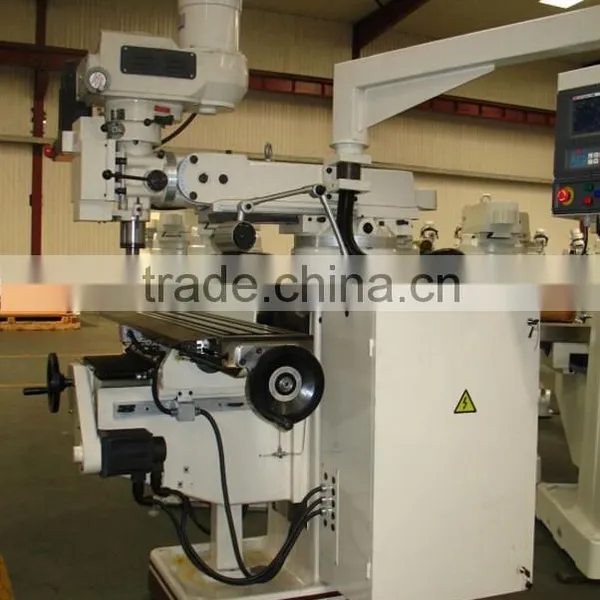

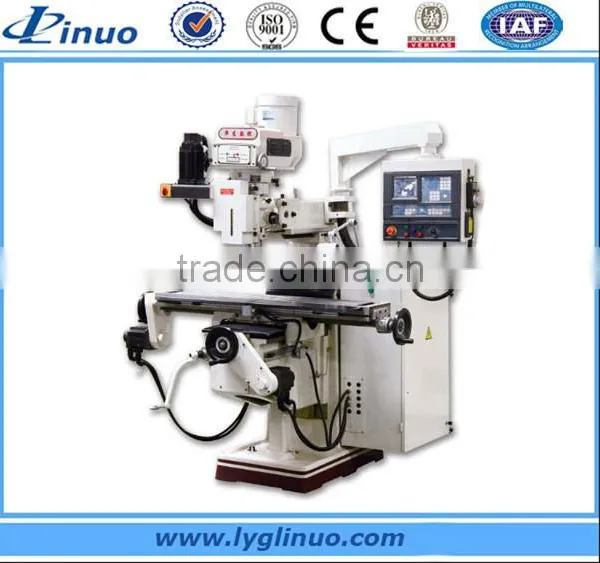

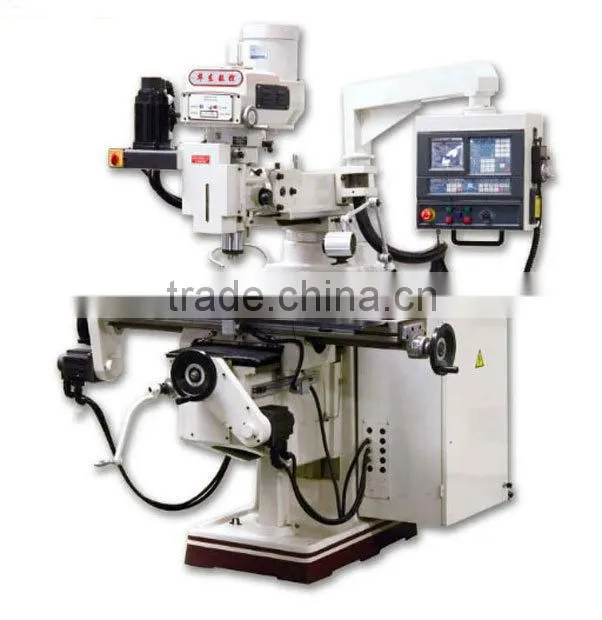

XK6330 china cnc milling machine factory
Item |
set |
XK6323A |
XK6323B |
XK6325 |
XK6325A |
XK6325B |
XK6325C |
XK6325D |
XK6330 |
XK6330A |
||
Table size |
mm |
230x1067 |
254x1270 |
305x1370 |
||||||||
230x1246 |
254x1370 |
305x1500 |
||||||||||
Tslots |
|
3x16 |
||||||||||
Table loading |
kg |
200 |
280 |
350 |
||||||||
X axis(table longitudinal movel)travel |
|
550 |
750 |
800 |
||||||||
|
740 |
850 |
900 |
|||||||||
Y axis(table cross movel)travel |
|
300 |
400 |
380 |
380 |
400 |
400 |
360 |
360 |
|||
Z axis(Quillmovel)travel |
|
|
||||||||||
X/Y/Z axis rapid feed |
mm/ min |
5000mm/min |
||||||||||
X/Y/Z axis servo motor |
Kw |
1 |
||||||||||
Knee verical travel |
mm |
380 |
400 |
410 |
||||||||
Ram travel |
mm |
315 |
465 |
500 |
||||||||
Distance from spindle table |
mm |
0-380 |
0-400 |
0-410 |
||||||||
Milling head |
Spindle speed |
Standard:16steps |
rpm |
50HZ:60-4500/60HZ:80-5440 |
||||||||
Optional:Varable |
65-4200 |
60-3750 |
||||||||||
Spindle taper |
|
Standard:R8/Optional:ISO40 |
ISO40 |
|||||||||
Motor power |
HP |
3HP |
5HP |
|||||||||
Head rotating |
Swiveling |
|
90° |
90° |
90° |
90° |
90° |
90° |
90° |
90° |
90° |
|
Tilting |
|
45°45° |
45° |
45° |
45° |
45° |
- |
45° |
45° |
- |
||
CNC |
|
KND/HD500/GSK |
||||||||||
Package size |
cm |
165x190x200 |
190x200x223 |
200x200x225 |
||||||||
G.W |
kg |
1200 |
1500 |
1700 |
1900 |
|||||||
Standard accessories:
1.Draw bar
2.Tool box and tools
3. Woeking lamp
4.Elector lubricating pump
5.Hung up control panel
6.Cooling system
7.Oil collecting plate
8.Plastic splashing guard
Optional accessories:
1.Air draw bar
2.Machine vise
3.Universal clamping kits
4.Collets and chuck
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
