XN6330H China Cheap Horizontal Vertical Milling Machine
US$ 7,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LINUO
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X6330H Universal Vertical Horizontal Milling Machine SuppliersUS$ 7,000 - 10,000MOQ: 1 Set -
S-1354B Bed Type Cnc Milling MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
XK6330 China Cnc Milling Machine FactoryUS$ 9,000 - 13,000MOQ: 1 Set
-
XS6330H Vertical and Horizontal Milling Machine ManufactureUS$ 7,000 - 10,000MOQ: 1 Set
-
XK6325 Universal Turret Cnc Milling MachineUS$ 9,000 - 13,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
LINUO
Model Number
XN6330H
Type
Vertical
CNC or Not
Normal
Voltage
380V
Power(W)
5HP
Dimension(L*W*H)
180*160*220mm
Weight
1680kg
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas

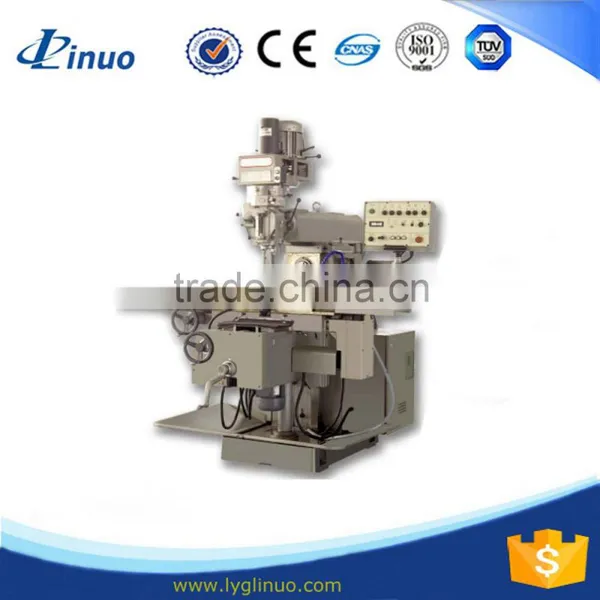

XN6330H china cheap horizontal vertical milling machine
Parameters of our specification of vertical miling machine:
| Model | Unit | XN6330H | X6330H | XS6330H | |||
| Table size | mm | 300*1300 | 300*1300 | 300*1500 | 300*1370 | 300*1500 | |
| Table longitudinal travel (manual) | mm | 845 | 845 | 1000 | 880 | 1000 | |
| Table cross travel (manual) | mm | 385 | 380 | ||||
| Knee vertical travel (manual) | mm | 435 | |||||
| Table longitudinal feed rate | mm/min | 0-3500 servo motor | ------------ | ||||
| Table cross feed rate | mm/min | ------------ | |||||
| Knee rapid speed | mm/min | 900 | |||||
| vertical spindle | Motor power | hp | 5hp | standard:3hp optional:5hp | |||
| Speed | rpm | standard: 16 steps: 50HZ:65-4500,60HZ:80-5440 Optional: variable speed:65-3750 | |||||
| Taper | ISO40 | standard:R8 optional:ISO40 | |||||
| Quill travel | mm | 127 | |||||
| Quill feed | mm/rev | 0.04/0.08/0.15 | |||||
| Head rotating | R/L 90° | R/L 90° B/F 45° | |||||
| Distance from spindle end to table surface | mm | 115-545 | |||||
| Horizontal spindle | Motor power | hp | 5hp | ||||
| Speed | rpm | 50HZ:45/80/165/260/500/980 60HZ:55/100/200/315/600/1180 | |||||
| Taper | ISO40 | ||||||
| Distance from spindle end to table surface | mm | -430 | |||||
| Distance from spindle center to ram | mm | 183 | |||||
| Ram travel | mm | 480 | |||||
| Ram rotating | 360° | ||||||
| Net weight | kg | 1900 | 1900 | 1950 | 1680 | 1730 | |
| Package size L*W*H | cm | 180*150*220 | 180*180*220 | 180*160*220 | 180*180*220 | ||
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
