Specifications
1.S-1354B bed type cnc milling machine2.GSK983,DASEN-3i,Fanuc CNC system.
3.economic modle.
4. cheap price

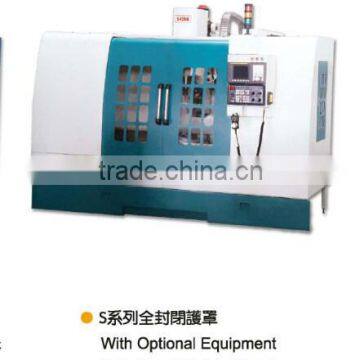

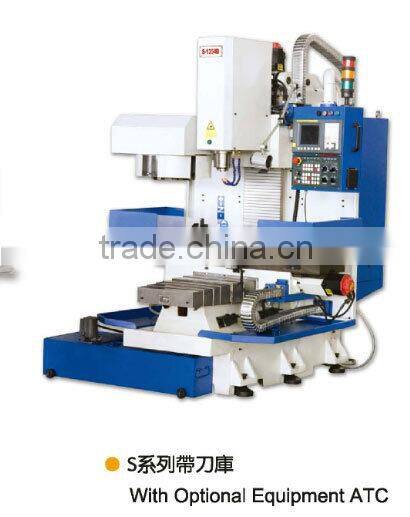

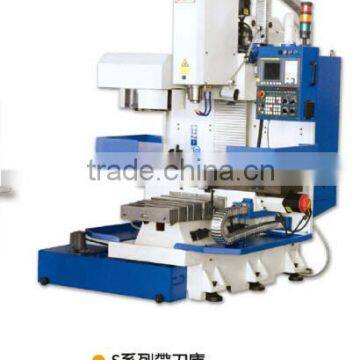

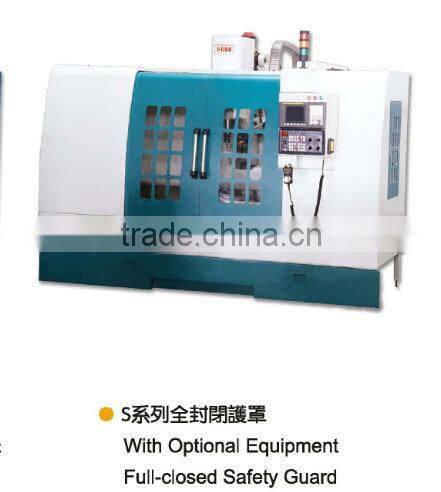

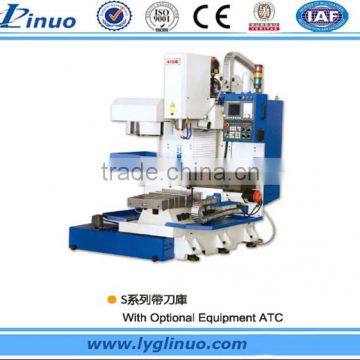

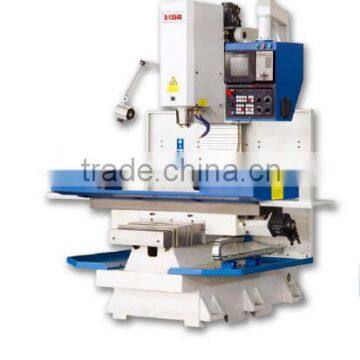

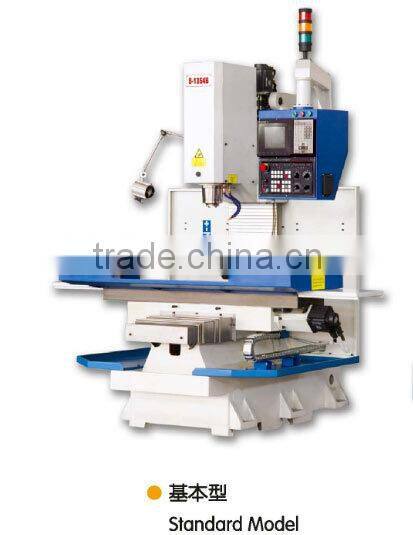

S-1354B bed type cnc milling machine
CNC milling machine
Model |
Unit |
S-1354B |
S-1654 |
S-2063 |
S-2063A |
S-2473 |
|
Table |
able size |
mm*mm |
1370*330 |
1370*406 |
1600*510 |
1600*510 |
1854*610 |
Table loading capacity |
kg |
400 |
800 |
1200 |
1200 |
1500 |
|
T-slots |
mm |
16*3 |
16*5 |
18*5 |
18*5 |
18*5 |
|
Travel |
X-axis |
mm |
800 |
1000 |
1200 |
1200 |
1500 |
Y-axis |
mm |
450 |
480 |
700 |
800 |
700 |
|
Z-axis |
mm |
480 |
600 |
600 |
740 |
700 |
|
Max move speed |
mm/min |
8000 |
8000 |
10000 |
10000 |
10000 |
|
Max feed speed |
mm/min |
3000 |
3000 |
4000 |
4000 |
4000 |
|
Spindle |
Spindle speed |
Rpm/min |
40-6000 |
||||
Spindle nose |
|
BT40 |
BT40 |
BT40/BT50 |
BT40/BT50 |
BT40/BT50 |
|
Spindle motor |
kw |
5.5 |
7.5 |
7.5 |
7.5 |
7.5 |
|
Servo motor |
kw |
X/Y:1.0/Z:1.5 |
X/Y/Z:1.5 |
X/Y/Z:2.0 |
X/Y/Z:2.0 |
X/Y/Z:2.0 |
|
Spindle quill diameter |
mm |
Φ120 |
Φ150 |
Φ150/Φ160 |
Φ150/Φ160 |
Φ150/Φ160 |
|
Distance from spindle to column surface |
mm |
160-640 |
20-620 |
60-660 |
60-800 |
80-780 |
|
Ball screws |
X-axis |
mm |
Φ32*5 P4 |
Φ32*5 P4 |
Φ40*10 P4 |
Φ40*10 P4 |
Φ40*10 P4 |
Y-axis |
mm |
Φ32*5 P4 |
Φ40*5 P4 |
Φ40*10 P4 |
Φ40*10 P4 |
Φ40*10 P4 |
|
Z-axis |
mm |
Φ32*5 P4 |
Φ40*5 P4 |
Φ40*10 P4 |
Φ40*10 P4 |
Φ40*10 P4 |
|
Three axis accuracy |
Positioning accuracy |
mm |
±0.015 |
||||
Repeatability |
mm |
±0.008 |
|||||
Packing size |
Servi-closure guard |
mm |
2250*2280*2450 |
2500*2280*2650 |
2900*2950*2800 |
2900*3150*2900 |
2900*3150*2900 |
Full-closure guard |
mm |
2950*2280*2450 |
3200*2280*2650 |
4500*2750*2800 |
|
|
|
Machine weight |
Servi-closure guard |
mm |
2600 |
3800 |
5000 |
5400 |
6000 |
Full-closure guard |
mm |
3400 |
4720 |
6400 |
|
|
|
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
