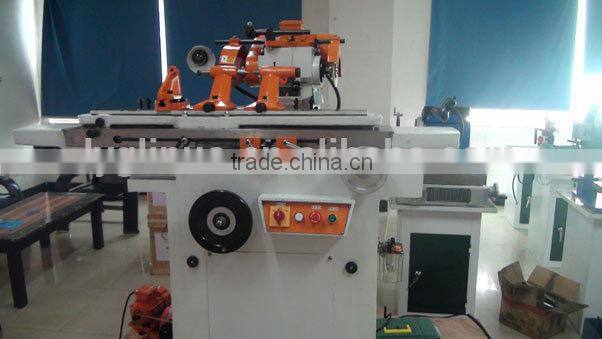

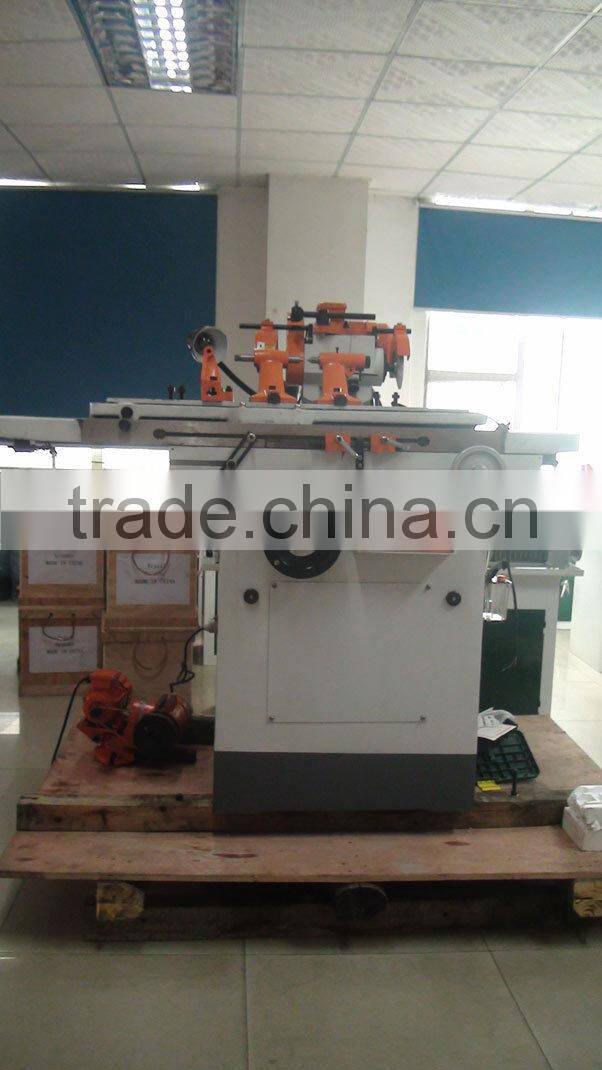

MA6025Q high precision drill milling cutter grinding machine

FOB Price

USD $4,000 - $7,500 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Universal
CNC or Not	Normal	Max. Grinding Diameter	16mm
Max. Grinding Length	100mm	Place of Origin	Chongqing, China
Brand Name	LINUO	Model Number	MA6025Q
Voltage	380V	Power(W)	3.15kw
Dimension(LWH)	1790x1520x 1640mm	Weight	1250kg
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

1.MA6025Q drill,milling cutter grinding machine
2.high quality
3.include all accessories
petitive price

MA6025Q drill milling cutter grinding machine

1.The series machine are specially suitable for sharpening tools in HSS, tungsten carbide and other materials, also for

cylindrical, surface, slot and profile grinding work.

2.By using additional attachments, you greatly extend the range of application of there machinery and can solve individual

machining problems, such as grinding of various hobs, for tools, spherica cutters, twist drills and steep taper reamers, etc.

3.The series machine wheelhead with two-dimensional setting , workhead stock swivels with double dir.,

4.And supplied with ISO-50 taper hole.

5.Worktable is supported in preloaded ball guide and can be driven by hand or by infinitely changing rate hydraulic.

MQ6025A Technical Data:

Max. swing dia. of workpiece	250mm
Max. distance between centers	650mm
Area of the operating table	940*135mm
Max. longitudinal travel of table	480mm
Max. swing angle of table	:±60degree
Max travel of wheel head cross wertical	230mm
Max. swing angle of wheel head in horizontal plane in vertical plane	360degree
Max. swing angle of wheel head in the longitudinal plane in vertical plane	30degree±15degree
The taper of the spindle end	MT NO.3
Main motor power	50Hz,0.75/1.1KW
The Speed of Grinding wheel	1400/2800RPM
The speed of Motor	3050/6095RMP
The Motor of Cylindrical grinding attachment	50Hz,0.12KW
The size of the machine	146011021240mm
The weight of the machine	1000kg

standard accessories:

Model	Description
1	Work head (main body of work head including turning base)
2	T-bolt for work head
3	Left-hand tailstock
4	T-bolt for left-hand tailstock
5	T-bolt for right-hand tailstock
6	Right-hand tailstock
7	Draw-in bolt for work head
8	Draw-in bolt washer
9	Double-end wrench (17x21)
10	Nut wrench
11	Cross-screw driver
12	Wrench bars for hexagonal holes
13	Center gauge (including center height indicating piece)
14	T-wrench for grinding wheel sleeve
15	Sleeve extracting bar
16	Collet wrench
17	Pin wrench
