Specifications
1.M818A flywheel grinding machine2.ISO9001:2000 certificate
3.Adopt the V-type guide

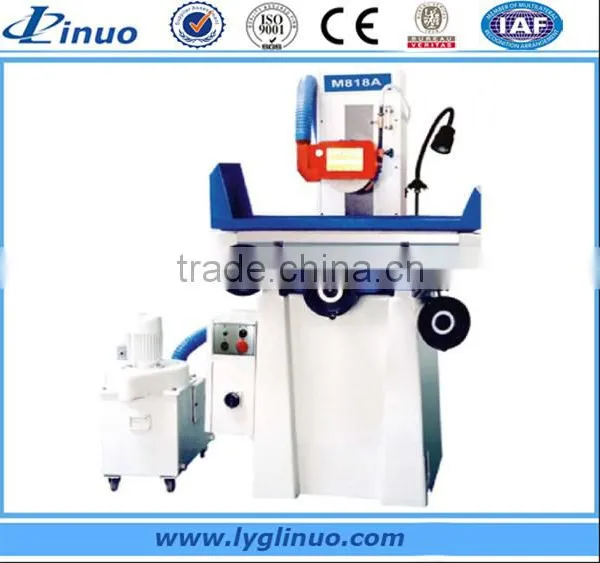

M818A flywheel grinding machine
Features:
l The machine can grind various of surfaces and complicated profiles.All the three axis feed can be finished manually,and it is especially suitable for the conditions which need no power feed.
l The machine can grind work pieces which are made of steel,casting irons,nonferrous material. It also can be applied to grind nonmetal,such as porcelain,stone ect.The machine is used in machining workshop,repair workshop and tools workshop.
l The machine adopts the design style of +saddle ,cross guideway is lined with TF wearable material,which makes the machine have good guidance quality and moves smoothly.
l The column adopts duoble wall structure which makes the column have good rigidity.(The column of SG250 adopts
steel guide-way,has higher rigidity and precision)
l Multiple labyrinth seal is adopted on spindle quill.It is waterproof and dustproof.
l 618A and M818A adopt manual oil pump to lubricate all moveable parts centrally.SG200 and SG250 adopt
electromagnetic lubrication points forcibly,and they posses smooth and stable movement..
l The machine has high rigidity, samll thermal distortion,smooth movement ,little noise ,high precision, convenient maintenance.
Model |
Unit |
M618A |
M818A |
|
Max. width to be ground |
mm |
165 |
220 |
|
Max. length to be ground |
mm |
470 |
||
Max height to be ground |
mm |
350 |
||
Table size |
mm |
155x460 |
210x450 |
|
|
Permanent magnetic chuck size (optional) |
mm |
150x400 |
200x400 |
|
Max. longitudinal travel |
mm |
500 |
500 |
|
Max cross travel |
mm |
185 |
240 |
|
|
Max. distance from spindle center to table surface |
mm |
450 |
||
Feed of vertical hand wheel |
Per rev |
mm |
1 |
|
Per div |
mm |
0.005 |
||
Grinding wheel size(ODxWxID) |
mm |
200x13x31.75 |
||
Spindle speed |
r/min |
3450(60HZ),2850(50HZ) |
||
Power of spindle speed |
kW |
1.5 |
||
|
Max. load capacity (include permanent magnetic chuck) |
kg |
97 |
128 |
|
Machine weight |
kg |
720 |
800 |
|
Machine apperance size(LxWxH) |
mm |
1330x1090x1675 |
1330x1150x1675 |
|
Packing dimension(LxWxH) |
mm |
1340x1120x1930 |
1400x1120x1985 |
|

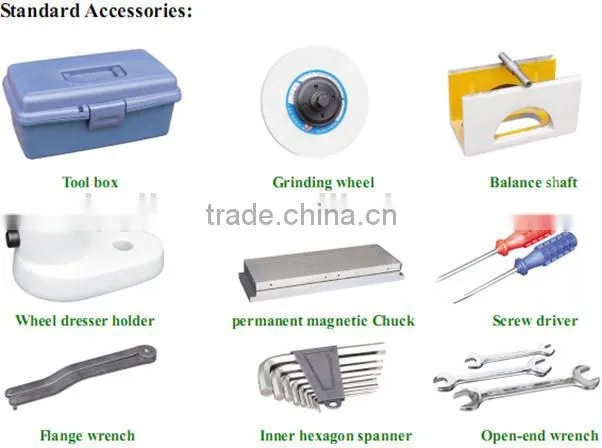

standard accessories:Coolant tank, Balancing stand, Balancing arbor, Wheel flange, Wheel extractor, Leveling wedge and bolt, Manual oil pump, Tool box and tools, Standard grinding wheel, Working lamp, Wheel dresser stand (without diamond pen).
Optional accessories: Liner scale, Permanent magnetic chuck, Parallel wheel dresser, Coolant tank with dust collector, Diamond pen.
