Specifications
1.MM2180 Inside grinding machine2.Cross liner guideway more efficient
3.easy operation

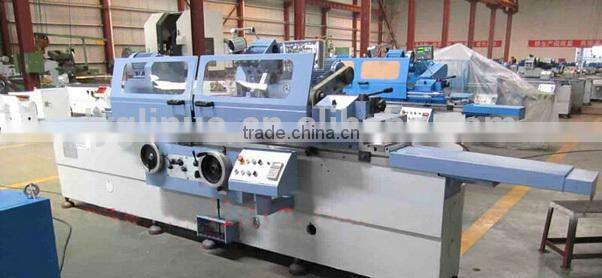

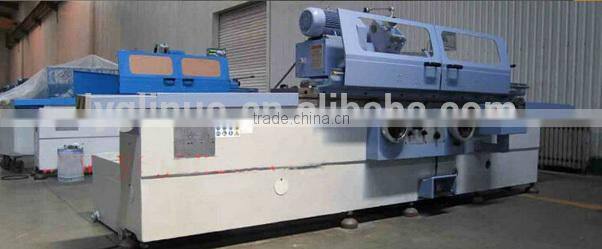

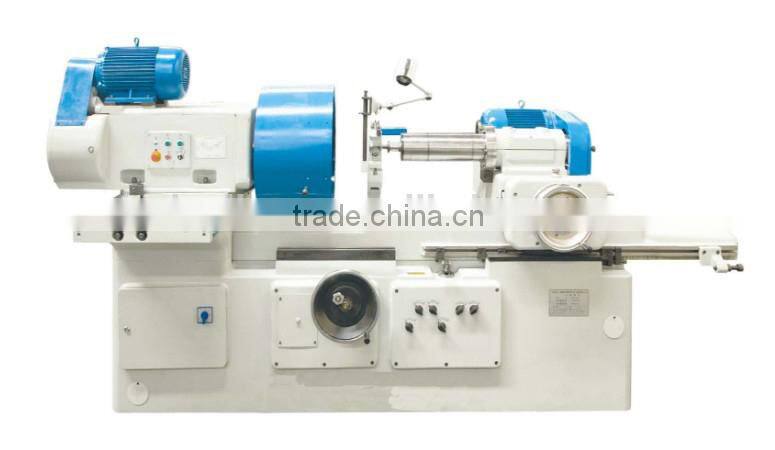

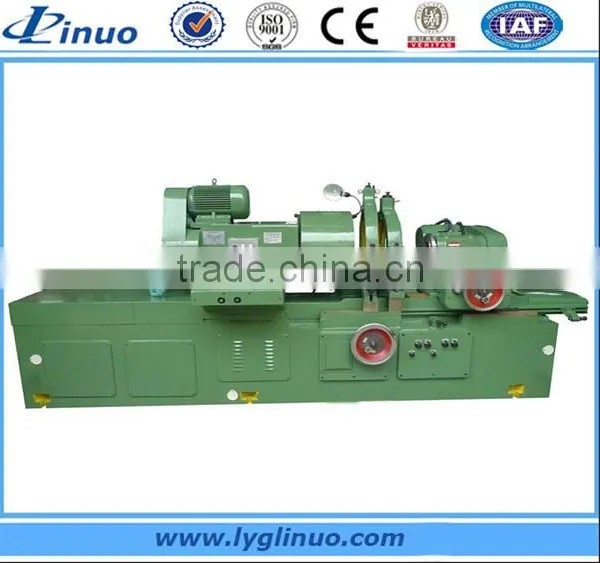

MM2180 Inside grinding machine
Features:
* This machine is mainly used for grinding cylindrical and conical hole.
* The spindle of the machine adopts hydrostatic and hydrodynamic bearing with high accuracy, good rigidity and long working life.
* The work table is driven by hydraulic or manual way. It can realize variable speed of grinding and dressing feed.
* The wheel can realize micro automatic feed or manual feed. Its dressing can be realized by the hydraulic handle.
* The wheel head cross movement of GP2120 can be driven by manual or hydraulic way. The feed driving system is composed by two feed driving chains. One is for grindling feed, the other is for adjusting and dressing feed. And they don't interfere each other. In the grinding process, the user neither need to make the hand wheel advance or retreat frequently nor remember the position of the dial. It makes the operation easy and convenient.
* The work head spindle, wheel spindle, hydraulic pump, coolant pump, hydrostatic and hydrodynamic oil pump are driven by the separate motors.
* The machine is suitable for processing single work piece in small amount with high accuracy. And this process is easy and convenient to handle.
The spindle of wheel head:
The wheel spindle adopts the hydrostatic and hydrodynamic bearing with high accuracy, wide speed range and long work life.
The accessories:
Coolant systrem, Wheel balancing bar, Wheel flange, Hydrostatic and hydrodynamic lubrication system, Three-jaw self-centering chuck, Machine wedge
Main specification:
| Specifcation | Unit | MM2120 | MM2150 | MM2180 | |
| The diameter of grinding inner hole | mm | Φ50-Φ200 | Φ150-Φ500 | Φ150-Φ800 | |
| The max. depth of the grinding hole | mm | 120 (while diameter of the grinding hole is 50-80) | 350 (while diameter of the grinding hole is 150-250), 450 (while diameter of the grinding hole is 250-500) | 350 (while diameter of the grinding hole is 150-250), 450 (while diameter of the grinding hole is 250-800) | |
| 150 (while diameter of the grinding hole is 80-150) | |||||
| 120 (while diameter of the grinding hole is 150-250) | |||||
| Max. swivel diameter of work piece | Within cover | mm | 400 | 510 | 510 |
| Without cover | mm | 600 | 725 | 1025 | |
| Max. travel of work table | mm | 600 | 725 | 725 | |
| Distance from spindle center to bottom of the bed | mm | 1210 | 1200 | 1350 | |
| Max. swivel angle of the work head | 30° | 20° (with three-jaw chuck) | 20° (with three-jaw chuck) | ||
| 15° (with face plate) | 15° (with face plate) | ||||
| Max. cross travel of the work head | mm | 250 | 250 | 250 | |
| Max. cross travel of the wheel | mm | 70 | 100 | 100 | |
| Work piece turning speed | r/min | 100-500 | 25-350 | 25-350 | |
| Wheel turning speed | r/min | 4000, 5000, 6000, 8000, 11000 | 1450, 4200 | 1450, 4200 | |
| Speed of table movement | Dressing speed | m/min | 0.1-2 | 0.2-1 | 0.2-1 |
| Grinding speed | m/min | 1.5-6 | 1-4 | 1-4 | |
| Work table movement as per round of the hand wheel | mm | 12 | 1.083 (connect with planet gears) | 1.083 (connect with planet gears) | |
| 16 (disconnect with planet gears) | 16 (disconnect with planet gears) | ||||
| Total power | kw | 9.3 | 10.5 | 10.5 | |
| Machine dimension | mm | 3100x2130x1320 | 3760x1660x1650 | 3760x1600x1800 | |
| Machine weight | kg | 3500 | 4500 | 4700 | |
Machining accuracy:
| Item | Unit | MM2120 | MM2150 | MM2180 |
| Roundness | μm | 3/1.5 | 3/1.5 | 3/1.5 |
| Cylindricity | μm | 5/3 | 5/3 | 5/3 |
| Roughness | μm | 0.40/0.16 | 0.40/0.16 | 0.40/0.16 |
