Specifications
Toilet Paper Making Machine enjoys high capacity: 180m/minute (2-4 tons/8 hours)Good price and good quality
2 years Guaranty

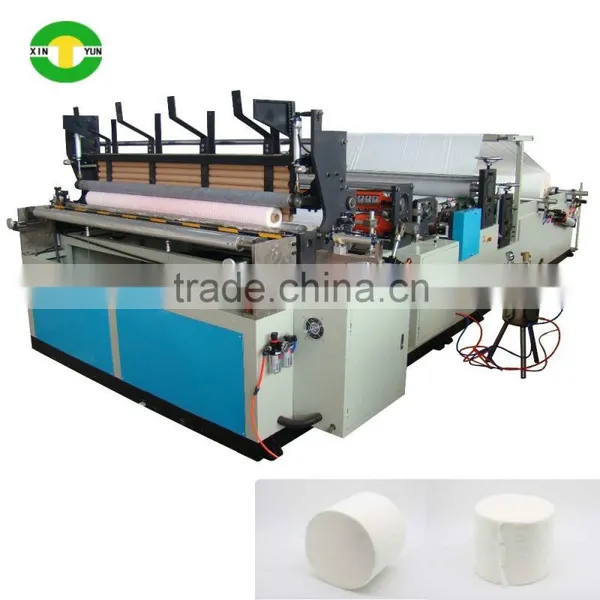

XY-TQ-B Full Automatic Both Core and Coreless Toilet Paper Roll Making Machine

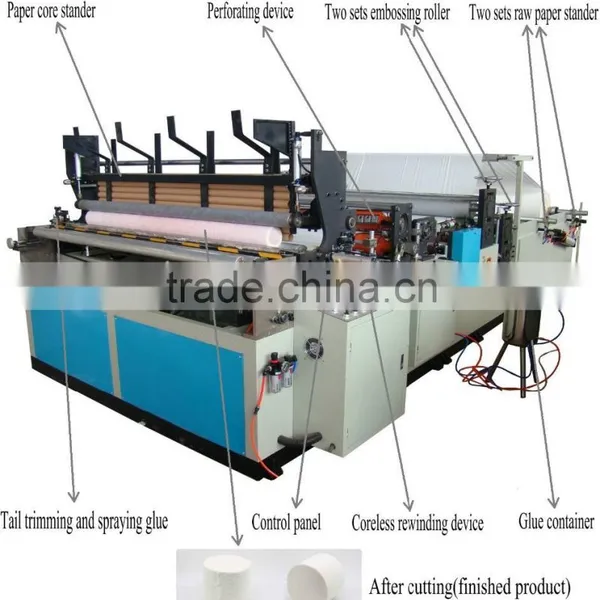

Description of the equipment:
XY-TQ-B this equipment is to perforate and rewind the parent roll raw paper into various sizes of small toilet paper roll according to the requested.It can process the small toilet roll with core or without core by switch. The finished product is neat, in good order and with equality tension.
Technical data:
Model |
1092B |
1575B |
2000B |
2200B |
2400B |
2600B |
2800B |
||
Width of Jumbo roll (mm) |
1200 |
1800 |
1950 |
2150 |
2350 |
2550 |
2750 |
||
Production speed |
150-200m/minute |
||||||||
Power of equipment |
4kw-10kw (380V 50Hz) |
||||||||
Maximum diameter of rewinding |
80-120 mm (adjustable) |
||||||||
Air pneumatic system(air compressor) |
3 Pa,the minimum pressure 5kg/cm2 pa (prepared by buyer) |
||||||||
Overall size(mm): |
6200X2750X1800 (LxWxH) |
||||||||
Weight |
About 4.2T |
||||||||
Chosen items (Should be ordered separately) | |||||||||
Embossment unit |
Single embossing, Double embossing, Edge embossing |
||||||||
Rewinding unit |
Non-core rewinding unit(coreless) |
||||||||
Other special request for machine is welcome | |||||||||
Video Link: /watch?v=KEMwqGJZK1o

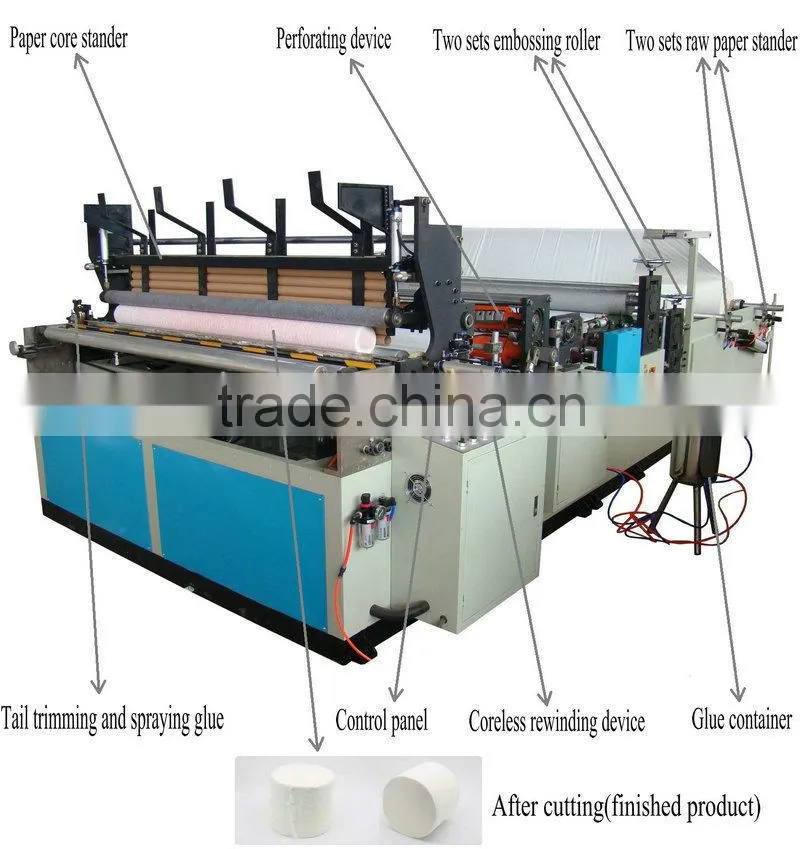

The production process is: Unreeling — Embossing — Perforating— Rewinding— Tail-gluing— Edge trimming--- Automatic core loading(without core rewinding).
All kinds of embossing pattern for toilet paper machine.
You may like

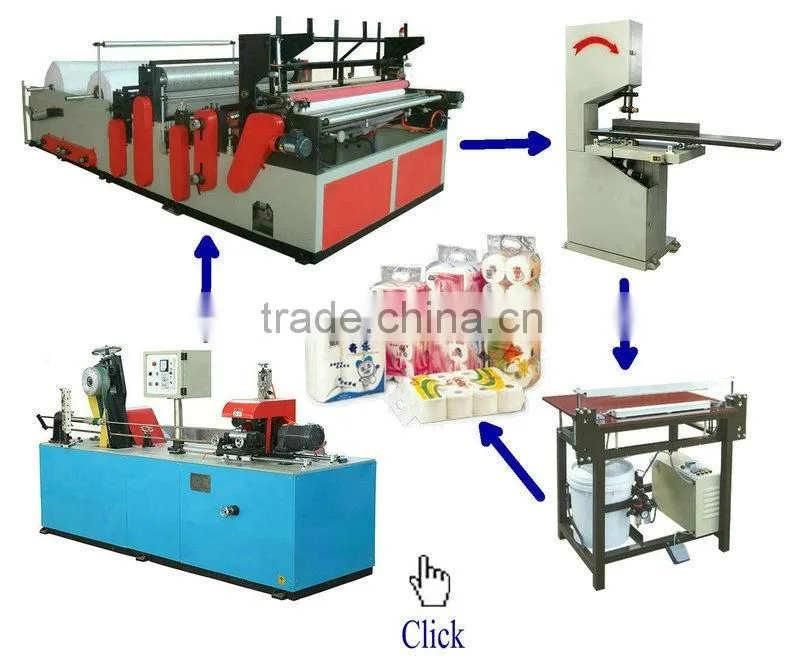

Semi-autoamtic and Full-automatic Small Toilet Paper Production Line
Welcome to click above picture to see the details of relative Tissue Paper Making Machine
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
If you need more information about these machine,please feel free to contact me!
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional manufacturer of: 1)Toilet Paper Machine 2)Facial Tissue Machine
3)Napkin Paper machine 4)Hand Towel Paper Machine 5)Pocket Tissue Machine
6)All kinds of Tissue Paper Cutting and Packing Machine and another Household Paper Equipments Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
