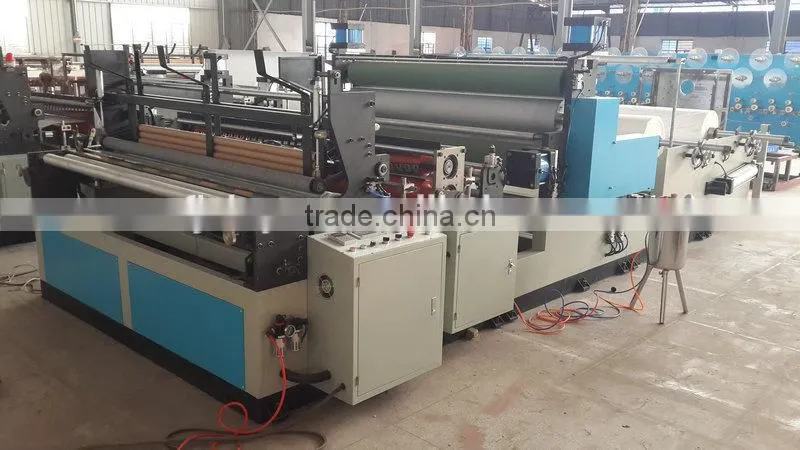

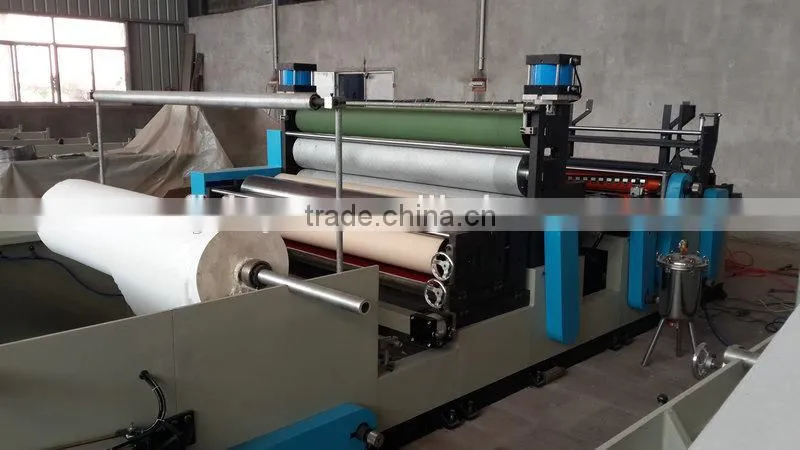

XY-TQ-C Full Automatic Color Embossing Toilet Paper Machine

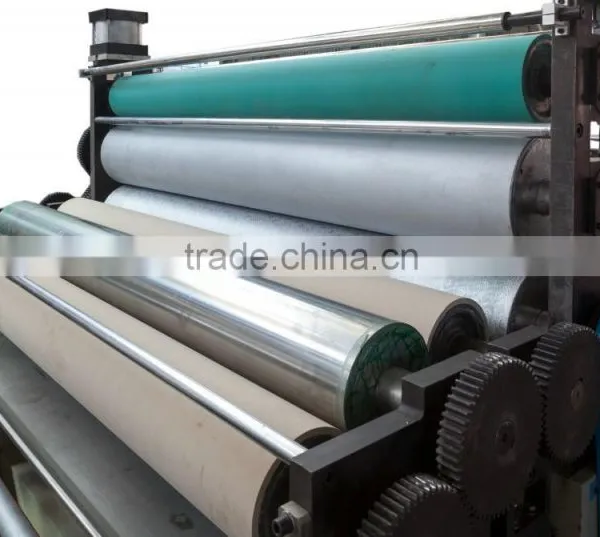

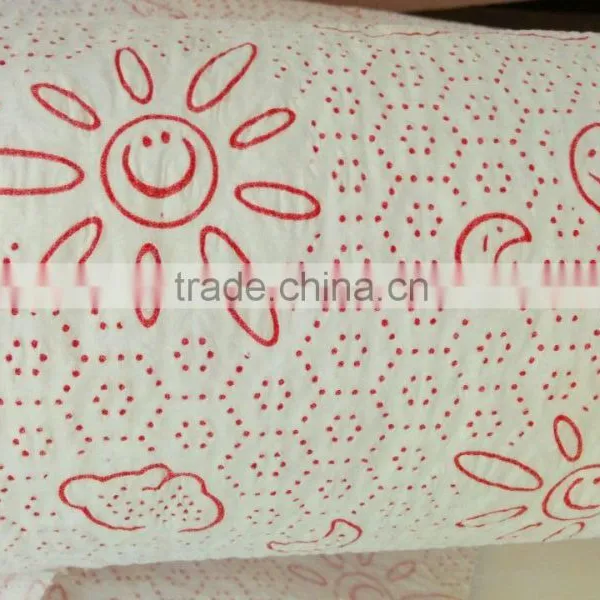

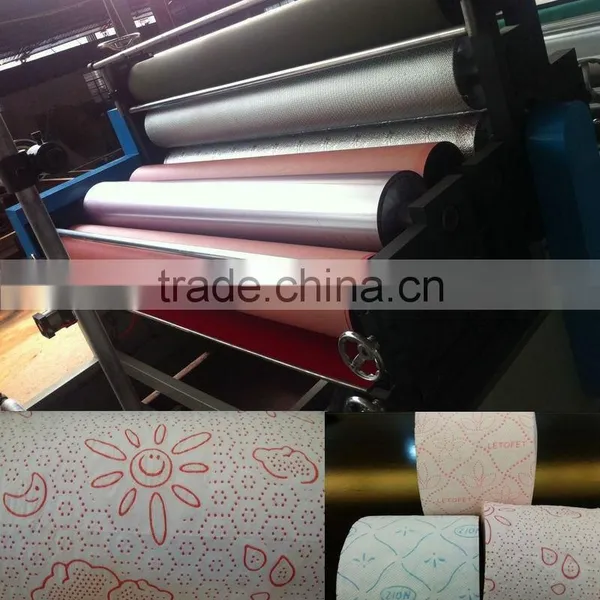

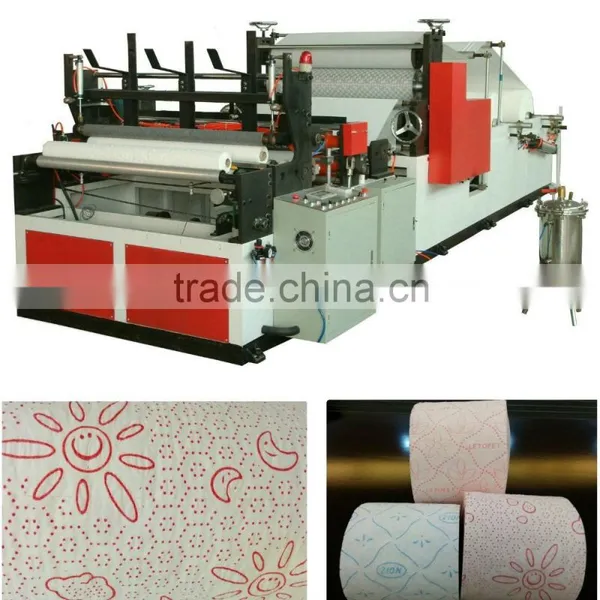

XY-TQ-C This equipment is to perforate and rewind the jumbo roll paper (raw paper) into various sizes of Kitchen towel roll paper according to the requested. We mix ink into the glue,and color embossing and glue laminating in the middle of two ply tissue paper.The finished small kitchen towel paper is neat, in good order and with equality tension.
Machine Model |
1092 |
1575 |
2000 |
2200 |
2400 |
2600 |
2800 |
Width of jumbo roll (mm) |
1200 |
1750 |
1950 |
2150 |
2350 |
2550 |
2750 |
Finished Products Diameter |
Φ90~120mm (Tightness can be adjustable) |
||||||
Finished Products Inner Diameter |
Φ40~55 mm |
||||||
Jumbo roll diameter (mm) |
Φ1200 (Other sizes please point out) |
||||||
Jumbo Roll Inner Diameter |
76.2 mm(other sizes please point out) |
||||||
Perforation distance (mm) |
4 blade,90~160mm; 2 blade,180~320mm; |
||||||
Production speed |
100-150 m/minute |
||||||
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) |
||||||
Power |
4kw-10kw (380V 50Hz) |
||||||
Overall size (L×W×H) |
6200X2750X1800 mm |
||||||
Weight of equipment |
About 4.2T |
||||||
Chosen items (Should be ordered separately) | |||||||
Embossment |
Single embossment, Double embossment, Edge embossment |
||||||
Jumbo roll stander |
1-3 plies |
||||||
Rewinding unit |
Non-core unit |
||||||
Printing unit |
1-3 color printing as per request |
||||||
Other special request for machine is welcome | |||||||
Video Link: https://youtu.be/IoOqd5FYqxU
https://youtu.be/39lRd6WbdVw

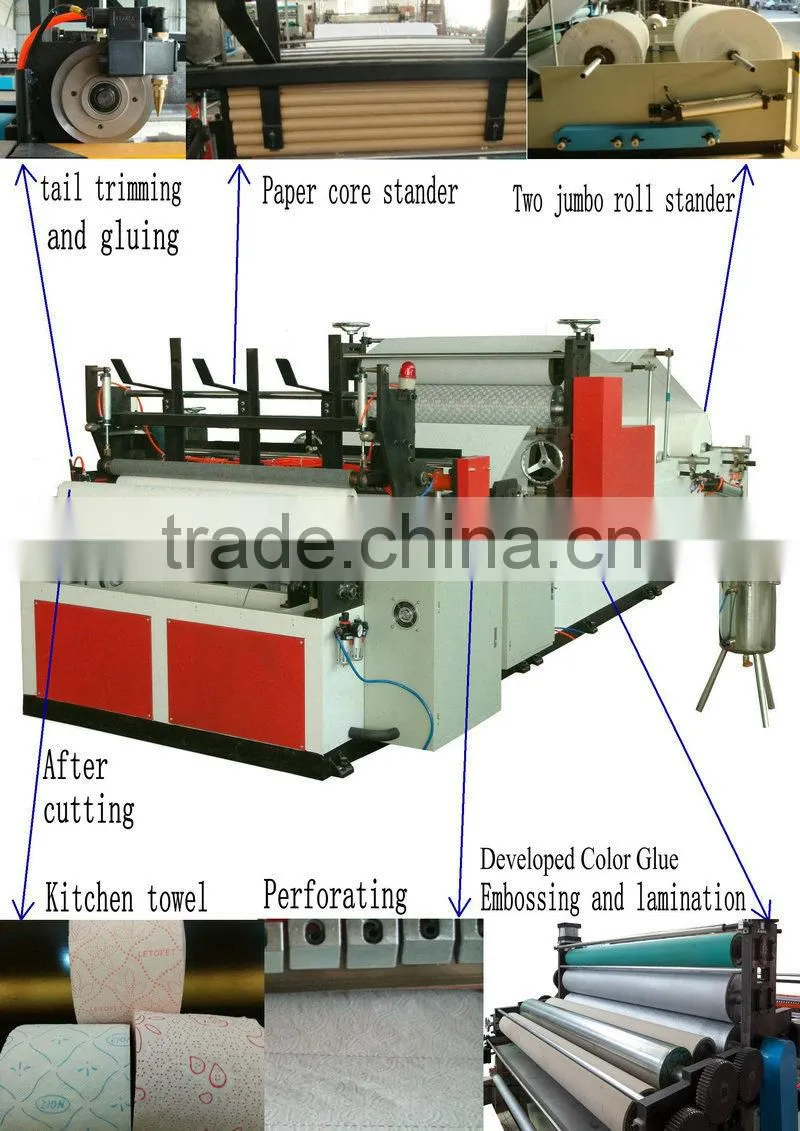

The production process is: Unreeling—Embossing—Color Glue Laminating—Perforating—Rewinding—Tail-gluing—Edge trimming—Automatic core loading.

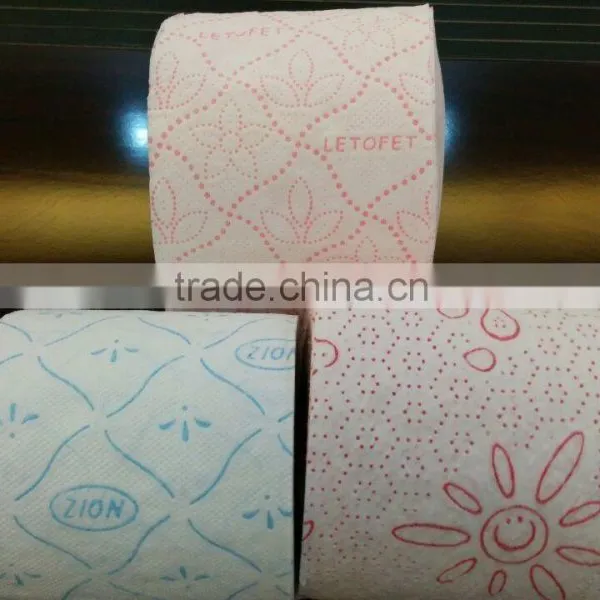

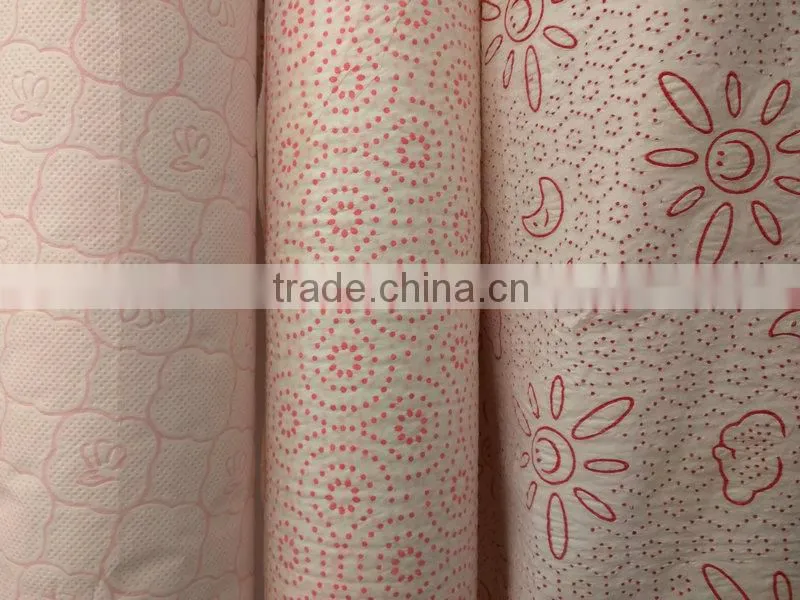

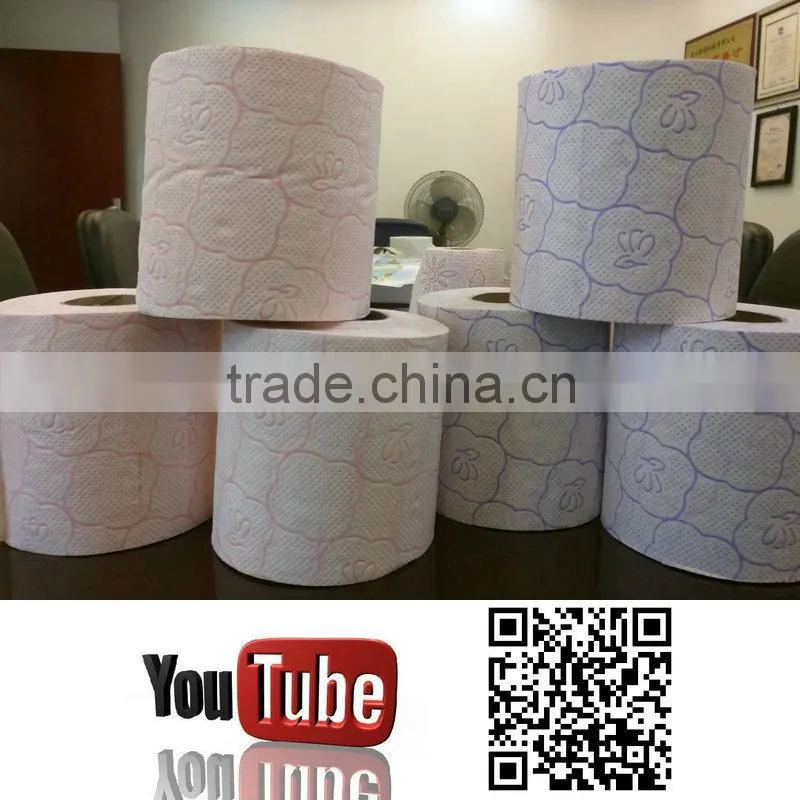

All kinds of embossing pattern for toilet paper machine.
How much is this machine?
1. Please tell me what's the width of jumbo roll(raw paper) will you process?
2. What's the daily capacity of machine do you need?
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about these machine,please feel free to contact me!
