XY-TQ-A-F Full Automatic Rewinding and Cuting Toilet Paper Production Line
XY-TQ-A-F Full-automatic Toilet paper production line is a production line for rewinding and cutting small toilet tissue paper, which composed of one set of XY-TQ-1575B Full-automatic Dot-to-Dot High-speed Rewinding and Perforating Toilet Paper Machine, one set of XY-AI -400 Full automatic Toilet Paper Cutting Machine.It can continue working(rewinding and cutting).

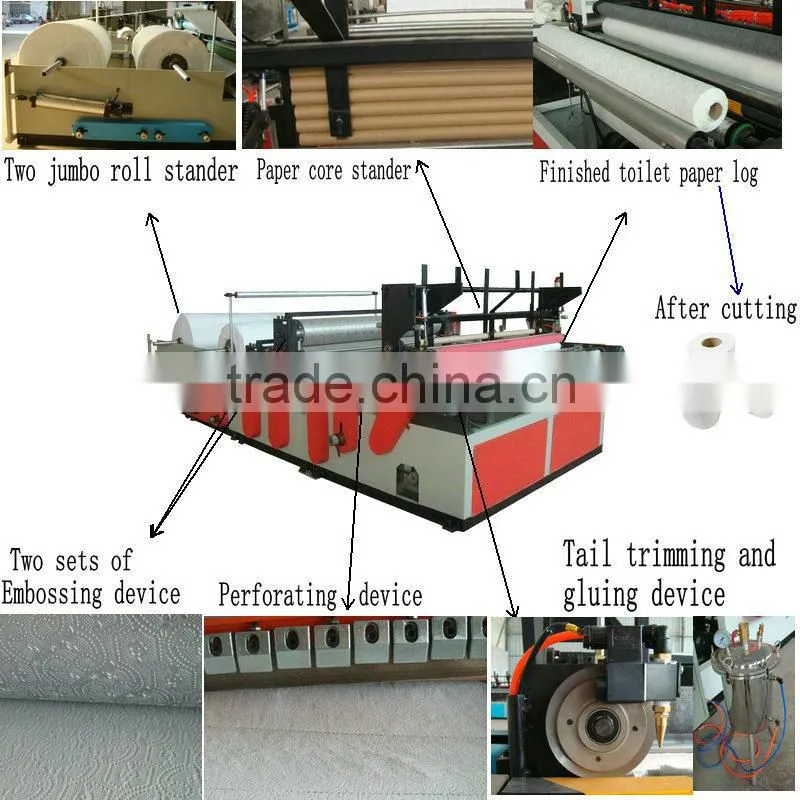

Production Process: Unwinding---Embossing---Rewinding---Tail gluing---Edge Trimming---Rewinding---Cutting
Video link: https://youtu.be/YME8V6lfgkM
Main technology parameter:

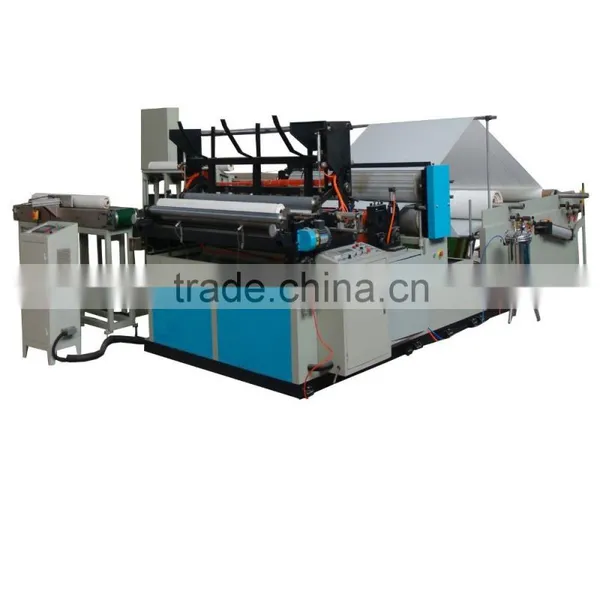

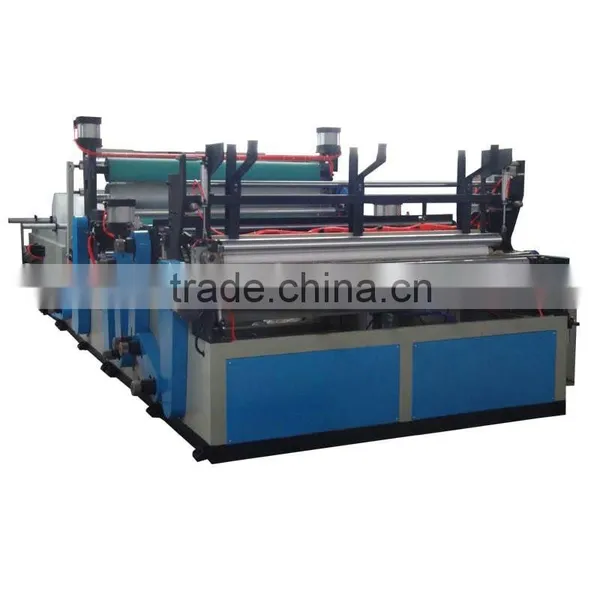

XY-TQ-1575B Automatic Rewinding and Perforating Small Toilet Paper Roll Making Machine
Machine Model |
1092 |
1575 |
2000 |
2200 |
2400 |
2600 |
2800 |
Width of jumbo roll (mm) |
1200 |
1750 |
1950 |
2150 |
2350 |
2550 |
2750 |
Finished Products Diameter |
Φ80~120mm (Tightness can be adjustable) |
||||||
Finished Products Inner Diameter |
Φ40~60 mm |
||||||
Jumbo roll diameter (mm) |
Φ1200 (Other sizes please point out) |
||||||
Jumbo Roll Inner Diameter |
76.2 mm (other sizes please point out) |
||||||
Perforation distance (mm) |
4 blade,90~160mm; 2 blade,180~320mm; |
||||||
Production speed |
160-200 m/minute |
||||||
Video Link: /watch?v=J11UD95EJM4

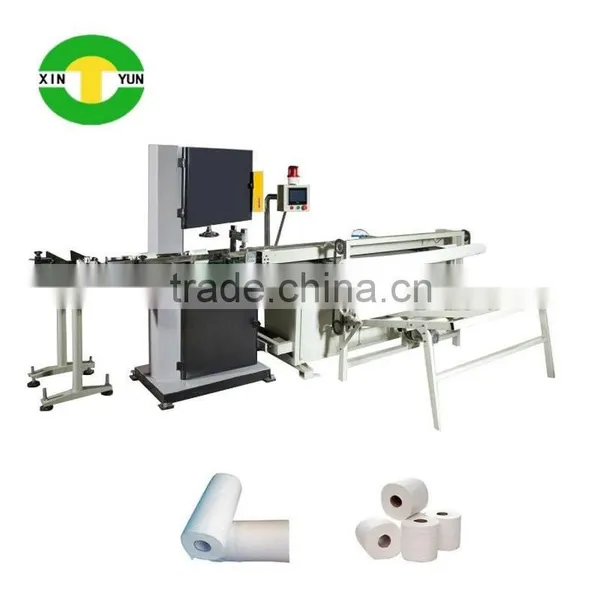

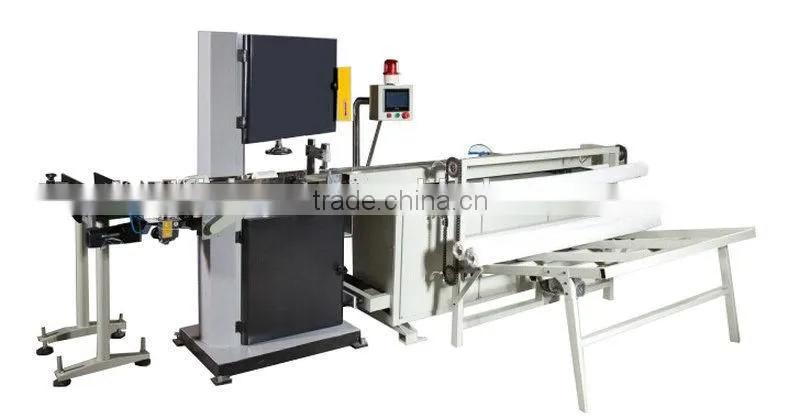

XY-AI-400 Toilet Paper Band Saw Cutting Machine
Technical performance characteristic:
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Feature and function:
1,When the paper can not be cut down, the equipment will automatically stops and gives an alarm;
2,The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;
3,The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;
4,When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
5,The waste paper head and paper end can be automatically sorted;
6,The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;
7,The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency
Data sheet:
Cutting speed |
80~100cuts/minute |
Cutting blade |
band saw blade(Size 3850*40*0.6) |
Toilet log length |
≤ 2850mm(it can be made according to customer request) |
Finished toilet roll length |
≤ 300mm |
Finished toilet roll diameter |
70-130mm |
Cutting tolerance |
±1.5mm |
Power supply |
5kw 380V 50H3 phase 4line |
Overall size |
2800x1500x2100mm |
Machine weight |
1100KG |
Video link: /watch?v=YME8V6lfgkM&list=UUdlZx4A0d5ebSpf7vHorqwQ
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional manufacturer of: 1)Toilet Paper Machine 2)Facial Tissue Machine
3)Napkin Paper machine 4)Hand Towel Paper Machine 5)Pocket Tissue Machine
6)All kinds of Tissue Paper Cutting and Packing Machine and another Household Paper Equipments Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
