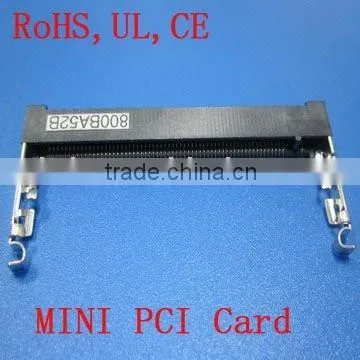

124 Pin Mini PCI Connector
US$ 0.02 - 0.03
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ACH, ACH
Model Number:
ACH-M001, ACH-M001
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
ACH, ACH
Model Number
ACH-M001, ACH-M001
Place of Origin
Guangdong, China
Interface Type
Displayport
Use
Video Game Player
Specifications
Mini PCI Card Socket 124Pin1,H=4.0/5.2/5.6/6.0/8.0/9.2mm SMT
2,Standard:ROHS,UL,ISO
3,LCP,Gold-plated copper
4,Black.

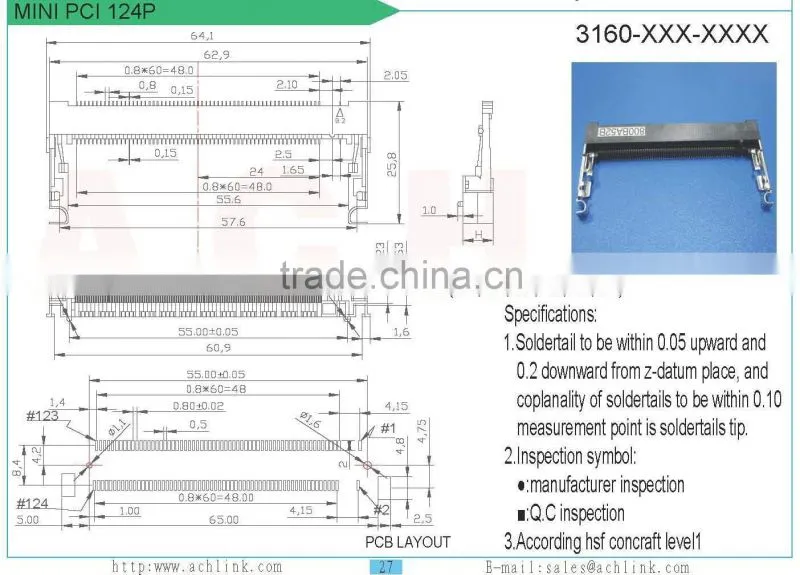

MINI PCI CARD SOCKET 124PIN H=4.0/5.2/6.0/8.0/9.2mm SMT CONTACTS:
Housnig Material: LCP UL94V-0 ROHS |
Contact Material: Phosphor Bronze |
Solder Materia: SPCC |
Contact Plated: Gold Plating in the contact area, And Tin Plating in the solder tail area,With 50u min Nickel under plating over all. |
Solder Plated: Sn plated |
Current Rating: 0.5Amp |
Contact Resistance: 55m ohms. |
Insulator Resistance: 500Megohms at 500V DC Min. |
Dielectric Withstanding: AC 300V for 1 minute |
Operating Temp.: -40°C~+80°C |
Max Processing Temp.:230°C for 30~60 seconds |
260°C for 10 seconds |
Insertion force: 2.2Kgf Max |
Withdrawal force: 2.2Kgf Max |
Durability: Insert&Withdraw 50 cycles. |
