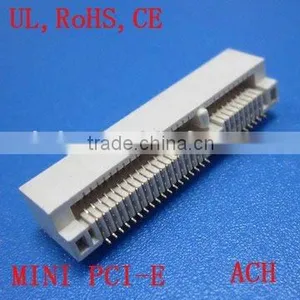

52 Pin MINI PCI EXPRESS
US$ 0.1 - 0.2
MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ACH
Model Number:
ACH-M02
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
ACH
Model Number
ACH-M02
Type
Other, MINI PCI EXPRESS, Female
Application
PCB
Gender
Female
Specifications

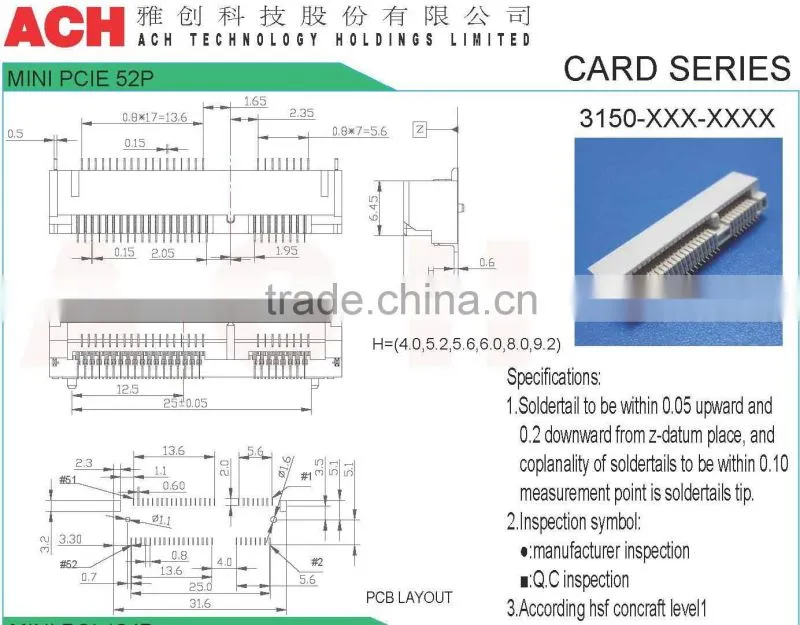

MINI PCI EXPRESS Card 52P SMT1,Materials:LCP,Gold-plated copper
2,Certification:ROHS,UL,ISO,CE
3,Type:Female
4,Color:Gray
0.4MM0.016 52PIN MINI PCI EXPRESS CARD SOCKET CONTACTS:
Housnig Material: LCP UL94V-0 ROHS |
Contact Material: Phosphor Bronze |
Solder Materia: SPCC |
Contact Plated: Gold Plating in the contact area, And Tin Plating in the solder tail area,With 50u min Nickel under plating over all. |
Solder Plated: Sn plated |
Current Rating: 0.5Amp |
Contact Resistance: 55m ohms. |
Insulator Resistance: 500Megohms at 500V DC Min. |
Dielectric Withstanding: AC 300V for 1 minute |
Operating Temp.: -40°C~+80°C |
Max Processing Temp.:230°C for 30~60 seconds |
260°C for 10 seconds |
Insertion force: 2.3Kgf Max |
Withdrawal force: 2.3Kgf Max |
Durability: Insert&Withdraw 50 cycles. |
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2004
Factory Size
3,000-5,000 square meters
Total Employees
201 - 300 People
