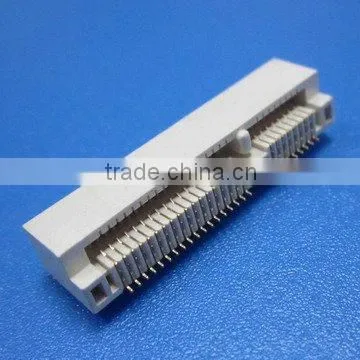

52 Pin White Mini Pci Express Socket
Negotiable
MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ACH
Model Number:
ACH-M04
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
ACH
Model Number
ACH-M04
Type
Other, MINI PCI EXPRESS, Female
Application
PCB
Gender
Female
Specifications
52 pin white mini pci express socket1,Materials:LCP,Gold-plated copper
2,Certification:ROHS,UL,ISO,CE
3,Type:Female
4,Heigh
52 pin white mini pci express socket :
Housnig Material: LCP UL94V-0 ROHS |
Contact Material: Phosphor Bronze |
Solder Materia: SPCC |
Contact Plated: Gold Plating in the contact area, And Tin Plating in the solder tail area,With 50u min Nickel under plating over all. |
Solder Plated: Sn plated |
Current Rating: 0.5Amp |
Contact Resistance: 55m ohms. |
Insulator Resistance: 500Megohms at 500V DC Min. |
Dielectric Withstanding: AC 300V for 1 minute |
Operating Temp.: -40°C~+80°C |
Max Processing Temp.:230°C for 30~60 seconds |
260°C for 10 seconds |
Insertion force: 2.3Kgf Max |
Withdrawal force: 2.3Kgf Max |
Durability: Insert&Withdraw 50 cycles. |
