steel C purlins steel roll forming machine
WE CAN DESIGN THE MACHINE AS YOUR SAMPLE OR PROFILE

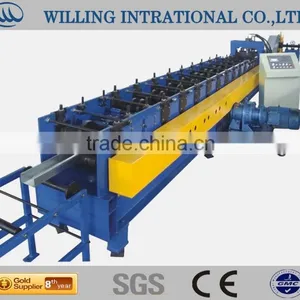

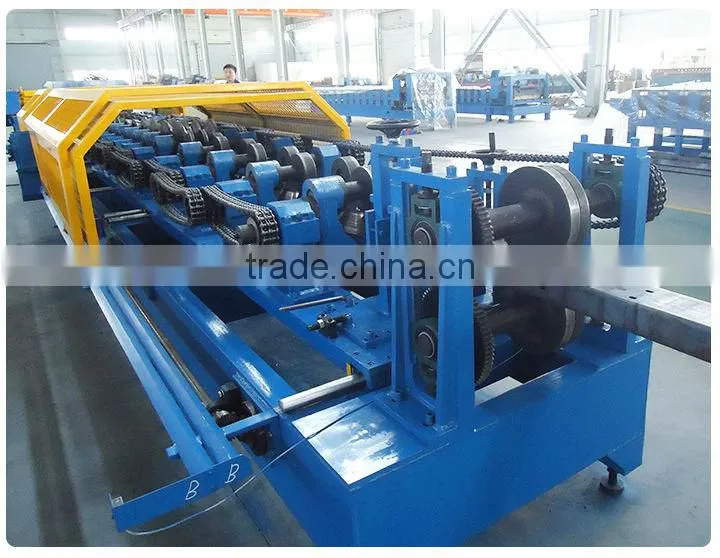

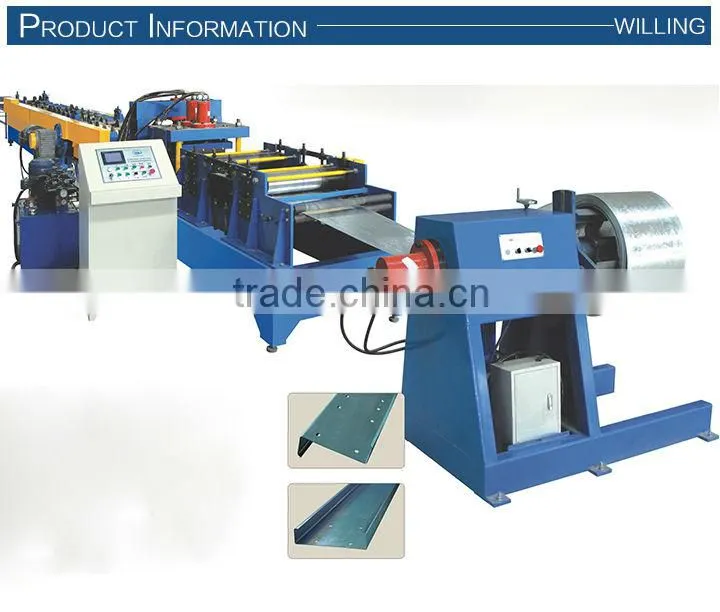

The roll forming machine includes manual uncoiler unit, sheet guiding equipment, straightening device, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.

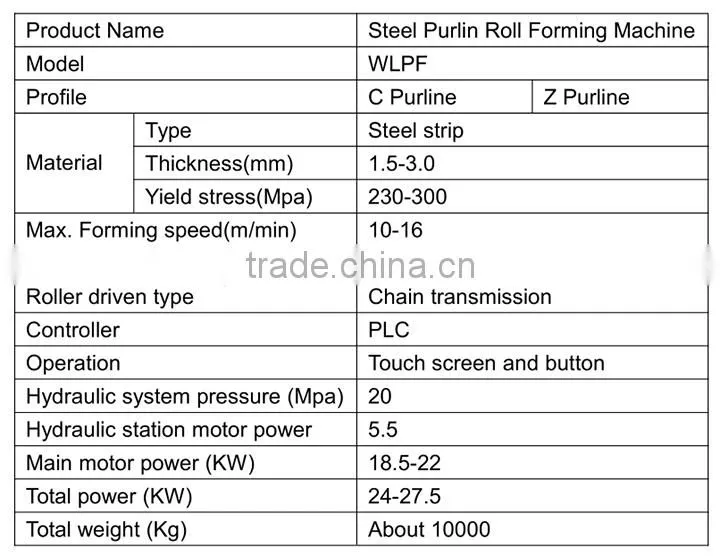

Main Parameters
Material Spec |
Galvanized or Carbon steel sheet (Q235) |
| Coil thickness | 1.5~3.0mm |
| Working speed | 10~12m/(cutting time is not included) |
| Cutting tolerance | ≤±2.5mm ( length ≤5000mm ) |
| ≤±3.0mm (5000mm <length ≤10000mm) | |
| Power requirement | Main motor power: 15Kw(Confimed by final design) |
| Hydraulic station power: 5.5Kw (Confimed by final design) | |
| 3 tons manual un-coiler | Max. capacity: 3000kgs; Inner Dia.: 508mm |
| Main roller quantity | Around 14 stands (Confimed by final design) |
| Type of cutting | Roll-formed and length-set cutting |
| Voltage | 380V 3phase 50HZ or as customers' requirements |

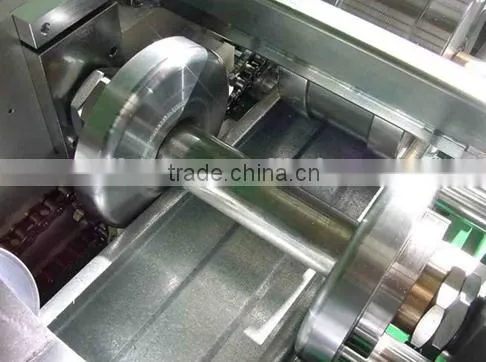

Material of main equipments

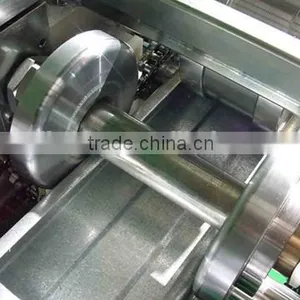

Roller Die Material |
G G Cr15 bearing steel with quenched treatment |
| Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft, shaft diameter 90mm |
|
Electric elements:
|
Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
| Cutter blade: |
Cr12 mould steel with quenched treatment |
Process sketch
Uncoiling the sheet --- Infeed guiding --- Straightening --- Pre-punching --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).

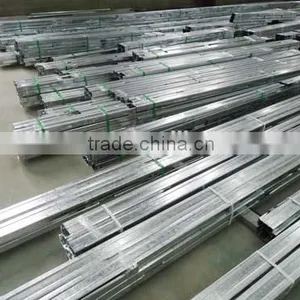

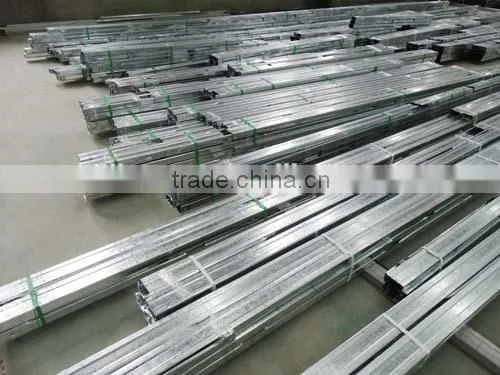

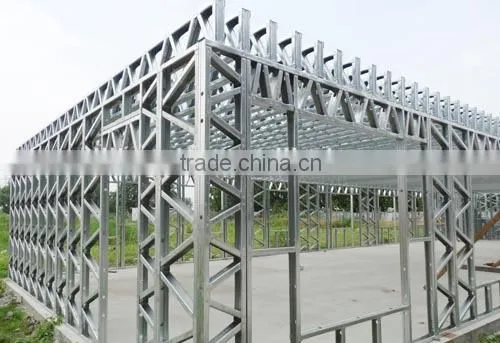

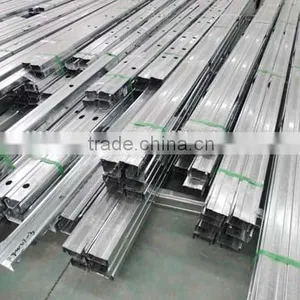

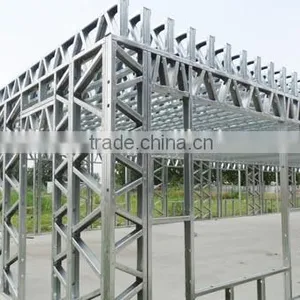

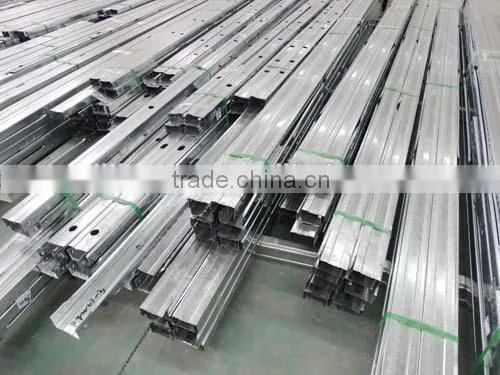

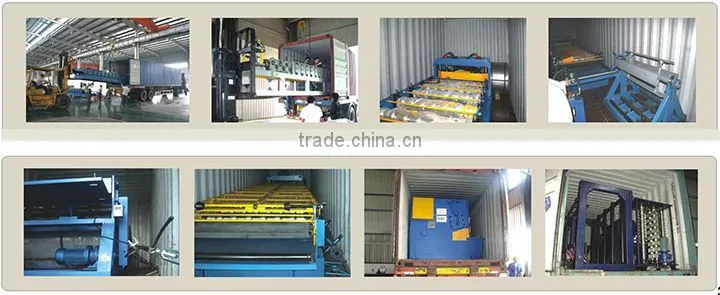

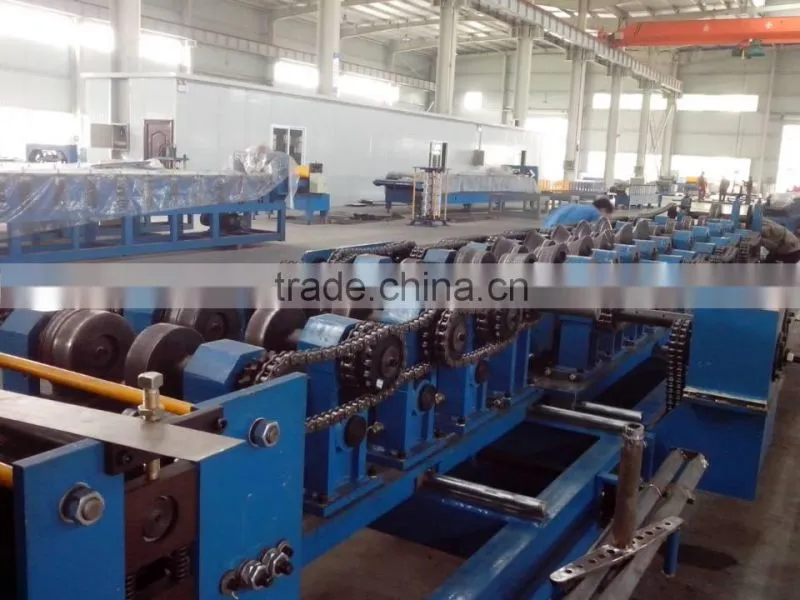

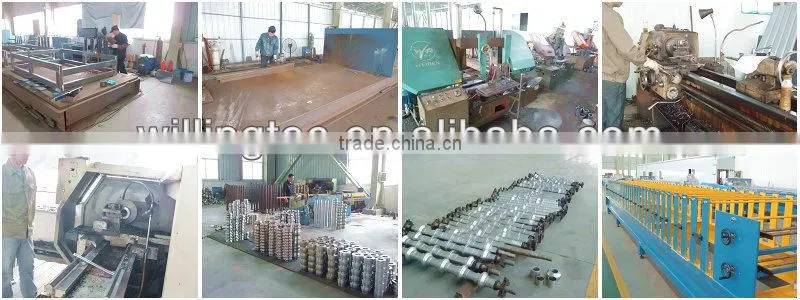

machine processing factory
