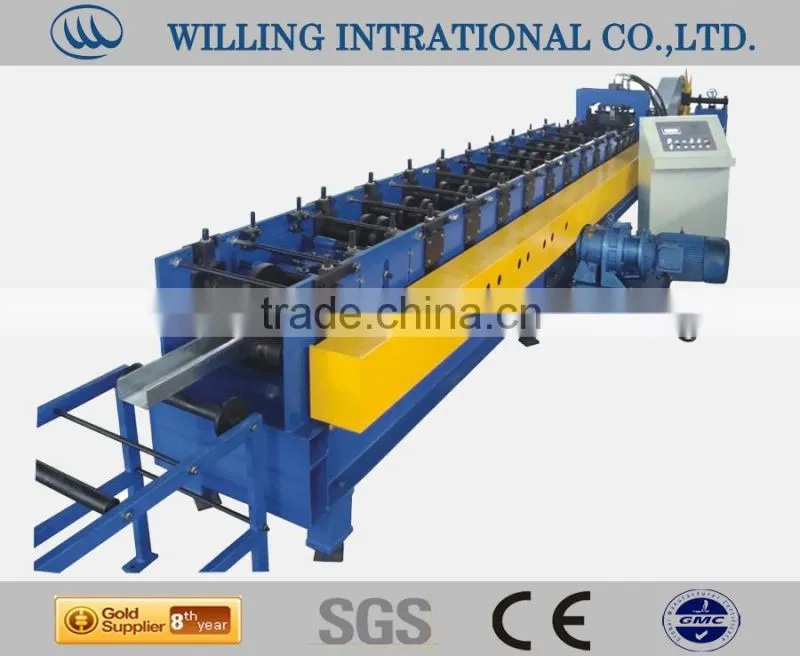

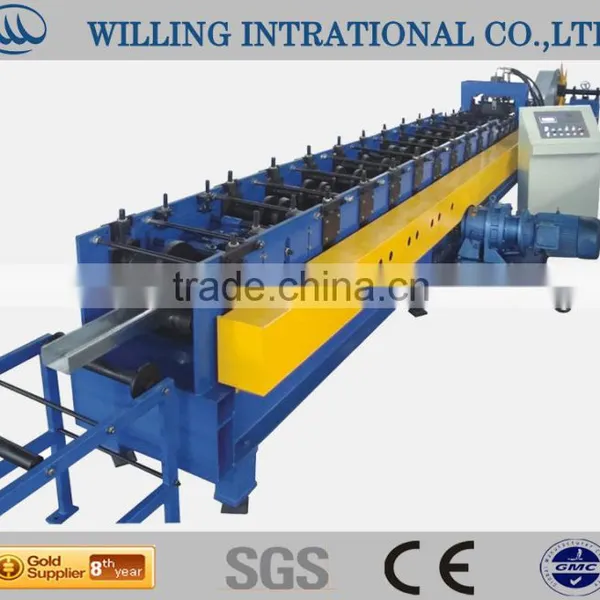

Automatic quick-change C purlin roll forming machine with PLC control system
- Ningbo or Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | willing | |
| Model Number | c purlin roll forming machine, WLFM100-300 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product and Parameters
| |
Type | Steel strip |
Thickness | C:1.0-3.2 mm/Z:1.0-3.0mm |
Yield stress | C:230-300Mpa/Z:300-350Mpa |
Dimension(L*W*H) | 10000m*800m*1400m |
Uncoi | 3-10tons |
Length Of Sheet | You can set the length according to your need, It is controlled by PLC,and can ensure the accuracy of ±3mm.Cutting |
Cutting | Automatically stop and cutting when it comes to the set length |
Forming Speed | 16-18m/min |
Components Details | |

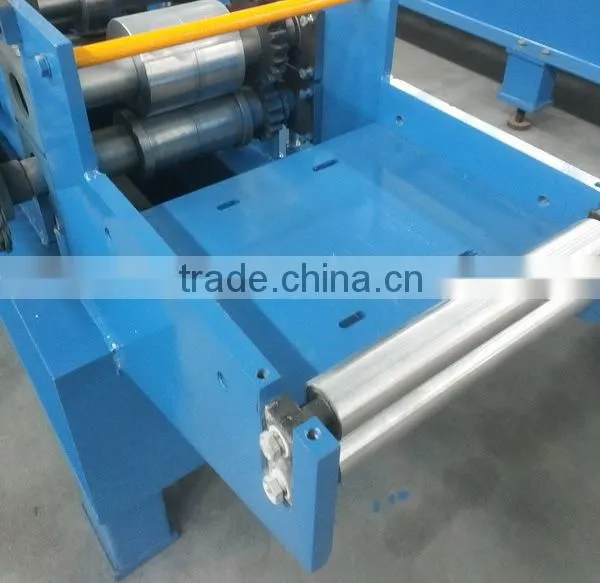

Feeding Table | The steel sheet is manually fed to the guiding equipment under the function of friction and tractio |
Mainframe Transmission | Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet. |

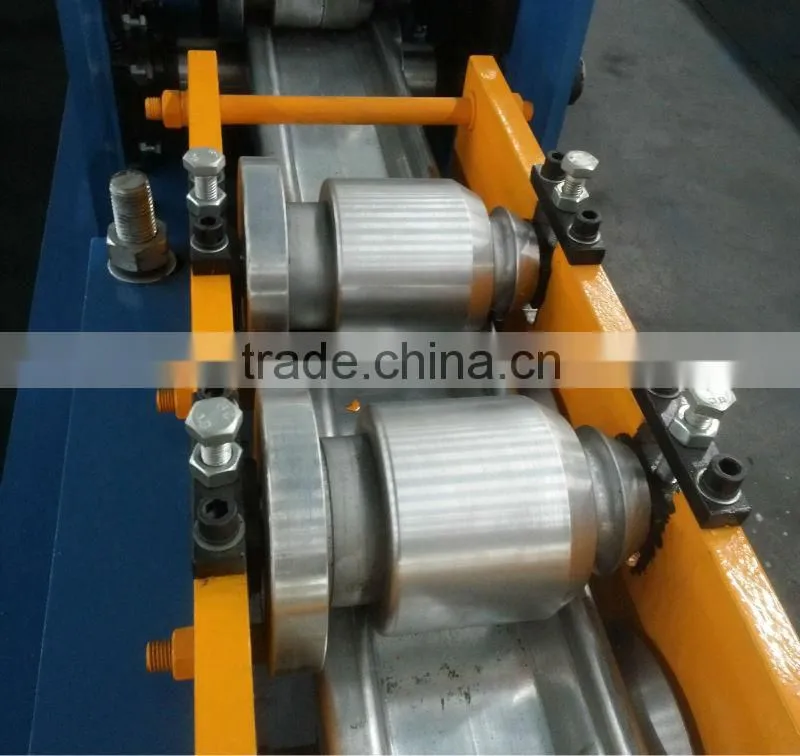

Roller Material | 45 # Steel wirh chrome treatment |
Forming Steps | 16-18m/min |

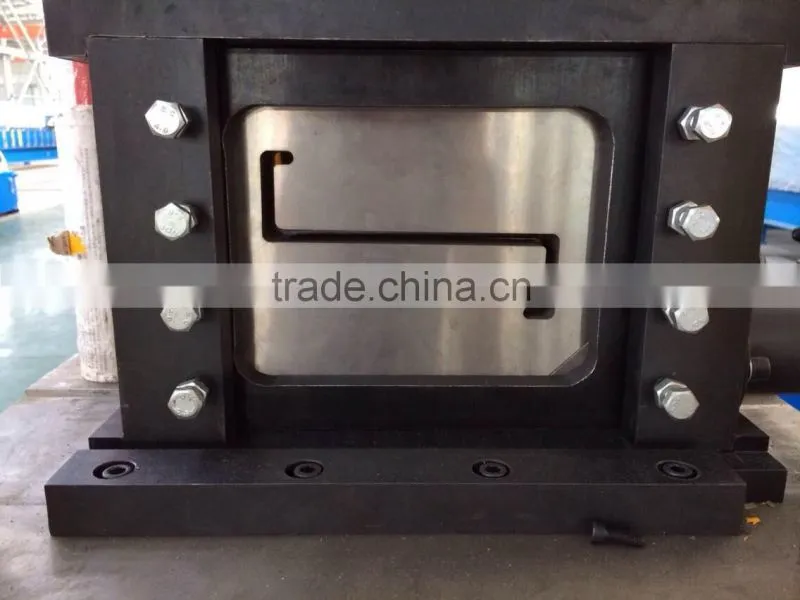

Post Cut Equipment | The cutting is finished under the power of hydraulic station which guarantees the precision of cutting. |
WE CAN DESIGN THE MACHINE AS YOUR SAMPLE OR PROFILE | |
Working flow
Uncoiling→Sheet Guiding→Straightening &Levelling→(Hole Punching)→Measuring Length &Shearing→Roll Forming→Sheet to support table.
ZheJiang Willing Technology Co., Ltd. is located in Tongxiang economic development zone, which is about 2 hours far from Shanghai.
We are a professional manufacturer and exporter of roll forming machineries and products. The main items: steel roll forming machines, folding & bending machines as well as its auxiliary equipment, roofing tile sheets, corrugated steel sheets, decking sheets, sandwich panels, purlins, H beams, galvanized steel coils, pre-painted steel coils, construction ... View detail
View this Supplier's Website
We mainly export the following five product series:
1) Roll forming machines: tile forming machines; wall and roof forming machines; decking forming machines; C&Z forming machines; building material supplementary equipment.
2) Building metallic materials: tile sheets, corrugated sheets, floor decking sheets; C&Z purlins; H beams; steel structures; guard fence; guardrails
3) Sandwich panels: EPS sandwich panels,...
Hangzhou Willing International Co., Ltd. has a convenient land and air transporation.
What make us better than others?
1. Professional | 10 years' rich experience! a.Specialized in China Supplied Steel Roofing Purlin Sheet Profiling Machine since 2004; b.Keeping improving the quality. |
2. Low price | Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
3. PLC | Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order. |
4. OEM / ODM | Customers’design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality. |
5. One-Years warranty, whole life service | Keep troubles far away from you! Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems . |
