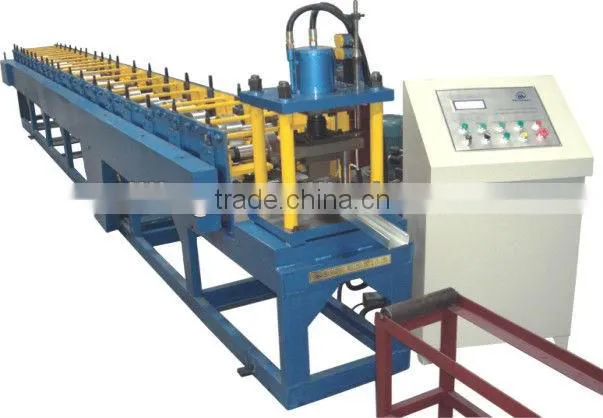

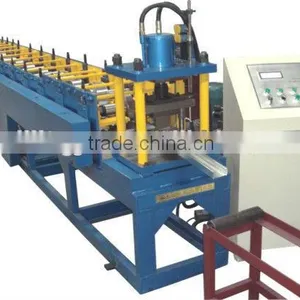

Help CenterHigh Precision C Channel Roll Forming Machine U Profile Roll Forming Machine
Related Products
-
Automatic Quick-change C Purlin Roll Forming Machine With PLC Control SystemUS$ 29,000 - 35,000MOQ: 1 Set -
Assured Quality Customized C/Z Shape Changeable Purlin Production LineUS$ 30,000 - 70,000MOQ: 1 Set
-
Best Quality Favorable Price Purlin Roll Forming MachineUS$ 25,000 - 73,000MOQ: 1 Set
-
Steel Purlin Roll Forming MachineUS$ 33,000 - 43,000MOQ: 1 Set
-
C/Z Shape Changeable Purlin Production LineUS$ 33,000 - 43,000MOQ: 1 Set
1. Components of C/U channel Roll forming machine
The roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations,
cutting equipment, hydraulic station, control console, and manual unload product run out table.
2. Technical Parameters
Material specification :Aluminum, galvalume, galvanized and pre-painted galvanized steel.
Thickness: 0.3-2mm
Main motor power :5.5 kw.
Hydraulic station power:3 kw.
Feeding width:124mm.
Cover width:60mm.
Yield stress:235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed:12 m/minute.
Cutting Tolerance:+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).
Manual Uncoiler
Max. Capacity: 5000kgs.
Coil inner diameter :508mm.
Voltage : As per customer’s request.
Numbers of stands : 14 stands/stations/pairs.
Type of cutting : Roll-formed and length-set profile cutting.
3. Material of Main Equipment
Roller Material : High grade No.45 forged steel, coated with hard chrome.
Active Shaft Material: High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.
Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.Other elements are from famous suppliers of China.
Cutter blades: Cr12 mould steel with quenched treatment.
