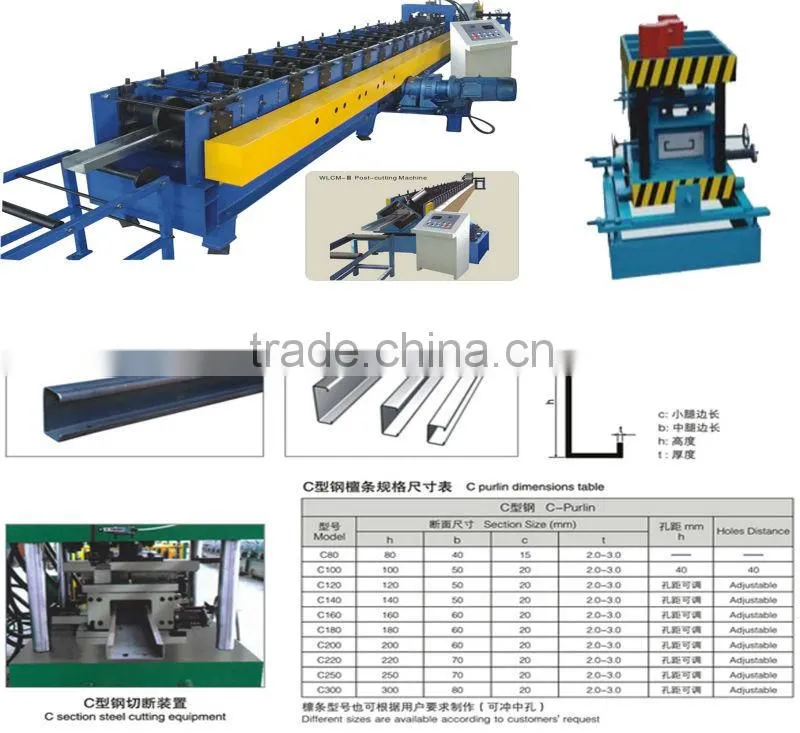

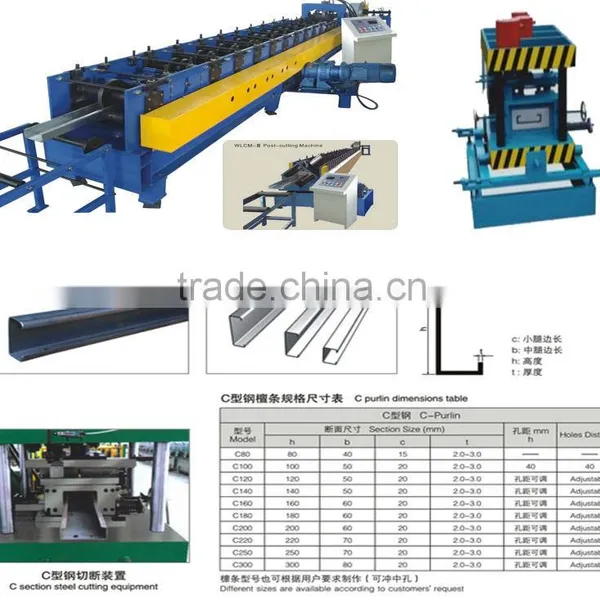

C/Z c purlin roll forming machine for steel
Specifications
1. c z purlin roll forming machine
2. High quality ,High speed ,safety and accurately.
3. Simple operation
4. Best price
5. CE&ISO
Parameters of the machine
Material type |
CZ Steel purlin roll forming machine |
Material thickness (mm) |
1.5~3.0 |
Material yield stress (Mpa) |
230~300 |
Max. forming speed (m/min) |
10~16 |
Roll material |
Bearing steel |
Roller driven type |
Chain transmission |
Controller & operation |
PLC& touch screen and button |
Hydraulic system pressure (Mpa) |
25 |
Hydraulic station motor power (KW) |
7.5 |
Main motor power (KW) |
18.5~22 |
Total power (KW) |
24~27.5 |
Total weight (Kg) |
About 10000 |
About WILLIN
To be best partner in your great business,WILLING will supply with the best quality product, best favourable price and best service for all world market. We have many kinds of machines,such as trapezoidal roll forming machine, corrugated roll forming machine, ceiling roll forming machine,glazed tile roll forming machine,CZ purlin roll forming machine etc.
