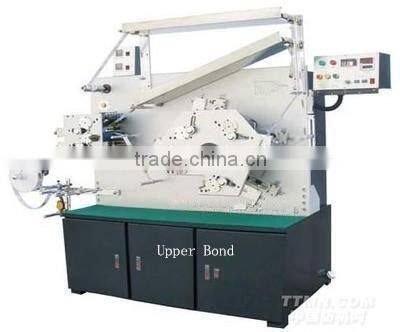

Speed 60m/min Flexo Printing Press Machine (PT 4/2) with Max Printing L 300mm
WORKING PRINCIPLE
PT is a six colors double-sided woven lable flexo graphic printing presses, its principle is work by high-precision anilox roll, which transfer ink evenly to the plate cylinder, and then directly by the plate cylinder pressure in belt material on the surface. The result is that the ink layer is thick, the color can resistant to be water off , and also the ink is environmental protective. White ink can be printed on the black belt material, there are various versions of the drum specification to choose, as to change the length of printing. The normal standard of the ceramic anilox roll is 180 lines ,and other three lines 150 lines, 300 lines, 500 lines to be selected , as to adapt to different print.
PARAMETER
Model |
Front Color |
Back color |
Max Printing W |
Max Printing L |
Min Printing L |
Max speed |
Power |
Weight |
Size |
PT4/2 |
4 |
2 |
150mm |
300mm |
106mm |
60m/min |
220V /2.4Kw |
600kg |
2200*800*1870mm |
OTHER
Max unreeling diameter 400mm
Max unwind diameter 400mm
AUXILIARY MACHINES

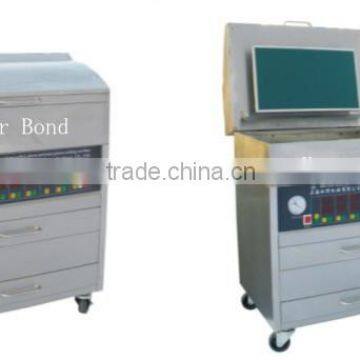

FLEXO PLATE MAKING MACHINE(SOLVENT TYPE)
WORKING PRINCIPLE
SBR400 Flexo Plate Making Machine: exposure, washing, drying, Paste and anti-paste in the line, it has ice (PHILIPS) tubes, powerful vacuum pump, super flat drive plate, circulating hot air temperature drying system. Suitable for supporting small-scale flexo graphic printing presses. this product use wash version tetrachloroethylene: ratio of n-butanol to 4:1 mixed solvent.
MAIN TECHNICAL PARAMETERS
Plate area (mm):400*250
Power: 220V 5Hz 0.8Kw
Weight: 65KG
Size: 420×530×880mm
CURING OVEN
WORKING PRINCIPLE
DHG9073 thermostatic drum wind drying oven with constant temperature drying system, increasing printing color fastness to the whole roll of ribbon. It can maintain 120 ℃, 5 hours heat preservation for the ribbon,100 ℃, 4 hours heat preservation for tape . For example high requirement for the print fastness, please add a suitable curing agent in printing ink, before using to heat preservation. This machine is not suitable for inflammable and explosive goods drying, in case of an explosion.
MAIN TECHNICAL PARAMETERS
Cabinet size(mm):550L*450W*550H
Temperature Range:50-150℃
Power: 220V 1Kw
Size(MM): 700L*650W*900H

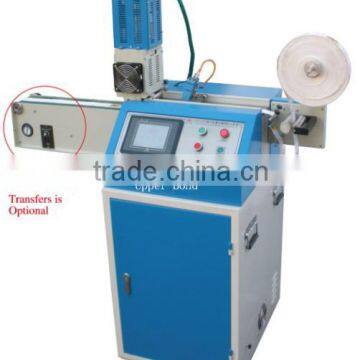

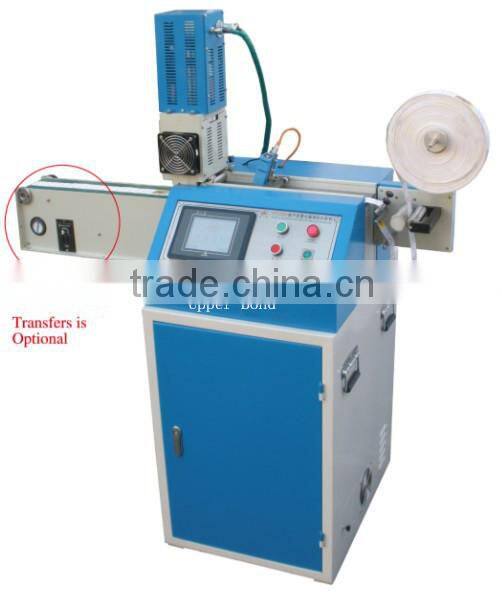

ULTRASONIC LABEL CUTTING MACHINE
WORKING PRINCIPLE
Ultrasonic microcomputer trademark cutting machine is one of the indispensable equipment in the apparel trademark printing industry. The machine is used to import ultrasonic generator, controlled by computer programming, to make fixed length or long ribbon cutting edge and a crease on both sides (the middle fold, fold and asymmetric fold), the seal is firm, smooth and soft. This machine is the one of the most advanced cutting equipments in China.
MAIN TECHNICAL PARAMETERS
Length of trademarks(cutting):>15mm
Length of waste trademarks(cutting):>5mm
Width of trademarks(cutting):>70mm
The ac power : 220 v 2000-2500 watts
Ultrasonic power output : 1400 watts
Feeding speed : 100-450mm/second
Cutting speed: 200 times/min (no cursor mode Trademark length 50 mm)
