Printing Press

Printing Press thumbnail-1
Printing Press thumbnail-2
Printing Press thumbnail-3
Printing Press photo-1
Printing Press photo-2
Printing Press photo-3
US$ 78,000 - 85,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, Flex printing machine
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Zhejiang Fangbang Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, Flex printing machine
Place of Origin China
Brand Name FB
Model Number RZJ-41050AF
Usage Paper Printer, Other
Automatic Grade Semi-Automatic
Voltage 380V.50HZ.3PH
Gross Power 83kw
Dimensions(L*W*H) L10350*W3000*H1700mm
Weight 12000kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Printing press







Printing press




Product Description

Specification :



This machien is a flexo printing machine which adopts flexible photosensitive resin plates, rubber plates as the base material,anilox rollers for transferring ink,liquid ink for printing . It is controlled centrally by PLC system aection and control section.

this machine is an ideal machine for printing paper cup, carton, paper bag, paper package.also can printing film (Except for PE material )







  • separate single-station unwinding rollstand with hydraulic lifting device; 3" pneumatic shiaft for loading material;automatically constant tension controller for alarm function for reminding replacing material, staooping-mchine device for detecting material broken
  • The machine is mainly controlled by inverter-fec motor with synchronization belt
  • Double rubber nipper roller is used for paper feeding, whose pressure can be adusted by pneumatic component;taper tension control system ensures the printing accuracy

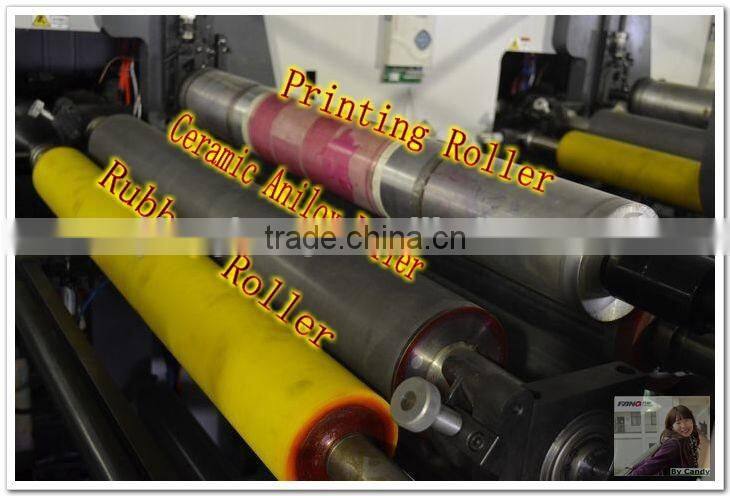

  • Ceramic anilox roller for ink transferring ;Single -blade reverse ink-scraping sstem; pneumatic clutch pressure for anilox rollers and plate rollers. Automaitc preverting clogging function:when te machine stops, the anilox roller wll rotate to prevent the ink on its surface from drying and blocking holes(meshes)on it.

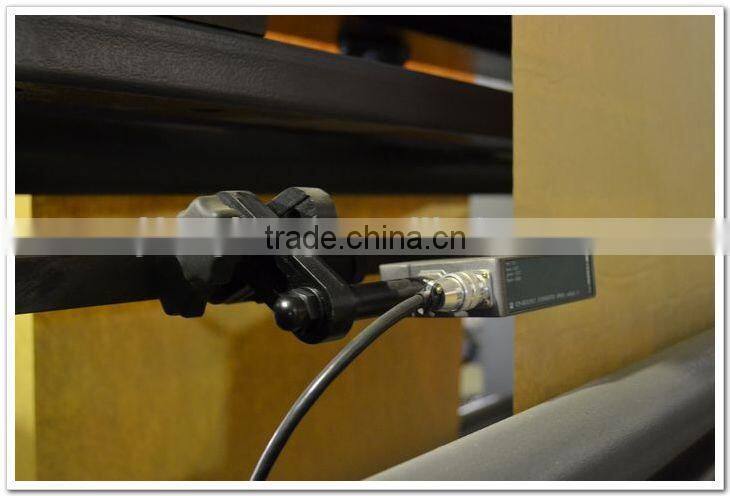

  • Double rubber nipper roller  is sued for paper feeding of rewinder, whose pressure can be adjusted by pneumatic component;equip with picture color detection system (Kesai).
  •    Single-station rewinding rollstand with hydraulic lifting device;3''pneumatic shaft for loading material; stopping -machine device for detecting material broken
  •  Separate dryting system (electric heating ); heater drying system(the temperature is adjustable); hot air and natural air drying system including exhaust fan and blower; central exhaust system (waste gas will be exhausted centrally by exhaust fan, it is ready by user).

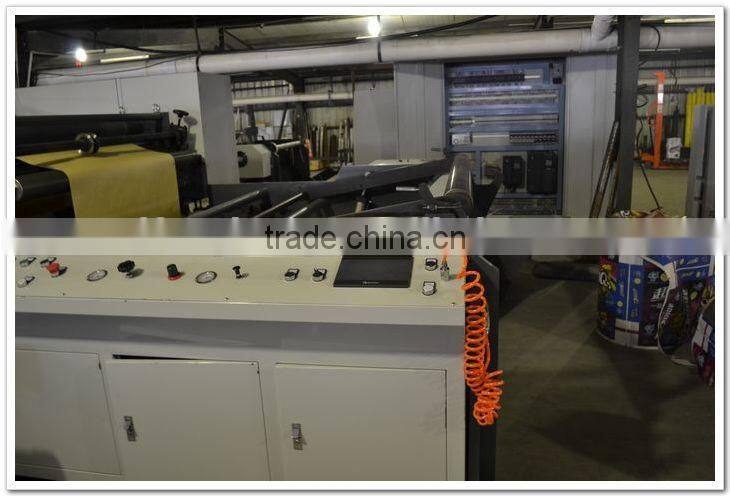

  •  The whole machine is centrally controlled by siemens PLC system, which has monitors the machine status;the running speed can be adjusted at multiple points.

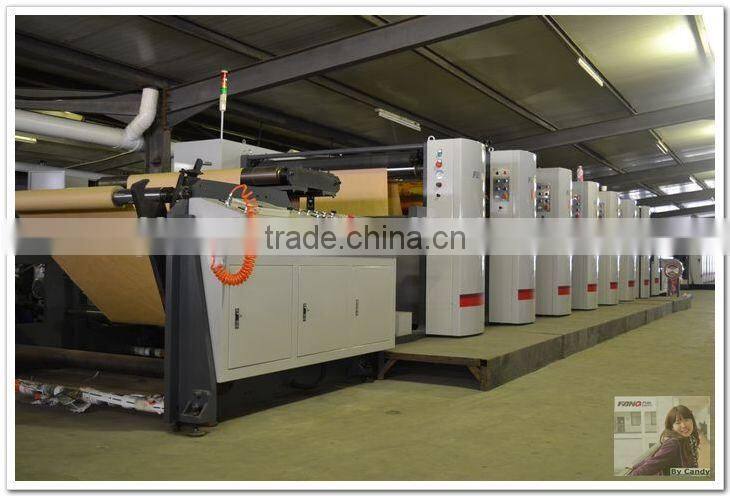

1.Unwinder Section

Printing press

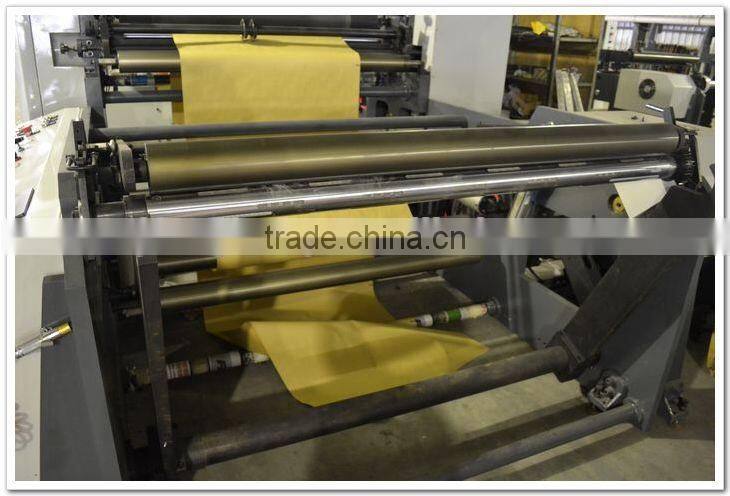

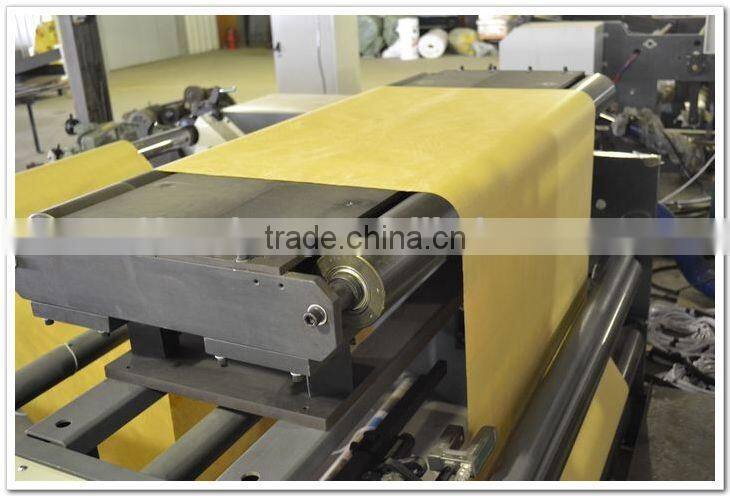

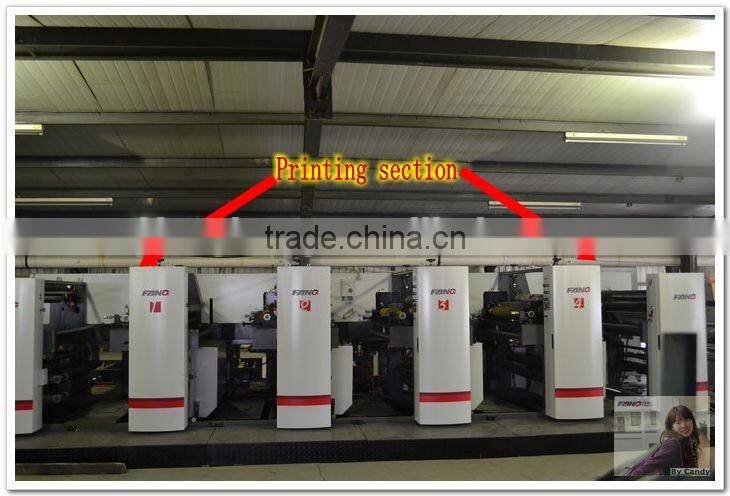

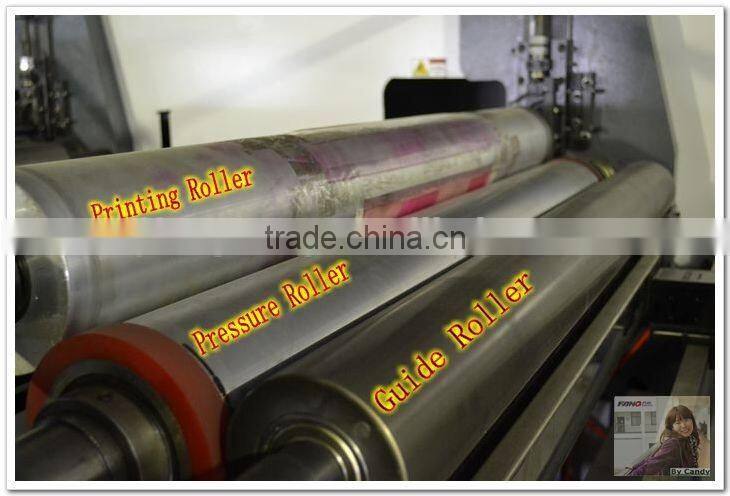

2.Printing Section

Printing press



Printing press



Printing press



Printing press



3.Rewinder Section

Printing press





 Printing press

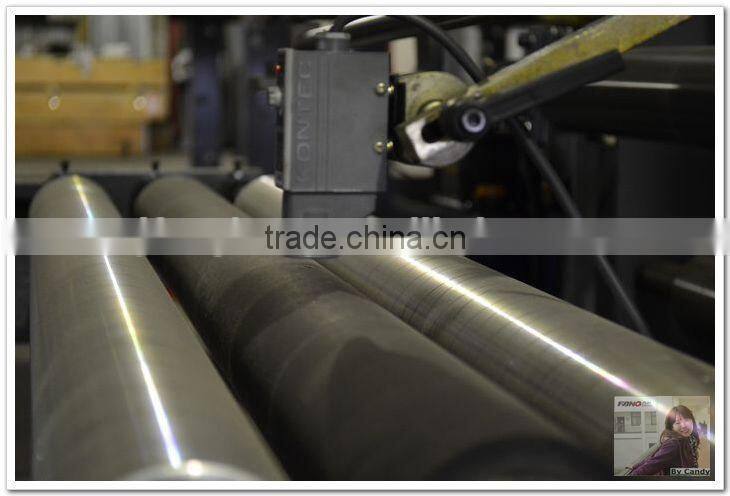

1. Other detail part

Printing press

Printing press







Printing press





Main Technical Variables:

Model  RZJ-1050A RZJ-1350A RZJ-1550A
Max.web width 1050mm 1350mm 1550mm
Max. printing width 1030mm 1030mm 1550mm
Max.die-cuttinG width 1050mm 1350mm 1550mm
Printing repeat 380-1200mm 380-1600mm 380-1600mm
Max.Unwinder diameter 1524mm 1524mm 1524mm
Max. Rewinder diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max. printing speed 150m/min 150m/min 150m/min
Diameter of web roller 100mm 100mm 100mm
Motor power 11kw-15kw 15kw-18.5kw 18kw-22kw
Drying mode A.Aqueos ink B. UV ink
Oil used A.Warm Drying B.IR Drying C.UV Drying
Power requirementHZ 380V 3PH 50 380V 3PH 50HZ 380V 3PH 50HZ



The difference  normal flex printing machine between  High speed flex printing machine

Difference Normal flex printing machine High speed flex printing machine
Speed 50-80m/min 150m/min

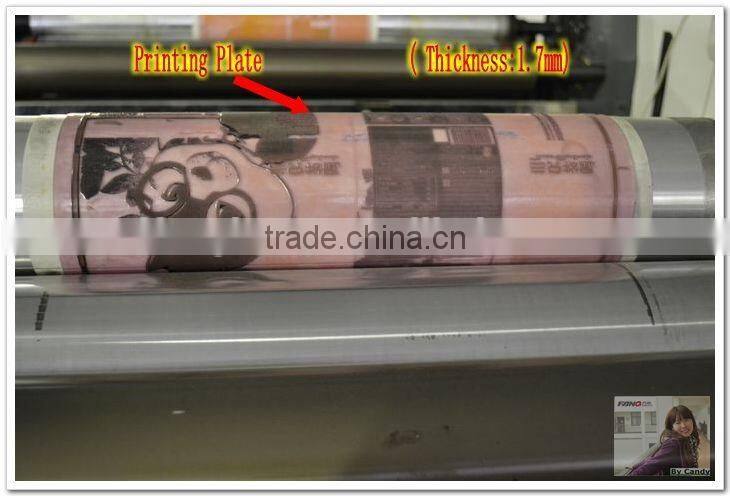

Plate thickness 2.38mm 1.7mm
Video cam Not suitable Match
Register accuracy Accuracy:+_0.50mm Accuracy:+_0.12mm
Color 1-6 color 1-8.9.10 or more
Heating meothy Fan Heating one time

Independent external heating(safe)

Hot air recycling (Energy saving )
Loading device Pneumatic  Hydraulic
Material of machine The normal Iron Double wal alloy cast iron
Bearing Made in China Made in Japan NSK




Auxiliary Equipment For Printing Machine (Option)

1.Ultrasonic Cleaning Machine For Anilox Roller

Printing press



2.FL Series of Flexo Plate Making Machine

Printing press



3.ZX Series of Plate Mounting Machine

Printing press





 If  want  to see the video.PPT  .Pls contact with Candy







Company Information









To be the Best Printing&Packaging Manufacture in China







Company introduction:



  • 14 years experience in packing industrial
  • Appliance is strictly in accordance with CE standard
  • Assembly&parts are processed by CNC lathe
  • Good after-sale service
  • Prompt reply within 24 hours
  • Professional&enthusiastic sales team



FangBang Development History:



  • August ,1999        ---Ruian.jianshe Packing Equipment Co.,Ltd ,Was established
  • April ,2002             ---Shanghai Fangbang industry Co.,Ltd  Wad established
  • October, 2003       ---Main products passed the inspection of Zhejiang Province Light Industry Machine Quality Supervision and Inspection Center,past the Province Level Authentication an listed by Govenment Authorities as the new products
  • August .2005        ---Jiangsu Fangbang Machinery Co.,Ltd Was established
  • October .2005      ---Passed ISO9001:2000 Authentication
  • May,2006              ---Zhejiang Fangbang Machiery Co.,Ltd .Was established
  • Augus,2006         --- Passed CE Authentication
  • July ,2010             --- The Famous Product of Ruian City
  • September ,2010 -- The Famous Brand of Ruian City
  • August,2011         --- National High&New Technology Enterprise
  • ...........



















FAQ

Q1.Are you a manufactrer ?

Yes.we have been in provding professional printing and packaging industry over 14 years from 1999



Q2.Do you have stock products to sell

No.We work on OEM order ,That means ; size ,material ,quantity ,design packaging etc.depend on your requests



Q3.What information should I let you know if I want to get a quotation ?

  • The size of the products
  • The material
  • The printing colors
  • The quantity

If It is possible ,Please also provide with sample pictures which you need to make ,If not ,we will recommend you some products for reference
