Chinese Brand New 316 KW/430 HP Bulldozer Price With Bulldozer Parts Quality Choice

FOB Price

US$ 350,000 - 450,000 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Shenzhen
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	HBXG
Model Number	SD9	Condition	New
Moving Type	Crawler Bulldozer	Machine Weight	48880kg
Dimension(Long * Breadth * High)	847843143970mm	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Chinese Brand New 316 KW/430 HP Bulldozer price With Bulldozer Parts

Product Description

Our SD9 crawler bulldozer is:

semi-rigid elasticity suspending

hydraulic-mechanical transmission

elevated sprocket track type

wholly hydraulic operation

pilot hydraulic controlling blade operation

modular designing components easily for maintaining

portable laborsaving nicety man-machine designing controlling system

electric monitoring

ROPS cabin

many optional equipments

The machinery can be broadly used in transport, desert, oil field, power station, mine, swamp etc,, large-scale soil stone construction

You can select original American Cummins engine, emission standard meet with Tier3 with lower fuel consumption and stronger power output.

Undercarriage system
Type	The track is triangle shape, the sprocket is elevated elastic suspended.
Number of track rollers(each side)	8
Pitch (mm)	240
Width of shoe (mm)	610

Gear
	1st	2nd	3rd
Forward (Km/h)	0-3.9	0-6.9	0-12.2
Backward (Km/h)	0-4.8	0-8.5	0-15.1

Engine
	Option 1	Option 2
Engine Name	Cummins KTA19-C525S10	Original America QSX15
Rated revolution(rpm)	1800	1800
Flywheel power(KW)	316/430	316/430

Implement Hydraulic System
Max. system pressure (MPa)	18.3
System output(L/min)	358
Pump type:	Double vane pump

Driving System
Torque converter	Torque converter is power separating hydraulic-mechanic type.
Transmission	Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch	The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch	The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive	The final drive is two-stage planetary reduction gear mechanism, splash lubrication.

Specification
Blade	Straight and tilting	Angle	Tilt
Ground pressure(kpa)	112	16600	16500
Min. ground clearance(mm)	517	63.3	62.9
Dozing capacity(m3)	13.5	1880	1880
Max. digging depth(mm)	614	400	400
Operation weight(kg)	48880(with ripper)	30/25	30/25
Track gauge(mm)	2250	4	4.5
Gradient	30°/25°	3762	3297
Blade width(mm)	4314	400	400
Overall dimensions(L×W×H)(mm)	8478×4314×3970	5486X3762X2842	5336X3297X2842

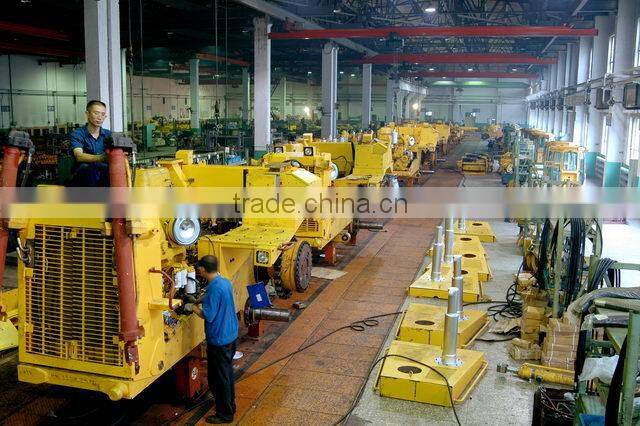

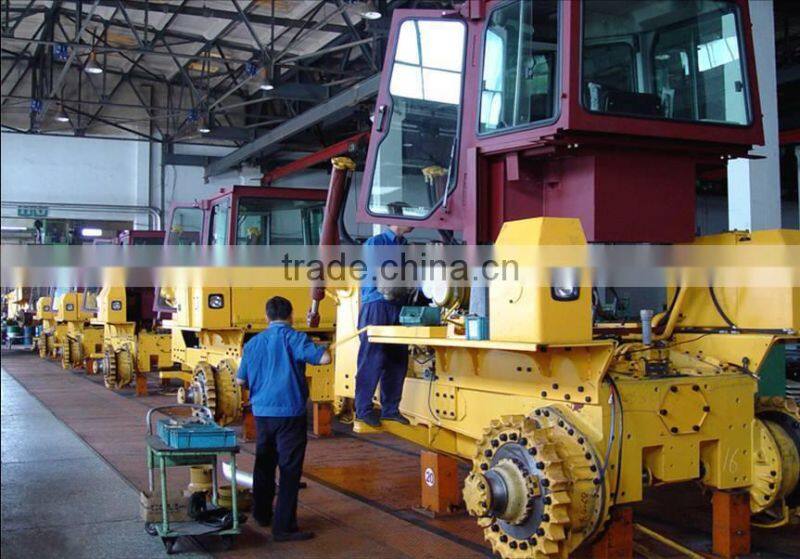

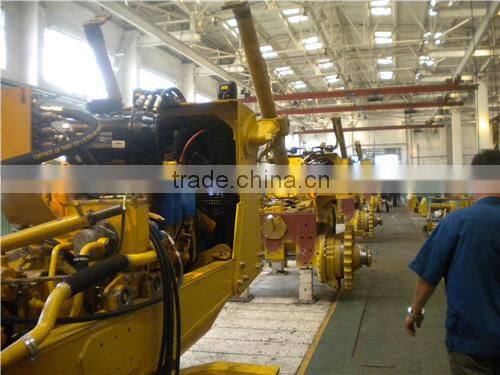

Factory Pictures
