Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Bulldozer > SD7 Shantui r c Bulldozer Similar Mini Budozer With Best Price SD6G/SD7/SD8B/SD9/T140-1/T165-2

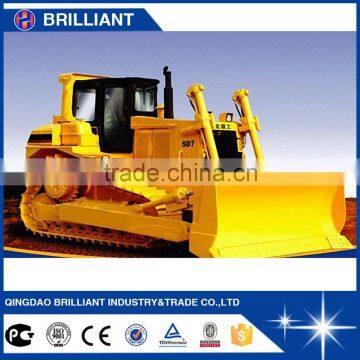

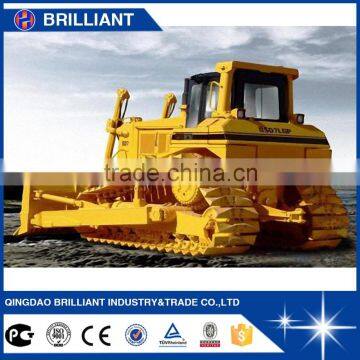

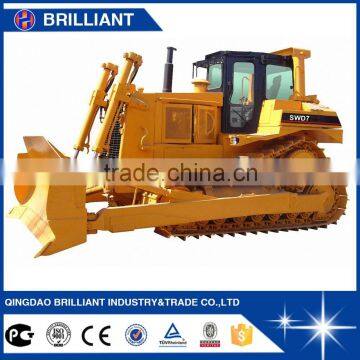

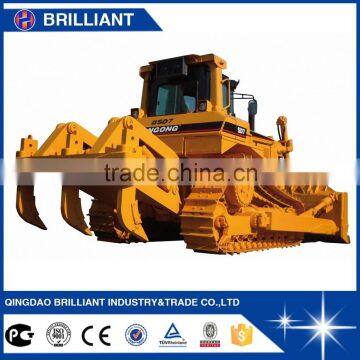

SD7 Shantui r c Bulldozer Similar Mini Budozer With Best Price SD6G/SD7/SD8B/SD9/T140-1/T165-2
US$ 80,000 - 120,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HBXG
Model Number:
SD7
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
T165-2 Shantui r c Bulldozer Similar Mini Budozer With Best Price SD6G/SD7/SD8B/SD9/T140-1/T165-2US$ 50,000 - 80,000MOQ: 1 Set -
High Performance SD6G 16.5t Small Crawler Bulldozer Similar to Caterpillar Bulldozer for Sale Quality ChoiceUS$ 50,000 - 80,000MOQ: 1 Set
-
Low Price Factory Price Mini Crawler/track Dozer/bulldozer HBXG Model SD6G on SaleUS$ 50,000 - 80,000MOQ: 1 Set
-
Low Price Factory Price Mini Crawler/track Dozer/bulldozer HBXG Model T165-2 on SaleUS$ 50,000 - 80,000MOQ: 1 Set
-
SD6G rc Bulldozers for SaleNegotiableMOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
HBXG
Model Number
SD7
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
23800kg
Dimension(Long * Breadth * High)
5677X3500X3402mm
After-sales Service Provided
Engineers available to service machinery overseas
SD7 Shantui r c bulldozer similar mini budozer with best price SD6G/SD7/SD8B/SD9/T140-1/T165-2
Product Description
1, SD7 Bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
2, It integrate with modular design is easy to repair & maintenance.
3, The machinery relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency.
4, Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
5, It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; Single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.
6, It is can ideal machine used in communication, oil field, power, mining etc. Large earth moving program.
| Specification | |
| Blade | Straight and Tilting |
| Operation weight(kg) | 23800(without ripper) |
| Ground pressure(kpa) | 71.9 |
| Track gauge(mm) | 1980 |
| Min. ground clearance(mm) | 404 |
| Gradient | 30°/25° |
| Dozing capacity(m3) | 8.4 |
| Blade width(mm) | 3500 |
| Max. digging depth(mm) | 498 |
| Overall dimensions(L×W×H)(mm) | 5677×3500×3402 |
| Undercarriage System | |
| Type | The track is triangle shape,the sprocket is elevated elastic suspended. |
| Number of track rollers(each side) | 7 |
| Pitch (mm) | 216 |
| Width of shoe (mm) | 560 |
| Gear | |||
| 1st | 2nd | 3rd | |
| Forward (Km/h) | 0-3.9 | 0-6.5 | 0-10.9 |
| Backward (Km/h) | 0-4.8 | 0-8.2 | 0-13.2 |
| Engine | |
| Engine Name | Cummins NTA855-C280S10 |
| Rated revolution(rpm) | 2100 |
| Flywheel power(kw) | 169 |
| Max.torque(N.m/rpm) | 1097/1500 |
| Rated fuel consumption(g/kw.h) | ≤235 |
| Implement Hydraulic System | |
| Max. system pressure(Mpa) | 18.6 |
| System output(L/min) | 194 |
| Pump type | Gears oil pump |
| Driving System | |
| Torque converter | Torque converter is power separating hydraulic-mechanic type. |
| Transmission | Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. |
| Steering clutch | The steering clutch is hydraulic pressed, usually separated clutch. |
| Braking clutch | The braking clutch is pressed by spring, separated hydraulic, meshed type. |
| Final drive | The final drive is two-stage planetary reduction gear mechanism, splash lubrication. |
