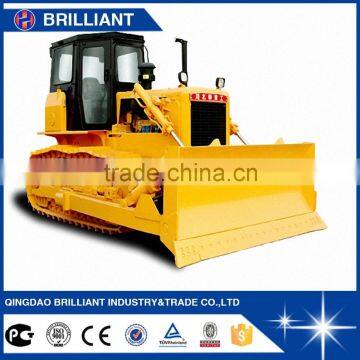

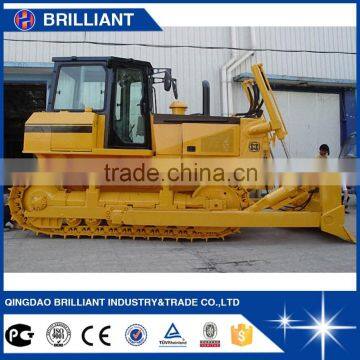

Top Brand Liugong Bulldozer Capacity 4m4 Bulldozer Remote Control

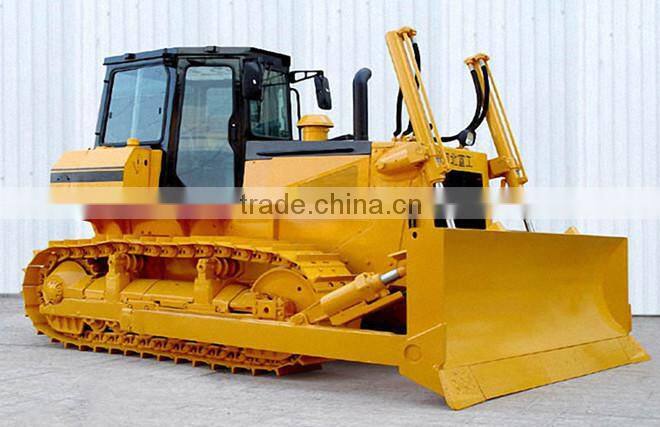

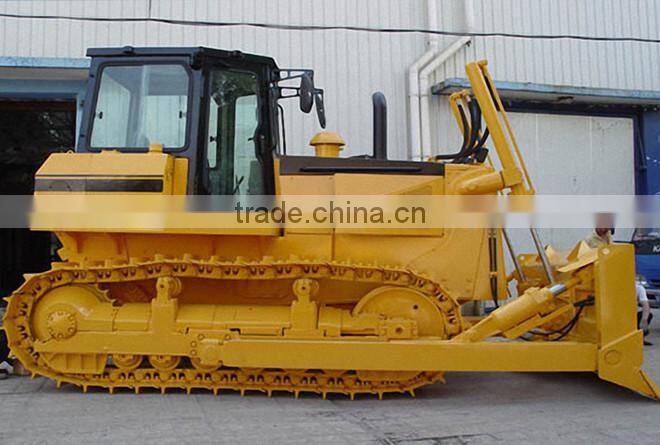

1,T140-1 bulldozer has characteristic of semi-rigid suspension, mechanical drive.
2,The main clutch is hydraulic boosted. With hydraulic pilot controlled, electric monitoring, good appearance.
3,It adopts Weichai WD10G type engine which is strong power, low fuel consumption and complete accessories.

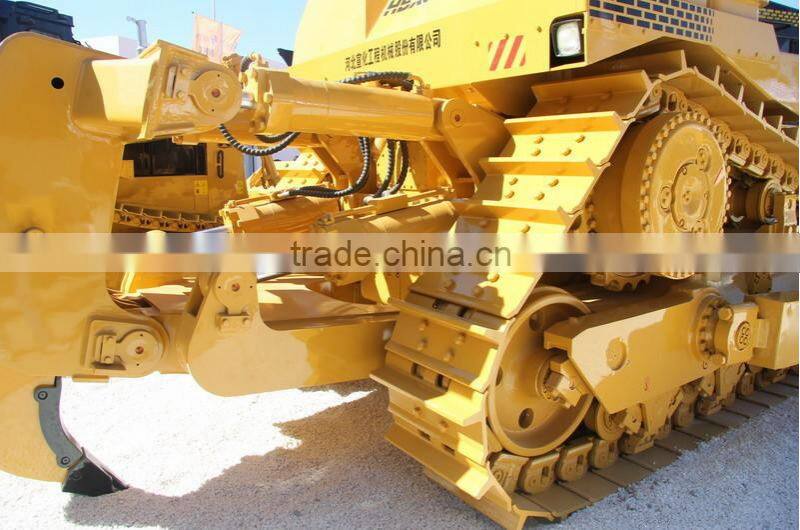

4,It can be equipped with three shanks ripper, U-blade (7.4 cubic meter capacity) and other optional components.
| Specification | |||
| Dozer | Angle | Tilt | |
| Operation weight | kg | 16600 | 16500 |
| Ground pressure | kpa | 63.3 | 62.9 |
| Track gauge | mm | 1880 | 1880 |
| Min. Ground clearance | mm | 400 | 400 |
| Gradient | 30/25 | 30/25 | |
| Dozing capacity | m3 | 4 | 4.5 |
| Blade width | mm | 3762 | 3297 |
| Max.digging depth | mm | 400 | 400 |
| Overall dimensions | mm | 5486X3762X2842 | 5336X3297X2842 |
| Engine | ||
| Type | WD10G156E26 | |
| Rated revolution | rpm | 1800 |
| Reted power | KW | 104 |
| Max. Torque | N.m/rpm | 780/1000-1200 |
| Rated fuel consumption | g/KW.h | ≤ 215 |

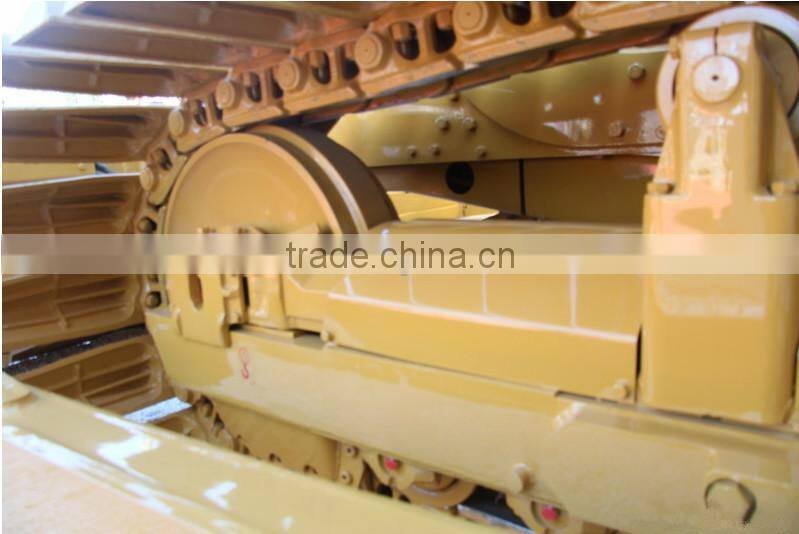

| Undercarriage system | ||
| Type | 203 | Swing type of sprayed beam. Suspended structure of equalizer bar. |
| Number of track rollers (each side) | 6 | |
| Number of carrier rollers (each side) | 2 | |
| Pitch | mm | 203 |
| Width of shoe | mm | 500 |
| Gear |
| 1st | 2nd | 3rd | 4th | 5th | |
| Forward (Km/h) | 2.52 | 3.55 | 5.68 | 7.53 | 10.61 |
| Backward (Km/h) | 3.53 | 4.96 | 7.94 | 10.53 |
| Implement Hydraulic System | ||
| Max. system pressure | Mpa | 11.76 |
| Pump type | CBF-E1009(reverse) | |
| System output | L/min | 180 |
| Driving System | |
| Main clutch | Normally opened, wet type,, hydraulic booster control |
| Transmission | Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission have five forward and four backward speeds. |
| Steering clutch | Multiple-disc oil power metallurgy disc compressed by spring. Hydraulic operated. |
| Steering brake | Brake is oil two direction floating band brake operated by mechanical foot pedal. |
| Final drive | The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo- |
The warranty period is one year.
Please be assured that we will provide excellent service under the warranty period:
Send the new spare parts by air express once our customers request an urgent replace of broken parts under warranty;
Send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance;
Arrange engineers to service machinery overseas in case our customers are in need help for installation and training.
Our packing and shipping are professional and dependable!
Qingdao Brilliant Industry & Trade Co., Ltd
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.
| SGS Serial NO. | QIP-ASI145346 |
| Audit Date | 2-Jul-14 |
| Company Name | Qingdao Brilliant Industry & Trade Co., Ltd. |
| Business Type | Manufacturer |
| Year of Establishment | Mar 14,2014 |
| Registered Capital | 83468.27 USD |
| Products | Excavator, Wheel Loader, Bulldozer, Forklift and so on |
| Number of Employees | 5-10 |
| Main Markets | Africa, Asia,Europe,South America |
Sales Personnel: Grace
Tel: 0086-532-80907506
Fax:0086-532-82801885
Skype:brilliantmachinerygrace
Any comment&question,please contact with us freely!
We will try our best to meet your request!
Thanks for your valuable time!
