Brand New Bulldozer/ Used Cheap Bulldozer Track Roller for Sale

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao Shanghai Shenzhen
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	HBXG
Model Number	T165-3	Condition	New
Moving Type	Crawler Bulldozer	Machine Weight	17200kg
Dimension(Long * Breadth * High)	5416X3297X3160mm	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Brand New Bulldozer/ Used Cheap Bulldozer Track Roller for Sale

Product Description

Our 17 ton Bulldozer (Model:T165-3) is Semi-rigid suspended, mechanical transfer, hydraulic controlled track-type bulldozer.

Oil booster control clutch, normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds. Single lever pilot hydraulic controls implement. Superior cabin is designed with streamline outlook and electric monitor. Been Popular among customers by its many merits such as productive efficiency, easy operated, low maintenance cost.

T165-3 will be the ideal choice for transportation, desert working, oil field, electric power, mine project, etc.

It can be equipped with three shanks ripper, U-blade (7.4 cubic meter capacity) and other optional components.

Main Parameters

Specification
Blade	Straight and tilting	Angular Blade
Ground pressure (kpa)	66.7	67
Min. ground clearance (mm)	352.5	352.5
Dozing capacity (m3)	5	4.9
Max. digging depth (mm)	420	377
Operation weight (kg)	17200	17300
Track gauge (mm)	1880	1880
Gradient	30°/25°	30°/25°
Blade width (mm)	3297	3762
Overall dimensions (L×W×H)(mm)	5416×3297×3160	5716×3762×3160

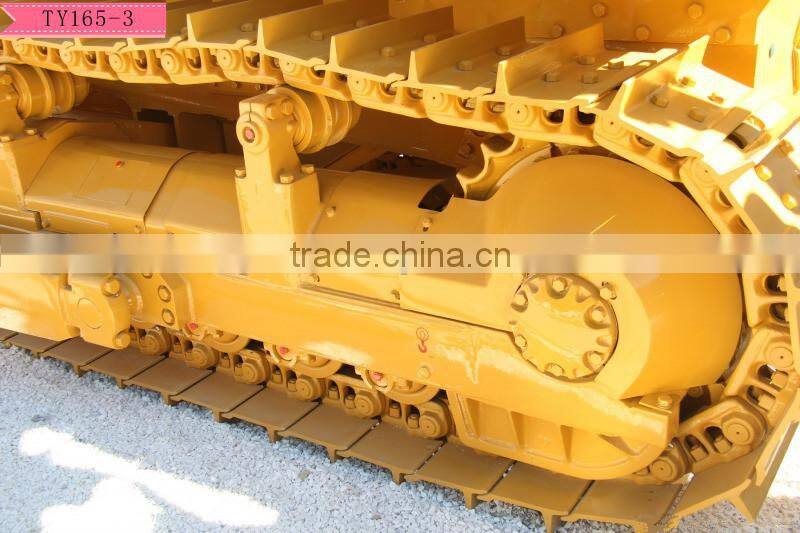

Undercarriage System
Type	Swing type of sprayed beam, suspended structure of equalizer bar.
Number of track rollers (each side)	6
Number of carrier rollers (each side)	2
Pitch (mm)	203
Width of shoe (mm)	500

Gear
	1st	2nd	3rd	4th	5th
Forward (Km/h)	0-2.50	0-3.30	0-5.68	0-7.53	0-10.64
Backward (Km/h)	0-3.53	0-4.61	0-7.94	0-10.53

Engine
Engine Name	Weichai WD10G178E25
Rated revolutio (rpm)	1850
Flywheel power (KW)	121
Max. torque (N.m/rpm)	830/1000-1200
Rated fuel consumption (g/kw.h)	≤215

Implement Hydraulic System
Max. system pressure (MPa)	12
System output (L/min)	185
Pump type	Two groups Gears pump

Driving System
Main clutch	Normally opened, wet type, hydraulic booster control.
Transmission	Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.
Steering clutch	Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.
Braking clutch	Brake is oil two direction floating band brake operated by mechanical foot pedal.
Final drive	The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.

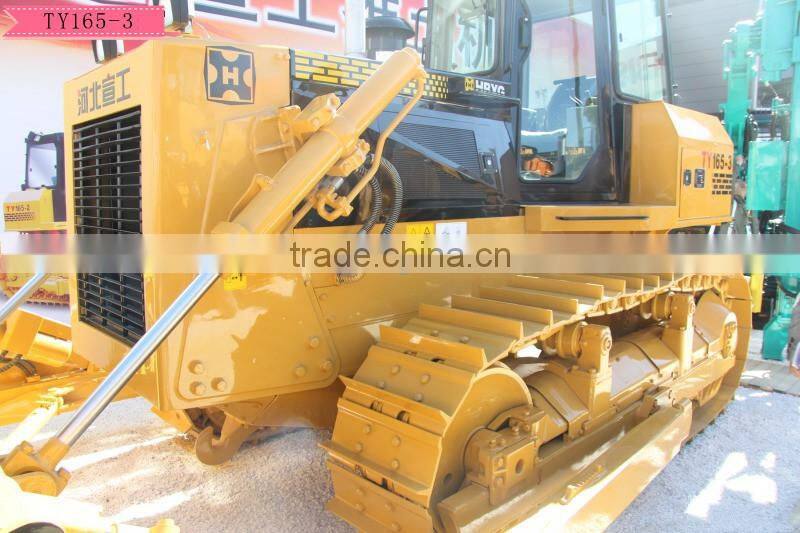

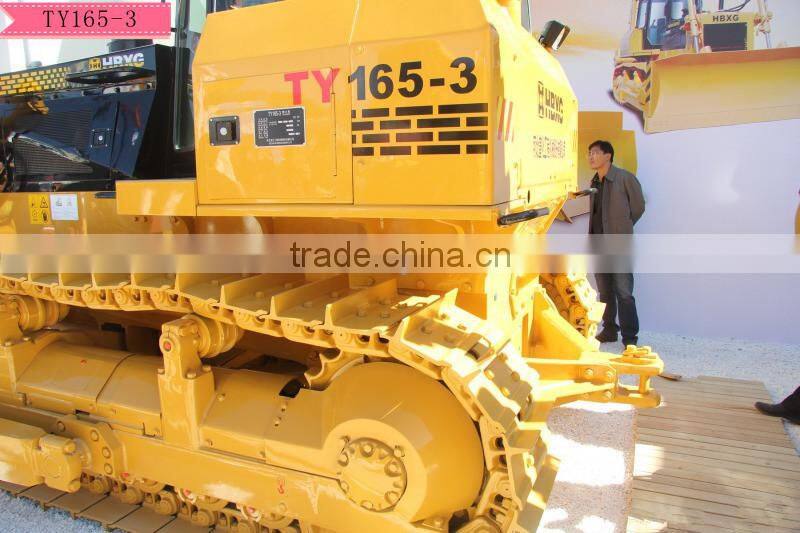

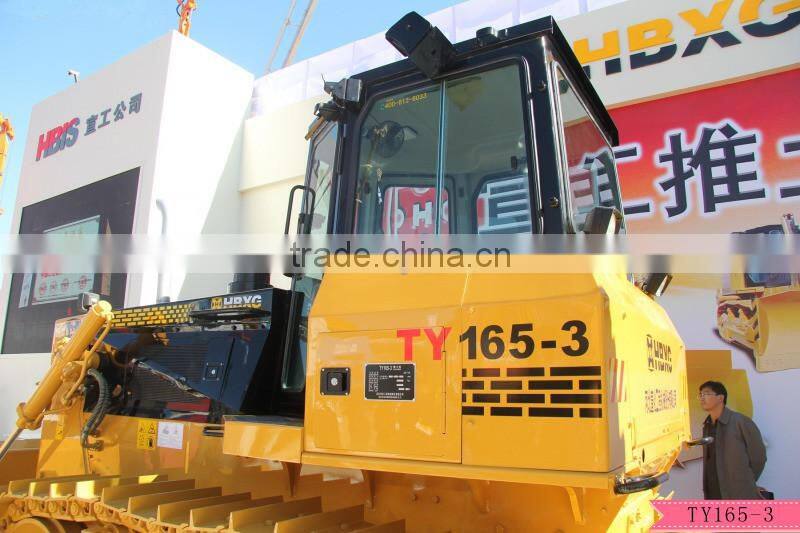

Finished Products

Warranty

The warranty period is one year.

Please be assured that we will provide excellent service under the warranty period:

Send the new spare parts by air express once our customers request an urgent replace of broken parts under warranty;

Send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance;

Arrange engineers to service machinery overseas in case our customers are in need help for installation and training.
