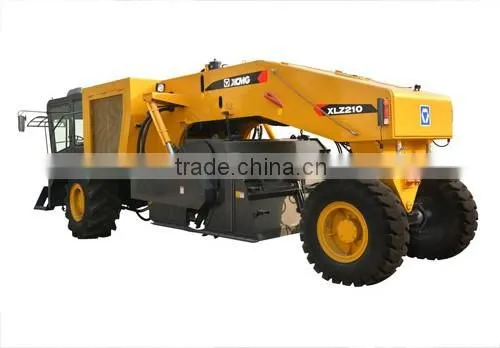

XCMG XLZ210 Road Reclaimer (pavement cold recycling machine)
Rated power:338kw
Work speed:0~2.5m/min
Travel speed:0~18.5km/h
XLZ210 pavement cold recycling machine is a kind of multifunctional road maintenance equipment. It can upgrade the old asphalt pavement and also applicable to the onsite stabilized soil mixing operation for the subgrade and subbase of highways, urban roads, airports, ports, and parking lots.
Features:
• It adopts Weichai WP12N engine, which features advanced fuel system and inlet and exhaust system, National Ⅲ emission standards, strong power and good performance.
• The hydraulic system adopts imported product of world-famous brand, which has the advantages like high allowed pressure, high efficiency, low noise, and complete functions; the pump is integrated with pressure limit valve, high-pressure safety valve, bypass valve and etc, which simplifies the hydraulic system for easy installation and service.
• The working devices can operate near the road shoulder, so that the machine can be widely used; the water spray device with self-suction function is of high measuring accuracy and convenient to operate; the rotor housing of optimized design has small resistance; the specially designed milling and mixing rotor has good quality and strong milling and mixing capability.
• It adopts the Meritor drive axle which has advanced design, reasonable structure, and reliable manufacturing quality.
• The cab is installed at the front which has a wide view; it is equipped with audio system, luxury seat, air conditioner, warm-air blower, and etc. providing a comfortable environment for higher work efficiency.
• The steering system has multiple steering modes like front axle steering, rear axle steering, and combined steering, which increases the effective work time.
• It is also equipped with a high-pressure cleaning device which is convenient to clean the attached scraps and dirt.
• The engine housing made of metal materials features good heat dispersion; the multiple service doors is convenient for the service and maintenance of the engine system.
|
Technical Parameters |
| Product Model | XLZ210 | ||
|---|---|---|---|
| Max. milling & mixing width | mm | 2100 | |
| Max. milling & mixing depth | mm | 400 | |
| Milling & mixing rotor | No. of blades | 174 | |
| Rotor diameter | mm | 1350 | |
| Engine | Model | WP12.460 N | |
| Rated power | kW | 338 | |
| Rated revs | rpm | 1900 | |
| Parameters | Work speed | m/min | 0-2.5 |
| Travel speed | km/h | 0-18.5 | |
| Gradeability | % | ≥20%(11,3°) | |
| Ground clearance | mm | 400 | |
| Work weight | Kg | 21000 | |
| Capacity | Fuel tank | L | 600 |
| Hydraulic oil tank | L | 430 | |
| Water tank | L | 600 | |
| Working devices | Installed in the middle | ||
| Travel system | Tire | ||
| Min. turning radius | m | 7.35 | |
| Dimension (L*W*H) | mm | 9227×2954×3290 | |
Product Photo
| Packaging Details: | nude |
| Delivery Detail: | within 15 days after prepayment |
Shandong Dorson Hydraulic Co.,ltd (former name Jining Automobile Spare Parts Co.,ltd, established in 1956) which developed into private joint-stock company that specialized in producing the excavator parts including idler cushion, front idler, sprocket, track roller, carrier roller, rotary joints, hydraulic redirector, cycloid motor, one-piece multi-way valve, central rotary joints since 1998.
Shandong Dorson Hydraulic Co., ltd located in Jining City, Shandong Province —— the home town of Confucius and Mencius &the country of Courtesy. our company is a professional manufacture engaged in research &development, production and sale which founded by modern enterprise system. Covers an area of 40,000 square meters, we staff more than 200 skillful personnel including 120 with high education and equipped with advanced production,testing& inspection equipments.
Shandong Dorson Hydraulic Co., ltd adhere to the principle that“winning the market with our sincerity, meeting the challenge with our quality, broadening the market with our service” We are dedicated to revitalizing this national industry
why choose us
1. Our company started factory many years.
2. Export to over 30 countries/region, especial in whole Europe and Australia market
3. Over 200 employees work in shift ensure the punctual delivery time
4. R&D team is qualified to do customized project, OEM services
5. Inspection is carried out all through the production process
6. Export sales team is professional to serve customers, quick respond and excellent after-sales
7. Convenient and economy transportation, ship from Qingdao or Tianjin sea port of China, very convenient
8. CE & ISO9001 Certificate
9 .More easy wear spare parts will be attached with the truck crane for free
10. Our factory can do urgent order for customers with high quality if you need the crane badly
Contact us for more detailed information!
