Asphalt Road Milling Machine for sale, 500mm Milling width ,200mm depth
Rated power:92kw
Operating speed:0~25m/min
Product feature
DORSON milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
• Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
• Three-wheeled full driving moving system and the hydraulic differential lock can ensure to be suitable for the poor road conditions with stepless transmission and highlow shift gears,to meet the fast transfer and milling operation requirement .
• The steering of the single front wheel ,with small turning radius ,can mill along the manhole covers.
• The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
• The imported hydraulic parts and reducers have high working reliability.
• Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
• Hydraulic handheld breakers and rumble strip equipment can be selected.
| Model | XM50 | ||
|---|---|---|---|
| Max. milling with | mm | 500 | |
| Max. milling depth | mm | 0-200 | |
| Milling wheel | Number of tools | 52 | |
| Drum diameter with tools | mm | 720 | |
| Engine | Model | 4H125-1G3 | |
| Rated power | kW | 92 | |
| Rated speed | rpm | 2500 | |
| Specifications | Operating speed | m/min | 0~25 |
| Travel speed | kmh | 0~8 | |
| Ground clearance | % | 60 | |
| Ground clearance | mm | ≤120 | |
| Operating weight | kg | 7000 | |
| Volume | Fuel tank | L | 140-200 |
| Hydraulic oil tank | L | 90 | |
| Water tank | L | 400-600 | |
| Conveyor | Width | mm | |
| Measurement | Overall machinery LxWxH | mm | 3150×1750×2300 |
| Conveyor LxWxH | mm | ||
| Travel mode | Tire | ||

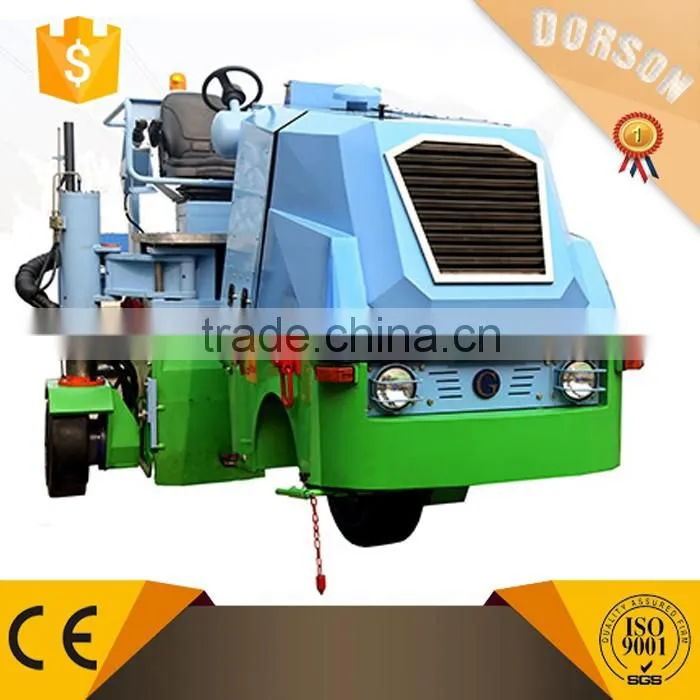

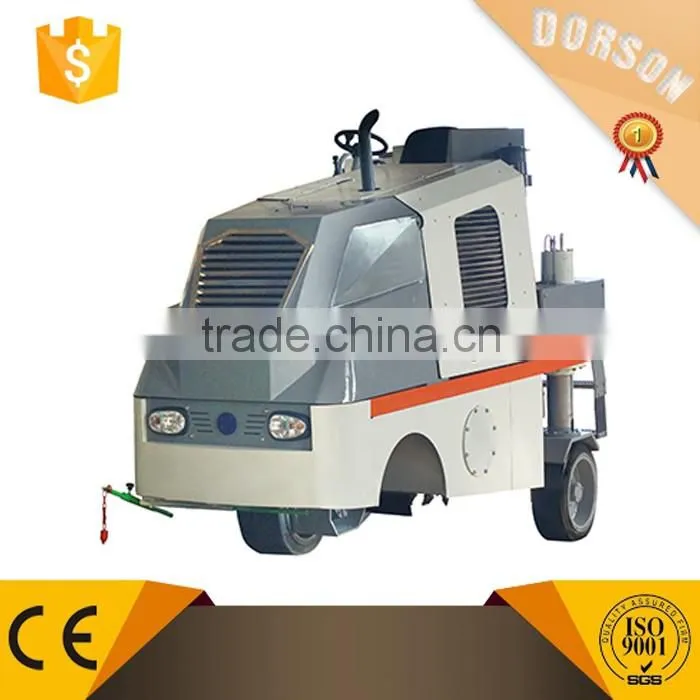

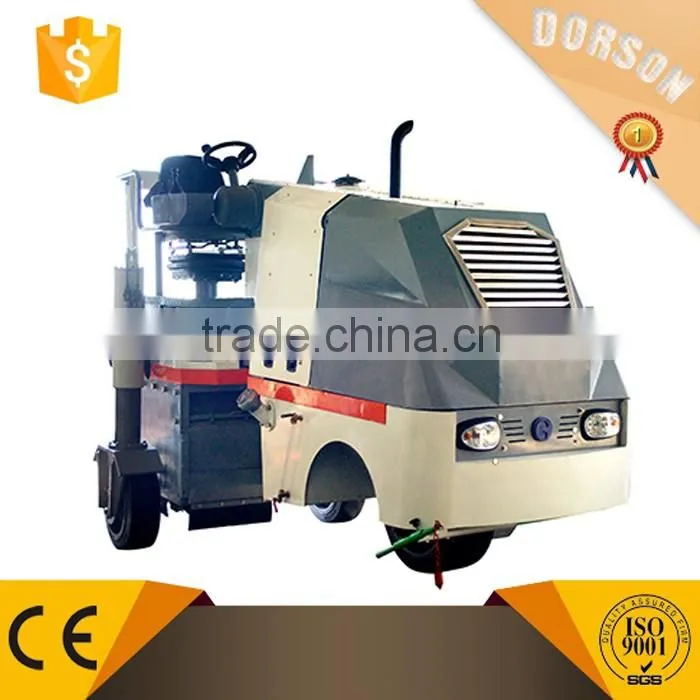

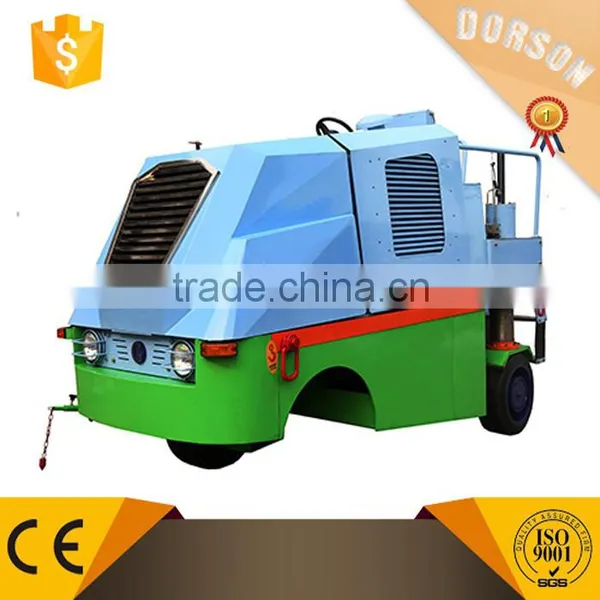

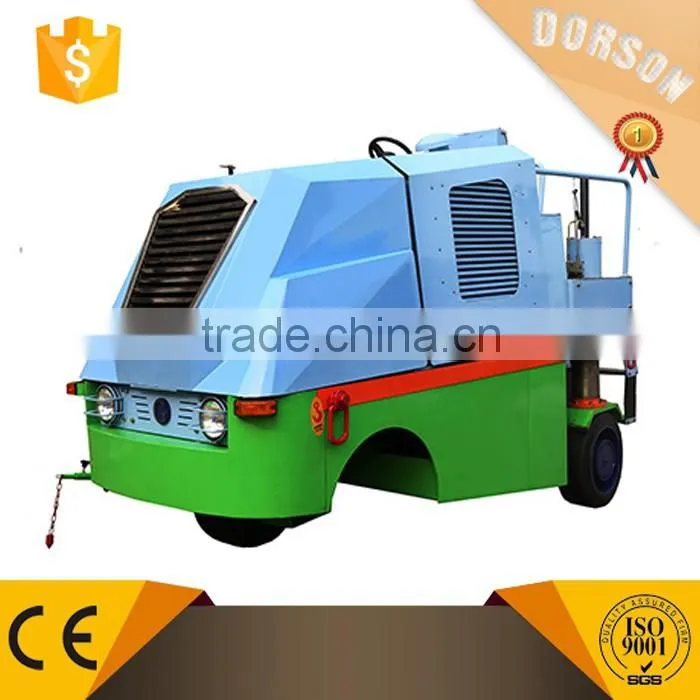

Product Photos
| Packaging Details: | nude |
|---|---|
| Delivery Detail: | within 15days after the payment |
Shandong Dorson Hydraulic Co.,ltd (former name Jining Automobile Spare Parts Co.,ltd, established in 1956) which developed into private joint-stock company that specialized in producing the excavator parts including idler cushion, front idler, sprocket, track roller, carrier roller, rotary joints, hydraulic redirector, cycloid motor, one-piece multi-way valve, central rotary joints since 1998.
