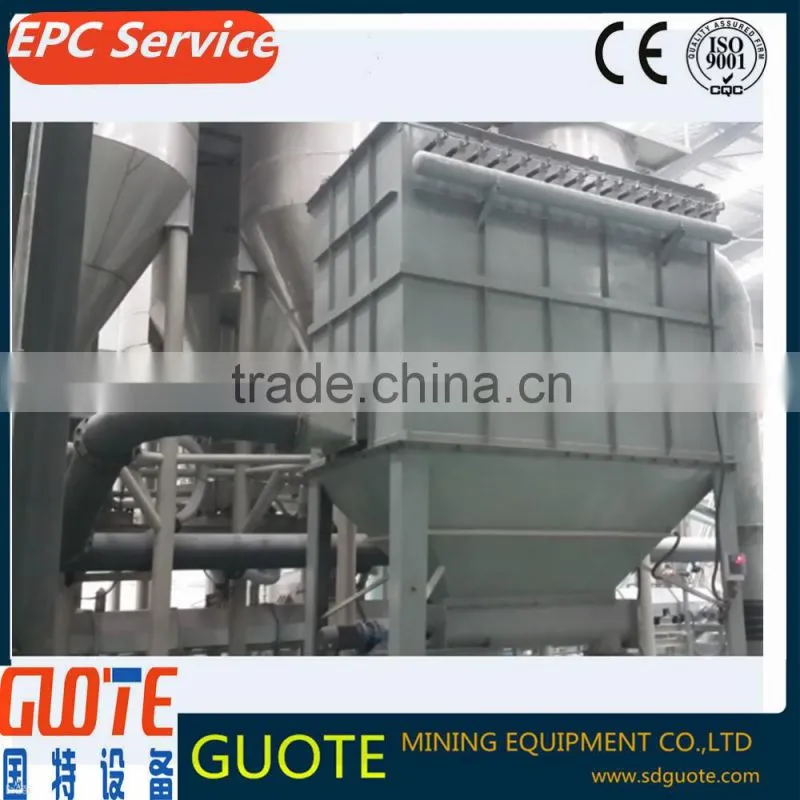

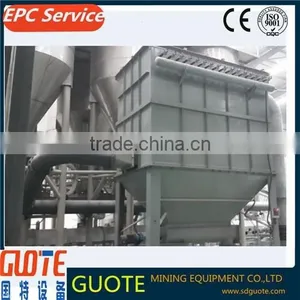

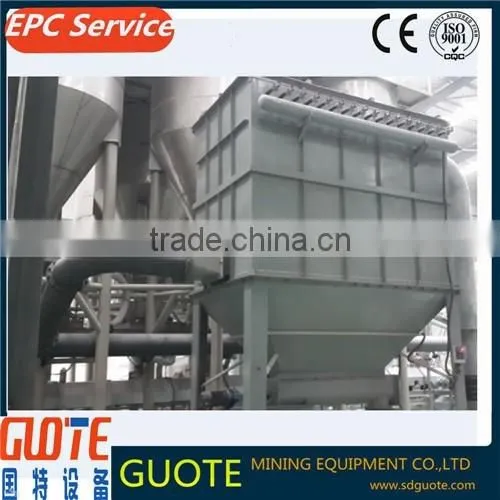

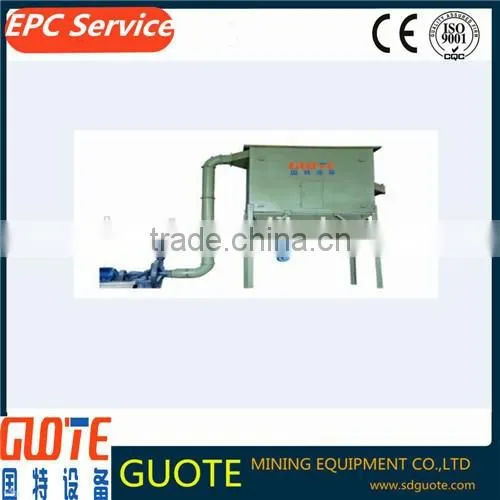

MDC filter cartridge type industrial dust collector for silica sand
APPLICATION
This product is widely used in cement,mineral processing,electronics, chemical industry ,food processing, metallurgy, casting, carbon materials, machinery processing, wood for building materials industry.
OPERATIONAL PRINCIPLE
Dust containing gas from the inlet into the dust collector, box, through filtration bag, the dust and gas separation, the dust is adsorbed on the surface of clean air through the filter bag.Filter bag is discharged from the air outlet,deposition in more dust and the bag surface increased with time, according to the injection procedure setting, pulse jet valve receives issued by the controller, in order to trigger the opening, gas bag of compressed air ejected from the moment each hole blowing pipe, the scripture’s jet to corresponding filter bag, filter bag dust adsorbed on the surface dust fall off, fall into the bucket, the discharged ash valve or directly into the cabin.
TECHNICAL PARAMETER
MODEL |
symbols and data |
|||||||||||
A |
B |
C |
D |
E |
G |
H |
I |
K |
L |
M |
N |
|
MDC-24 |
1450 |
1000 |
560 |
1410 |
960 |
2306 |
2575 |
466 |
441 |
339 |
400 |
300 |
MDC-36 |
1450 |
1400 |
755 |
1410 |
1360 |
2306 |
2575 |
466 |
441 |
339 |
400 |
300 |
MDC-48 |
1450 |
1800 |
955 |
1410 |
1760 |
2306 |
2575 |
870 |
840 |
339 |
800 |
300 |
MDC-60 |
1450 |
2200 |
1155 |
1410 |
2160 |
2306 |
2575 |
870 |
840 |
339 |
800 |
300 |
MDC-72 |
1450 |
2600 |
1400 |
1410 |
2560 |
2306 |
2575 |
870 |
840 |
339 |
800 |
300 |
MDC-84 |
1450 |
3000 |
1555 |
1410 |
2960 |
2306 |
2575 |
1270 |
1240 |
339 |
1200 |
300 |
MDC-92 |
1450 |
3500 |
1855 |
1410 |
3450 |
2306 |
2575 |
1270 |
1240 |
339 |
1200 |
300 |
MDC-108 |
1450 |
3900 |
2035 |
1410 |
3850 |
2306 |
2575 |
1450 |
1400 |
339 |
1360 |
300 |
MDC-120 |
1450 |
4300 |
2235 |
1410 |
4250 |
2306 |
2575 |
1450 |
1400 |
339 |
1360 |
300 |
MDC pulse bag type dust collector | |||||||||
technical parameter |
model and specifications |
||||||||
MDC-24 |
MDC-36 |
MDC-48 |
MDC-60 |
MDC-72 |
MDC-84 |
MDC-92 |
MDC-108 |
MDC-120 |
|
filtration area/ m² |
18 |
27 |
36 |
45 |
54 |
63 |
72 |
81 |
90 |
the number of the filter bags/pcs |
24 |
36 |
48 |
60 |
72 |
84 |
96 |
108 |
120 |
bag specifications/mm |
Φ127×2000 |
||||||||
working temperature/℃ |
<120 |
||||||||
equipment resistance/Ω |
1000-1500 |
||||||||
dedust efficiency |
99% |
||||||||
the dust concentration at the inlet mg/m³ |
<15 |
||||||||
filtration velocity m/min |
0.5-4 |
||||||||
airflow m³/h |
540-4300 |
810-64800 |
1080-8640 |
1350-10800 |
1620-12900 |
1890-15100 |
21600-17200 |
2430-19400 |
2700-21600 |
blowing air pressure /pa |
0.5-0.7 |
||||||||
pulse valve/pcs |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
pulse width/s |
0.1-0.2 |
||||||||
pulse period/s |
60-120 |
||||||||
pulse interval/s |
1-5 |
||||||||
dimension/mm×mm×mm |
1100*1685*2527 |
1500*1685*2527 |
1900*1685*2527 |
2300*1685*2527 |
2700*1685*2527 |
3100*1685*2527 |
3600*1685*2527 |
4000*1685*2527 |
4400*1685*2527 |
PACKAGING & SHIPPING
1 Packaging: Specially made wooden boxes and containers
2 Shipping: Forty days after receiving initial payment
OUR SEVICES
1 We will provide non metallic ore EPC turnkey project services.
2 According to customer's requirement, you can customize your private model.
3 You can make the complete test
4 We will respect your reasonable requirements
COMPANY INFORMATION
Weifang GUOTE Mine Equipment . is professional and modern enterprise including research and development, engineering design, production and installation, debugging services , automatic control equipment, non-metallic mineral production line test, design, consultation and the complete line of delivery.The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces, autonomous region.
Our product have electromagnetic, permanent magnetic separator, dry wet magnetic separator,electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
Facing the new opportunities and challenges, the company in line with the spirit of "honesty-oriented, mutual benefit, cooperation and innovation" , dedicated to providing “dependable,simple and efficient” products and services to customers, make enterprises become domestic advanced mining equipment manufacturer.
Our company is willing to work together with people from all walks of life for a better future.
FAQ
1.What main products do you supply?
l Ball mill with air classifier production line
l High pure sand making machine
l Air classifier
l Dust collector
l High gradient vertical ring magnetic separator
l Plate type magnetic separator
l Roller type permanent magnetic separator
l Metal detector
l Vibrating feeder
2 Are you a trading company or factory?
We are professional manufacturer of non-metallic minerals
EPC dressing turnkey service in Shandong,China. You are
welcome to visit our factory and discuss for further
business.
3 Delivery date for my order?
10 to 15 days for small size machine; 30 to 40 days for large
size machine.
4 How about your payment methods?
Our payment methods are T/T, Western Union, Money Gram,
Cash, Paypal etc.
5. How do you handle the shipment for my order?
Express, we offer express service ( DHL, UPS, Fedex, TNT&
EMS), it’s the fastest way to receive your order; Air or Sea, we
can send your order by air or sea. Its the most economic way
to receive your order.
6. What is your company warranty policy?
We offer 12 months warranty. For regular customers, we always offer them lifetime warranty.
7. Do you offer any replacement for my order?
Yes, we will offer you the replacements based on the model and quantity you are going to order.
8. How can I contact to you?
You can contact us by e-mail on alibaba or whatsapp
+86 18853617214.
