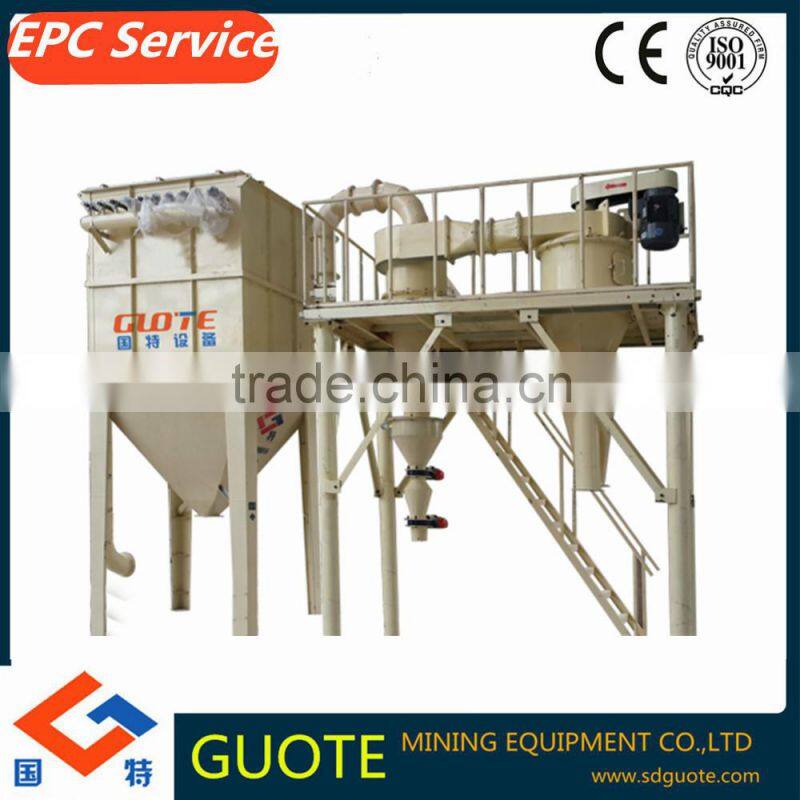

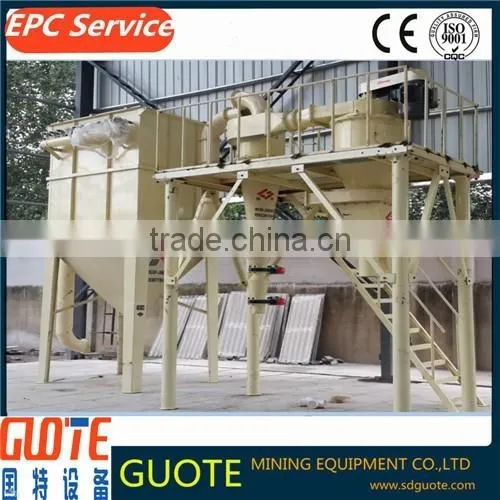

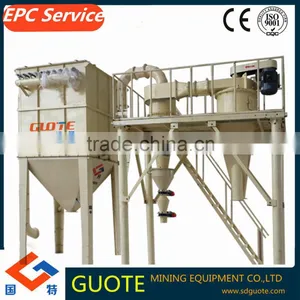

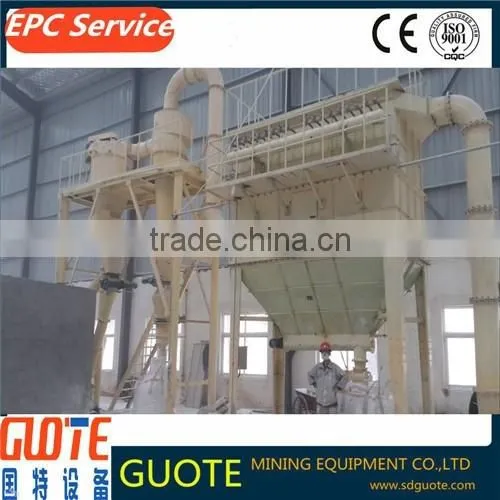

Germany technology GF-300 Air Classifier with CE
Airflow separator rotary air classifiers with high Efficient and energy saving/ Best Quality Multi-Grade Air Classifier for Silica Sand Powder / Vertical air classifier high quanlity air grade machine for Dry powder 2-150 micron classifying
Best Quality Air Classifier(up to 1um) for mining in China / Air Quartz Classifier of classifying wheel 450 mm with GF-300 CLASSIFIER / GF-300 Air Classifier
Applications of Air Classifiers:
Our air classifiers, which include self-diffluent classifiers and multi-stage classifiers, are mainly used to sort materials by the combination of particle size, density and shape, etc.; and also used to wipe off impurities in powder materials. Specifically, air separators can be used for separating coarse materials in submicron powders and nano-powders.
Classification for sticky, low-fluidity substances is also possible.
Model |
Data |
Handing capacity(kg/h) |
Fineness (μm) |
Efficiency(μ=%) |
Main power(kw) |
GF-100 |
Two Stage |
50-200 |
2-150 |
75-95 |
3.7 |
|
There Stage |
30-150 |
2-150 |
75-95 |
5.2 |
GF-200 |
Two Stage |
300-800 |
2-150 |
75-95 |
8 |
|
There Stage |
200-700 |
2-150 |
75-95 |
13.5 |
GF-300 |
Two Stage |
600-1200 |
2-150 |
75-95 |
11 |
|
There Stage |
500-1000 |
2-150 |
75-95 |
16.5 |
GF-400 |
Two Stage |
1000-2500 |
2-150 |
75-95 |
13 |
|
There Stage |
800-2000 |
2-150 |
75-95 |
20.5 |
GF-500 |
Two Stage |
1500-3500 |
2-150 |
75-95 |
18.5 |
|
There Stage |
1200-3000 |
2-150 |
75-95 |
33.5 |
GF-600 |
Two Stage |
2500-5000 |
2-150 |
75-95 |
29.5 |
|
There Stage |
2000-4000 |
2-150 |
75-95 |
51.5 |
Common Features of Guote Air Classifiers:
1. Low energy consumption: Our air classifiers can save as much as 50% energy comparing to traditional vertical type or horizontal type classifiers.
2. High production efficiency: our air classifier combined the advantages of inertial classification technology and centrifugal classification technology.
3. High precision classification help guarantee that there is no oversize granularity and remains, etc. in finished products.
4. Longer service life: our air classifier has a low rotation speed while classifying materials in the same size, which help reduce the wear of impellers.
5. Full range of specifications: different air classifiers will be offered for your different needs.
6. Can be matched-use with wide variety of grinding mills, like ball mills, Raymond mills, impact mills or jet mills, etc.
7. Eco-friendly: No dust pollution for negative pressure production environment.
8. High automation gives a simple operation and stable performance.

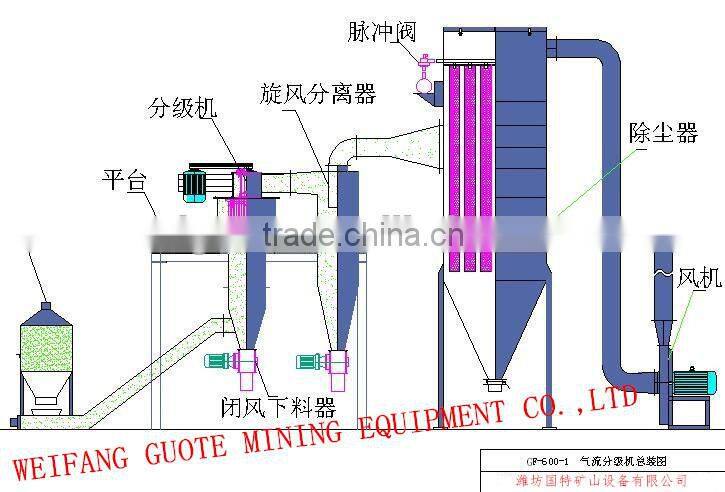

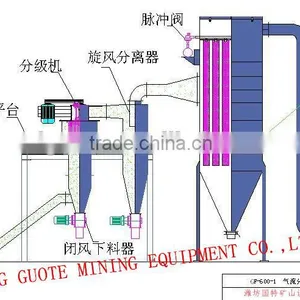

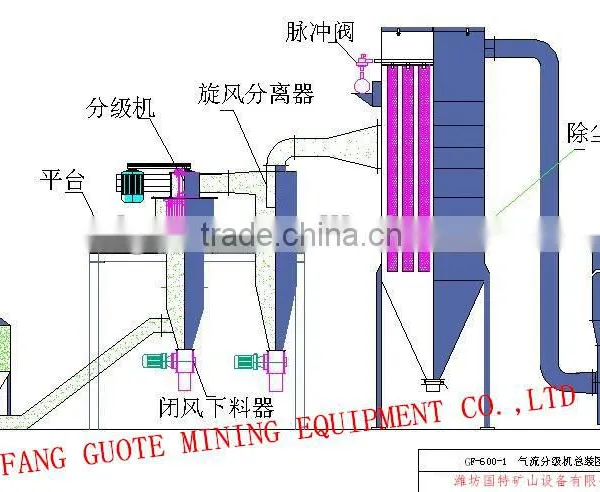

Working Principle of Air Classifiers:
Materials are fed into self-diffluent classification system for first time separating: majority coarse materials will be separated and the remained coarse materials will be sorted out in second time classifying. Qualified powders will be collected together and coarse materials will be discharged from dump valves.
standard export container,20GP,40GP ,40HQ,FR container,in bulk, the spare parts in wooden case
or according to the customer's requirements
|
Weifang Guote Mining Equipment Co., Ltd is a modern enterprise who produces quartz sand, silica powder, potassium and sodium feldspar, calcium carbonate special equipment, provides non-metallic mineral production line test, design, consulting and the entire line of supply and dose the research and development, engineering design, production and installation, commissioning services. The scope of our services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles, food, cement, etc. Our products are sold more than thirty provinces and autonomous regions in domestic market.
Our company main products are: wet milling (rod milling) production line, dry milling with air classifier production line, highpurity quartz sand machine, electromagnetic, permanent magnetic separator, dry wet magnetic separator, vibrating feeder, air classifier, dust collector, hydraulic classifier, scrubbing, flotation machine, metal detector, screw conveyor, governor quantitative feeding meter, centralized control systems, etc. Faced with new opportunities and challenges, our company Guote will continue to take the spirit of "honesty, mutual benefit, cooperation and innovation," and dedicate to provide customers with "reliable, simple, efficient" products and services to enable our company to become a leading provider of non-metallic mining equipment.
Our company Guote is willing to work together with people from all walks of life go hand in hand, to create a better future.
|
Name:Anne Chang
Skype:anna1983cyj
Tel:+0086-18678029069
Fax:+0086-0536-3163838
Mobile:+8618678029069
Wechat:18678029069
Weifang Guote Mining Equipment Co.,Ltd
Address:Dongjing Road East,Economic Development Zone,Qingzhou City,Shandong Province,China
