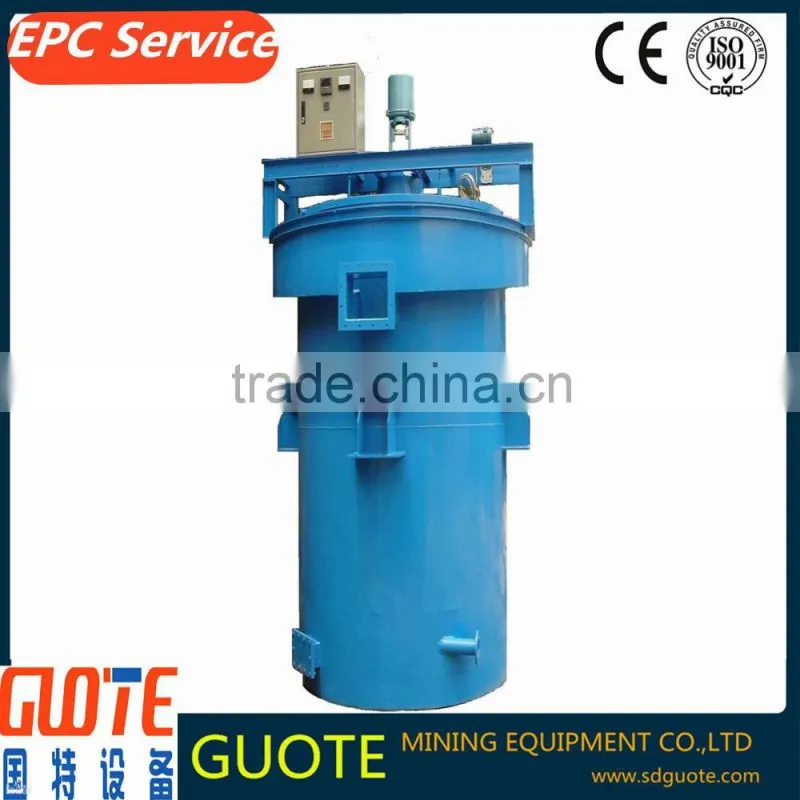

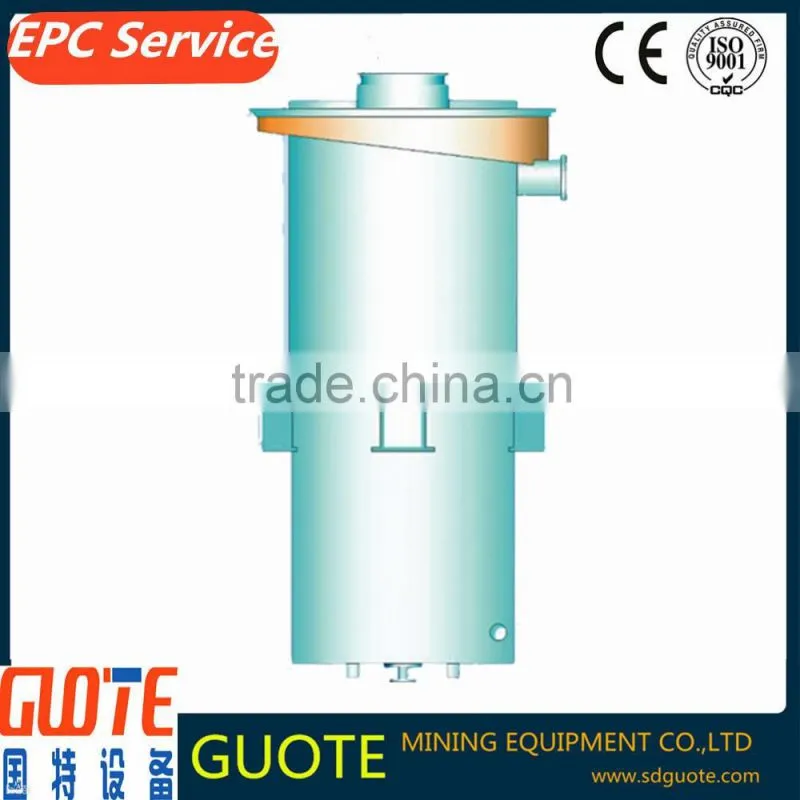

GSC series hindered settling machine
To know more about us, please call me:+86 18678029069:
Mineral Processing EPC & Machinery | Mine Design & Research
Annie Chang | Sales Manager
Dongjing Road East, Cell/ WhatsApp: +86 18853516269
Economic Development Zone, Wechat/zalo:+86 18615035214
qingzhou city , 262500, China Mail: yujuan391@163.com
Weifang Guote Mining Equipment Co., Ltd
We use the best quality, most favorable price, timely delivery period and the best after-sales service to meet every customer is our only aim.
Application
1 Strict classification of silica s or other coarse fine minerals
2 Used for separation of minerals with with density differences
Working principles
separating according to different settling velocity in the water due to different particle size, density or shape of minerals
Equipment characteristics
l Achieve the purpose of particle classification and specific weight separation
l Changing the particle classification by adjusting the parameter of automatic control system
l Because of special device of water tank, when the water cut off, the inlet holes will be shut off.So the materials can not avoid the inlet hole and enter the water tank.
Main technical parameters
Model |
Feeding size mm |
Feeding concentration % |
Classification range mm |
Capacity t/h |
Water consumption m³/h |
Weight kg |
GSC-1500 |
40-60 |
0.1-1 |
10-15 |
60-120 |
2040 |
|
GSC-1800 |
40-60 |
0.1-1 |
15-20 |
90-150 |
2880 |
|
GSC-2100 |
40-60 |
0.1-1 |
20-25 |
120-180 |
3370 |
|
GSC-2250 |
40-60 |
0.1-1 |
25-30 |
180-240 |
3850 |
|
GSC-2400 |
40-60 |
0.1-1 |
30-40 |
200-300 |
4030 |
Detailed images
PACKAGING & SHIPPING
1 Packaging: Specially made wooden boxes and containers
2 Shipping: fifteen days after receiving initial payment
OUR SEVICES
1 We will provide non metallic ore EPC turnkey project services.
2 According to customer's requirement, you can customize your private model.
3 You can make the complete test
4 We will respect your reasonable requirements
COMPANY INFORMATION
Weifang GUOTE Mine Equipment co.ltd. is professional and modern enterprise including research and development, engineering design, production and installation, debugging services , automatic control equipment, non-metallic mineral production line test, design, consultation and the complete line of delivery.The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces, autonomous region.
Our product have electromagnetic, permanent magnetic separator, dry wet magnetic separator,electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
Facing the new opportunities and challenges, the company in line with the spirit of "honesty-oriented, mutual benefit, cooperation and innovation" , dedicated to providing “dependable,simple and efficient” products and services to customers, make enterprises become domestic advanced mining equipment manufacturer.
Our company is willing to work together with people from all walks of life for a better future.
FAQ
1.What main products do you supply?
l Ball mill with air classifier production line
l High pure sand making machine
l Air classifier
l Dust collector
l High gradient vertical ring magnetic separator
l Plate type magnetic separator
l Roller type permanent magnetic separator
l Metal detector
l Vibrating feeder
2 Are you a trading company or factory?
We are professional manufacturer of non-metallic minerals
EPC dressing turnkey service in Shandong,China. You are
welcome to visit our factory and discuss for further
business.
3 Delivery date for my order?
10 to 15 days for small size machine; 30 to 40 days for large
size machine.
4 How about your payment methods?
Our payment methods are T/T, Western Union, Money Gram,
Cash, Paypal etc.
5. How do you handle the shipment for my order?
Express, we offer express service ( DHL, UPS, Fedex, TNT&
EMS), it’s the fastest way to receive your order; Air or Sea, we
can send your order by air or sea. Its the most economic way
to receive your order.
6. What is your company warranty policy?
We offer 12 months warranty. For regular customers, we always offer them lifetime warranty.
7. Do you offer any replacement for my order?
Yes, we will offer you the replacements based on the model and quantity you are going to order.
8. How can I contact to you?
You can contact us by e-mail on alibaba or whatsapp
+86 18853617214.
