Specifications
ISO 9001-2008.Over 8 years experience in manufacturing and designing of center drive clariflocculator.
ZXG series center drive clariflocculator is central driving, widely used for scraping and discharging sludge in round primary sedimentation tank, secondary sedimentation tank and concentrated tank, working diameter ranges from 8m to 20m. Center drive clariflocculator is specially designed for these applications. We have been over 8 years in manufacturing and designing of center drive clariflocculator since year 2006.
Working principle of center drive clariflocculator:
Sedimentation tank with conical bottom is made of concrete or steel, sludge pit is located at the tank center, connect with sludge pipe. Wastewater enter into tank through central steady flow tube. Sediment in water fall in tank bottom and is scraped and collected by scraper to central sludge collecting pit, and then is discharged through sludge pipe. Strong technical team and strict final inspections ensure excellent quality and long service life of center drive clariflocculator.

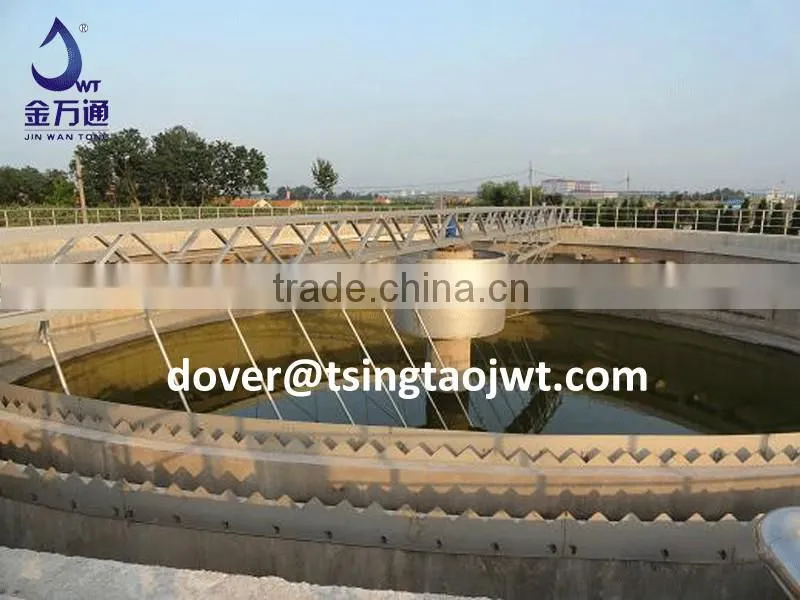

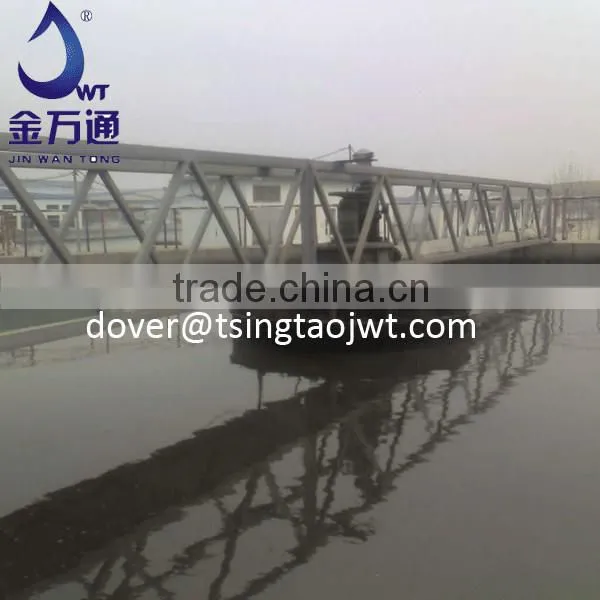

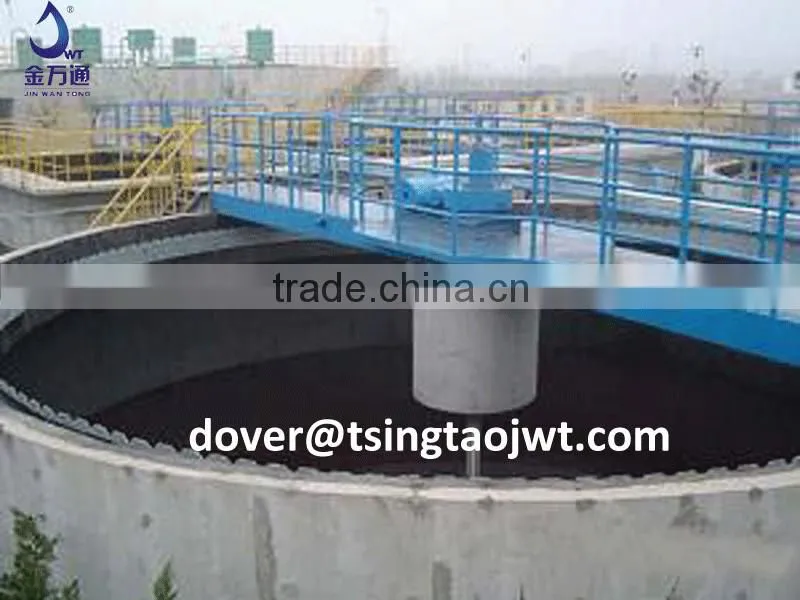

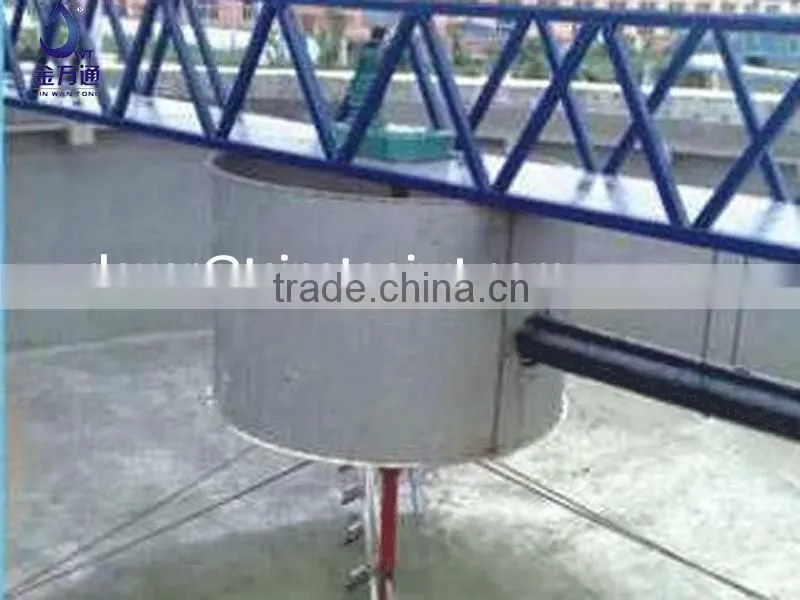

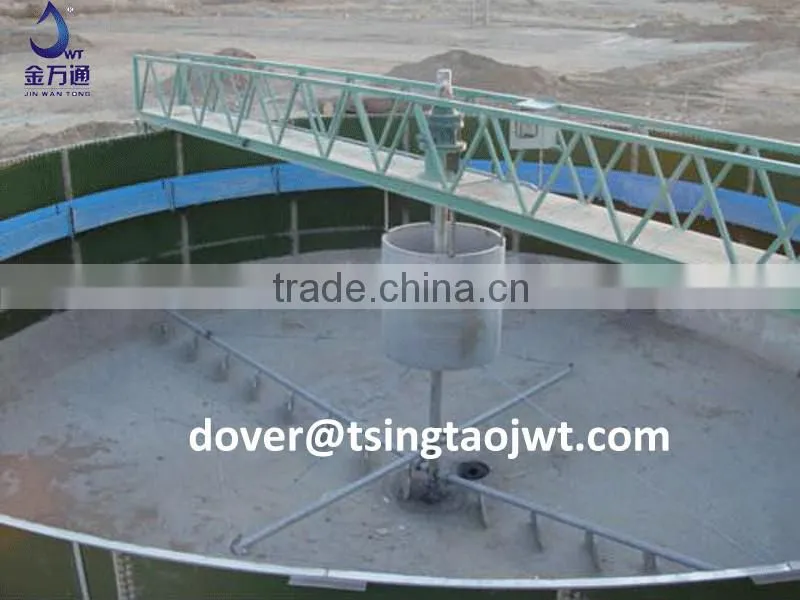

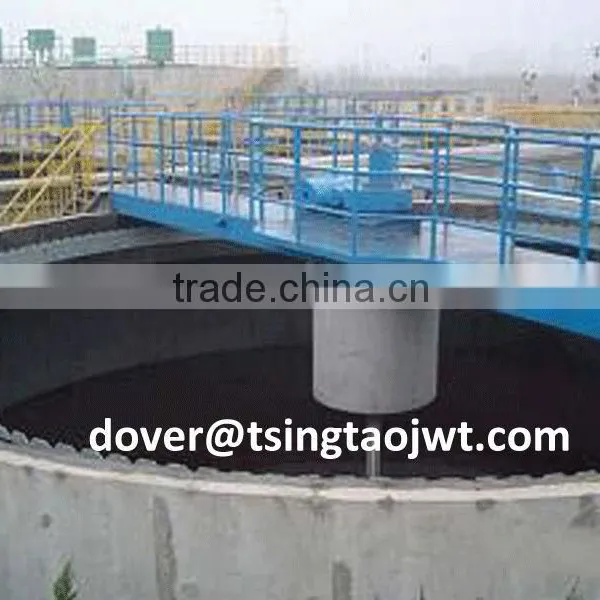

Detail images of center drive clariflocculator ZXG series:
Specification of center drive clariflocculator:
| Model | Tank Diameter(m) | Precipitation Area(m2) | Sludge Treatment Amount(m3/h) | Speed Ratio |
| ZXG-4 | 4 | 12.6 | 0.26 | 11033 |
| ZXG-6 | 6 | 28.3 | 0.59 | 11033 |
| ZXG-8 | 8 | 50.3 | 1.05 | 17051 |
| ZXG-10 | 10 | 78.5 | 1.64 | 20825 |
| ZXG-12 | 12 | 113 | 2.36 | 20825 |
| ZXG-14 | 14 | 154 | 3.21 | 24389 |
| ZXG-16 | 16 | 201 | 4.19 | 24389 |
| ZXG-18 | 18 | 254 | 4.76 | 24389 |
| ZXG-20 | 20 | 314 | 5.25 | 31433 |
