Specifications
electronic universal testing machine1.digital display type testing machine
2.single beam
3.Chinese servo motor driver
4.CE
WDS Jinan Tenson Digital display type Electronic testing machine 1KN 2KN 5KN
1. Products Introduction
This single beam digital display type UTM are suitable for tensile, compression tests of non-metal materials, like paper, rubber, plastic, cable wire, filament, composite material, plastic profile, spring, etc. It also can execute the other tests, like bending, shearing, peeling, friction, puncture test by adding relative optional accessories. It conforms to GB, ISO, JIS, DIN, ASTM, etc standards. It is an ideal testing machine for quality control department, scientific research, universities and colleges, industrial and mining enterprises.
2.Main technical parameters
|
Model Specification |
WDS-0.5 |
WDS-1 |
WDS-2 |
WDS-5 |
Range of testing force (kN) |
0.01-0.5 |
0.02~1 |
0.04~2 |
0.10~5 |
Accuracy of testing force |
±1% of indicated value |
|||
|
Resolution of crosshead displacement measurement (mm) |
0.01 |
|||
Speed Range of crosshead |
0.01mm/min~500mm/min, servo control |
|||
Effective testing space (mm) |
800 |
|||
Power supply |
Single phase, 220V±10%, 50Hz |
|||
Working environment |
Room temperature~40°C, relative humidity<80% |
|||
Overall dimension (mm) |
540×280×1450 |
|||
Weight (kg) |
300 |
|||
3. Function and Features:
Host machine
a. Single beam structure, exquisite and artistic
b. Tensile and compression grip for each one.
c. Full digital AC servo motor and driver
d. Precision lead screw and reducer, stable and low noise.
Measuring and control system
a. Auto zero: the master control system once receives the test start order, auto zero.
b. Auto gear shift: auto gear shift according to actual load.
c. Auto test: when setting finished, auto test.
d. Batch test: it supports batch test for same specification specimen
e. Auto print: when test finished, auto print test result.
f. Real time display: load force and curve could real time displayed
g. Limit protect: dual protection: program control and mechanical
h. Over load protection: when load over max. load capacity of 2%-10%, auto stop.
i. Emergency stop: emergency stop button is available

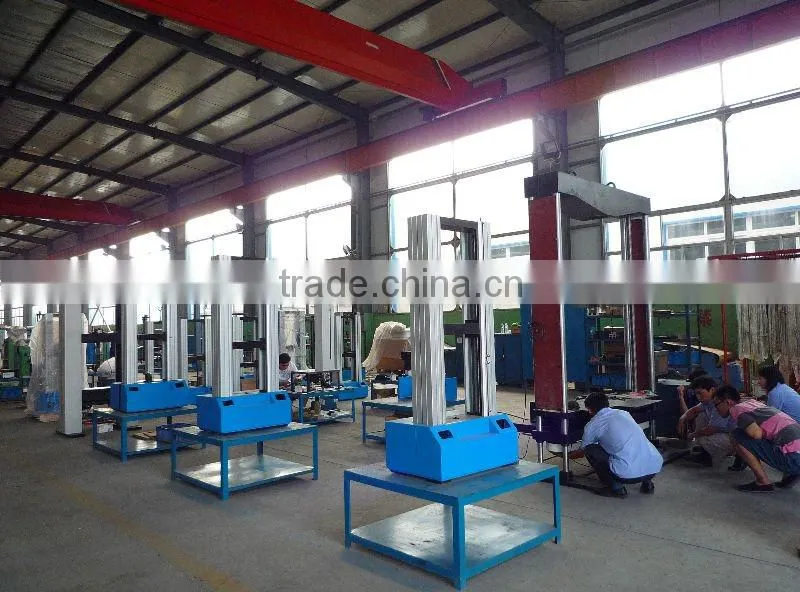

4.Our factory
