Specifications
electronic universal tensile testing machine1.10KN 20KN testing force
2.double beam structure
3.high precision servo motor

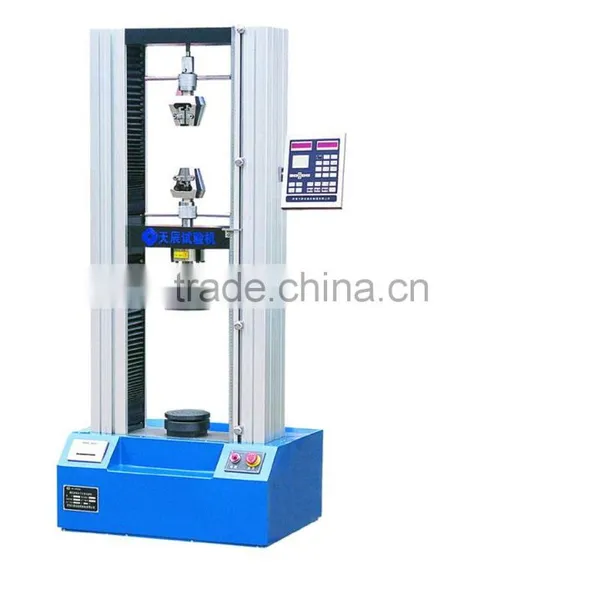

Jinan Tenson double beam digital display type electronic universal testing machine 10KN 20KN
1. Detailed information of universal testing machine
WDS Series digital electronic universal testing machines are suitable for tensile, compression, shearing, peeling, tearing etc test of metal materials and non-metal materials, like rubber, plastic, cable wire, composite material, plastic profile, spring, etc. It conforms to GB, ISO, JIS, DIN, ASTM, etc standards. It also supports customized designed software, which is an ideal testing machine for quality control department, scientific research, universities and colleges, industrial and mining enterprises.
2.Main technical parameters
|
Model Specification |
WDS-10A |
WDS-20A |
WDS-10 |
WDS-20 |
Range of testing force (kN) |
0.2~10 |
0.4~20 |
0.2~10 |
0.4~20 |
Accuracy of testing force |
±1% of indicated value |
|||
|
Resolution of crosshead displacement measurement (mm) |
0.01 |
|||
Speed Range of crosshead |
0.01mm/min~500mm/min, servo control |
|||
Effective testing space (mm) |
800 |
|||
Power supply |
220V±10%, 50Hz |
380V±10%, 50Hz |
||
Working environment |
Room temperature~30°C, relative humidity<80% |
|||
Main configuration |
Chinese AC Servo motor and |
Imported AC Servo motor and driver |
||
Overall dimension (mm) |
740×500×1680 |
|||
Weight (kg) |
450 |
|||
3. Function and Features:
Host machine
a. Double beam structure, aluminum alloy frame cover, more exquisite and artistic.
b. Tensile, compression and three point bending grip for each one.
c. Full digital AC servo motor and driver
d. Precision lead screw and reducer, stable and low noise.
Measuring and control system
a. Auto zero: the master control system once receives the test start order, auto zero.
b. Auto gear shift: auto gear shift according to actual load.
c. Auto test: when setting finished, auto test.
d. Batch test: it supports batch test for same specification specimen
e. Auto print: when test finished, auto print test result.
f. Real time display: load force and curve could real time displayed
g. Limit protect: dual protection: program control and mechanical
h. Over load protection: when load over max. load capacity of 2%-10%, auto stop.
i. Emergency stop: emergency stop button is available.

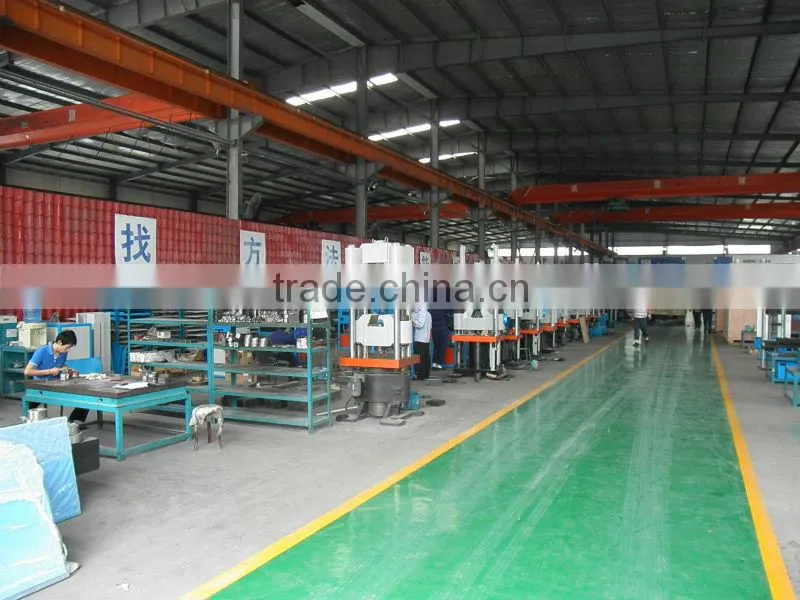

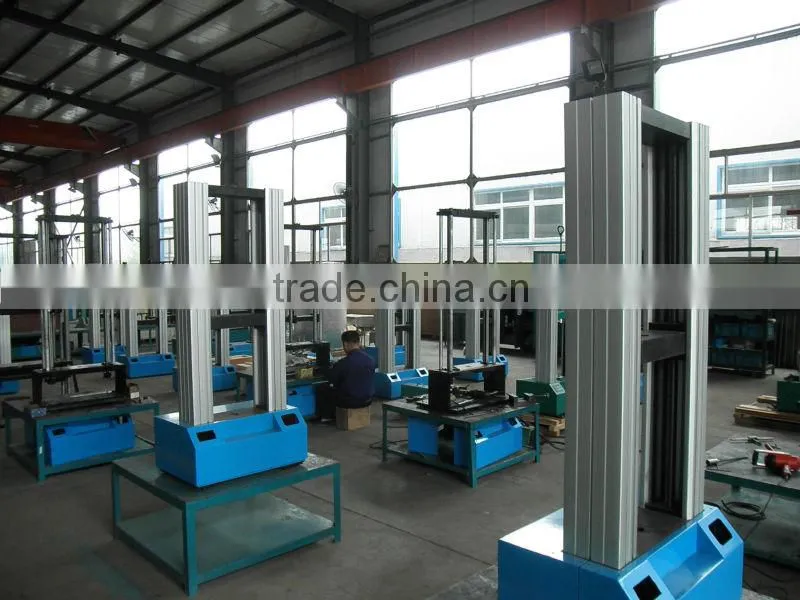

Our workshop
