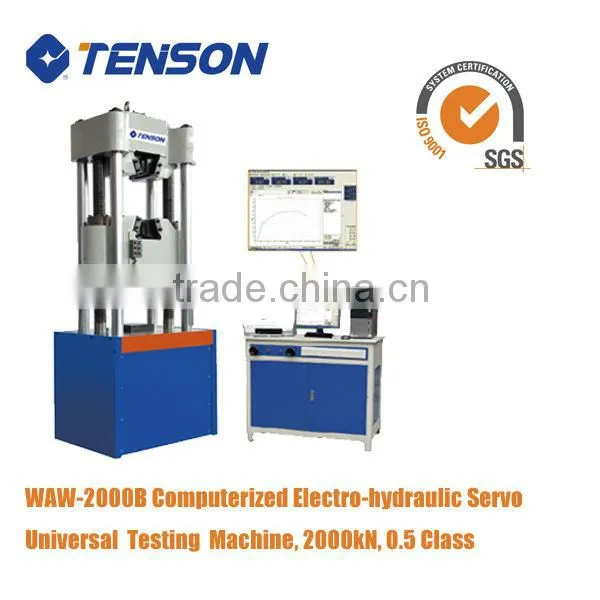

(100N~2000KN) Universal Testing Machine price /utm test machine price / hydraulic universal testing machine
- 15 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | TENSON | Model Number: | WAW-2000B |
Power: | Hydraulic | Usage: | Universal Testing Machine |
Product Description
Specifications
test machine1.tensile,compression,bending testing machine
2.max testing force:2000KN
3.thick steel column
4.CE ISO ASTM
(100N~2000KN) Universal Testing Machine price /utm test machine price / hydraulic universal testing machine
Introduction:
Perform tension, compression, flexure/bending and shearing for specimens. Suitable for metal and nonmetal material, such as iron, steel, steel bar, rebar, cement, concrete, rod and so on.
Specially design for production, research, student training and industrial laboratory.
Comply with ISO, BS, ASTM, JIS standard and so on.
1, Computer controlled hydraulic servo operate loading model, adopt Japan SHIMADZU technology, worm wheel and worm shaft to drive crosshead up and down; Double working space, tensile test at upside of crosshead, compression and bending test between working bench and crosshead;
2, Crosshead (the middle beam) movement is by motor and, worm wheel and worm shaft structure; This kind of structure to make the machine more stable and test data accuracy, as there few friction, this structure can guarantee more long working life of the testing machine.
Technical parameters
Max testing force | 100KN | 300KN | 600KN | 1000KN | 2000KN |
Accuracy Grade | Grade 1 / Grade 0.5 | ||||
Measuring range | 2%-100%FS | ||||
The test force accuracy | ≤±1% | ||||
Deformation measurement precision | In full range extensometer, within the limits of 2% to 100% is superior to the value plus or minus 1% | ||||
Stretching jaw largest spacing (mm) | 500 | 500 | 550 | 600 | 600 |
The thickness of the flat specimen clamping (mm) | 0-15 | 0-15 | 0-30 | 0-40 | 0-50 |
Round specimen clamping diameter(mm) | 10-32 | 10-32 | 13-40 | 26-60 | 15-70 |
The compression space distance (mm) | 0-450 | 0-450 | 0-450 | 0-470 | 0-600 |
The piston stroke is not less (mm) | 150 | 150 | 200 | 250 | 280 |
Upper and lower platen size (mm) | 170*170 | 170*170 | 170*170 | 204*204 | 204*204 |
Tension and compression space two pillar spacing | ≥450 | ≥450 | ≥450 | ≥600 | ≥600 |
Dimension (length**width* height mm) | 800*700*2000 | 900*850*2050 | 900*850*2150 | 960*1000*2200 | 1250*800*3500 |
Oil source dimension ( length**width* height mm) | 600*600*1200 | 600*600*1200 | 600*600*1200 | 1080*600*960 | 1080*600*960 |
Weight-Main Unit | 1800kg | 2200kg | 2500kg | 3000kg | 8000kg |
