Specifications
tensile testing machine1.

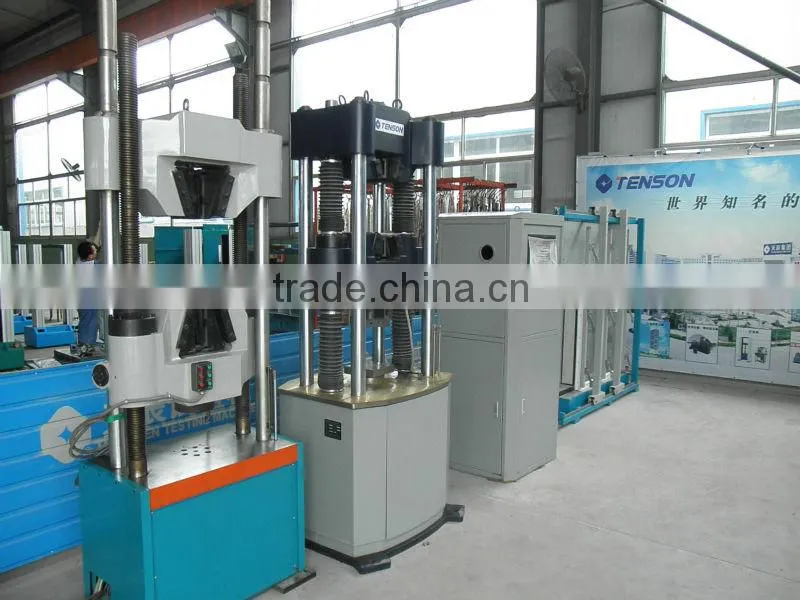

Electronic Tensile Testing Machine, electronic universal testing machine, UTM
Applicable material and field of electronic testing machine
This WDW-20 computer controlled electronic universal testing machine is widely used for tensile, compression, bending test of metal materials and non-metal materials, like rubber, plastic, cable, wire, steel, aluminum, copper, geo-textile, thread, wood, alloy, PVC, waterproof roll, etc.
In standard, it conforms to ISO, JIS, DIN and ASTM, etc international standard.
It is an essential testing instrument for quality testing section, university and colleges, research institution and industrial and mining enterprise.
Feasures of testing machine
1) Adopt AC servo motor and driving system, ensure transmission and moment of force stable;
2) Adopt imported high accuracy ball leading screw, stable transmission;
3) Compatible PC control, professional software to provide functions of Up and Down the crosshead;
4) With manual operation panel, control crosshead up and down at a setting speed;
5) Protect function: with software protection and mechanical limitation protection functions, set the overload value on software, if the operation load reach this value, will automatically stop the machine; and over current, over voltage protection as well;
6) PC control system, with advantage of high integration, reliable performance, easy adjustment etc. can real time collect test data, on-time display test curve, test data file can be saved as ACCESS and SQL serve, convenient for customer's data resource storage;
Technical parameters
| Model | WDW-20 |
| Resolution grade | 0.5grade |
| Effective force measurement range | 0.4%~100%FS |
| Force measurement precision | Within ±0.5% of display value |
| Load display resolution | maximum load 1/±300000 yard, internal and external do not divide class, and during whole test resolution unchanged |
| Effective test width | 540mm |
| Effective tensile space | 650mm |
| Test speed range | 0.001~500mm/min |
| Displacement display value resolution | Within±0.5%/ Within±0.2% |
| Deformation display value resolution | Within±0.5% |
| Test shelf safety device | Electronic limit space protection |
| Lifting devices of test shelf | Fast/slow speed automatic control |
| Return function of test shelf | Options of manual or auto, the test shelf will manually or automatically to the test initial position at highest speed. |
| Overload protection | The machine will automatically protect when there is 10% more than the maximum load. |
