Specifications

universal testing machine
1) used to test the physical properties of non-metal
2)Max. load: 100KN
3)PC control system

WDW-100 100KN Tensile Testing Machine+Tensile Testing Machine price+Universal Tensile Testing Machine Manufacturers

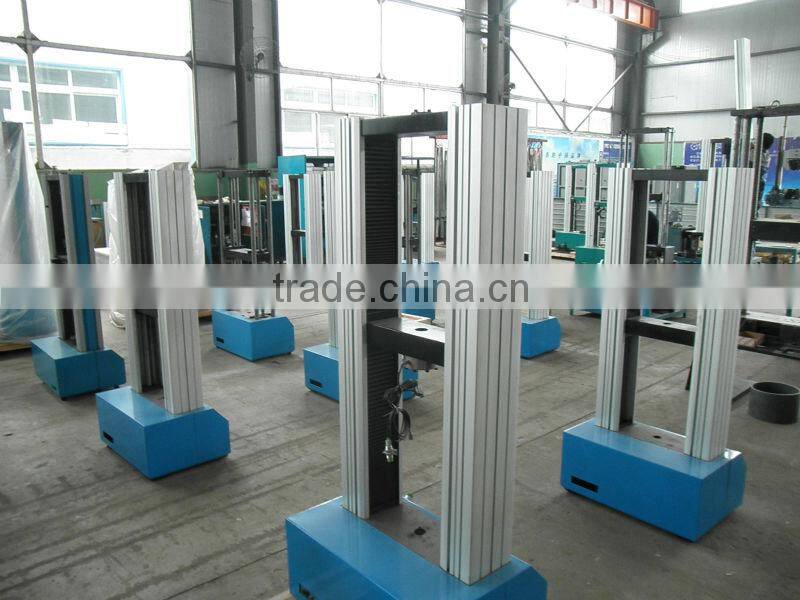

Introduction of universal testing machine





WDW-100 Computer Control Electronic Universal Testing Machine is used to test the physical properties of metal, non-metal and composite material specimens. It’s used in many industries including construction, aerospace, machinery, wire and cable, plastic and rubber, textile and home appliance.





Features of universal testing machine

1) Adopt AC servo motor and driving system, ensure transmission and moment of force stable;



2) Adopt imported high accuracy ball leading screw, stable transmission;



3) Compatible PC control, professional software to provide functions of Up and Down the crosshead;



4) With manual operation panel, control crosshead up and down at a setting speed;



5) Protect function: with software protection and mechanical limitation protection functions, set the overload value on software, if the operation load reach this value, will automatically stop the machine; and over current, over voltage protection as well;



6) PC control system, with advantage of high integration, reliable performance, easy adjustment etc. can real time collect test data, on-time display test curve,  test data file can be saved as ACCESS and SQL serve, convenient for customer's data resource storage;



Main mechnical parameters





1. Max Capacity: 20kN,50kN,100KN,200kN,300kN,600kN



2. Range of testing force: 1%~100%



3. Accuracy of force: ≤±1% of indicated value



4. Structure: door type with double space



5. Testing speed: 0.005 mm/min -500 mm/min stepless speed regulation



6. Precision of testing force: error less than ±1%



7. Precision of displacement: 0.01mm



8. Resolution: 1/200000 of max testing force



9. Relative error of displacement: ±1%



10. Effective Tension space: 500mm



11. Host size(L*W*H): 980×650×2050mm



12. Power supply: 1-phase, 220V±10%, 50Hz;



13. Working environment: Indoors’ temperature10-30°C, Relative humidity≤80%
