Split Ultrasonic Level Meter BBZ MH-F With Mideum Range

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range thumbnail-3

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range thumbnail-4

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range thumbnail-5

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range thumbnail-6

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range photo-1

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range photo-2

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range photo-3

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range photo-4

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range photo-5

Split Ultrasonic Level Meter BBZ MH-F With Mideum Range photo-6

US$ 300 - 1,400 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

BBZ

Model Number:

BBZ MH-F

Contact Supplier Request Quote Chat Now

Henan BBZ Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai Ningbo Lianyungang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name BBZ

Model Number BBZ MH-F

Product Description

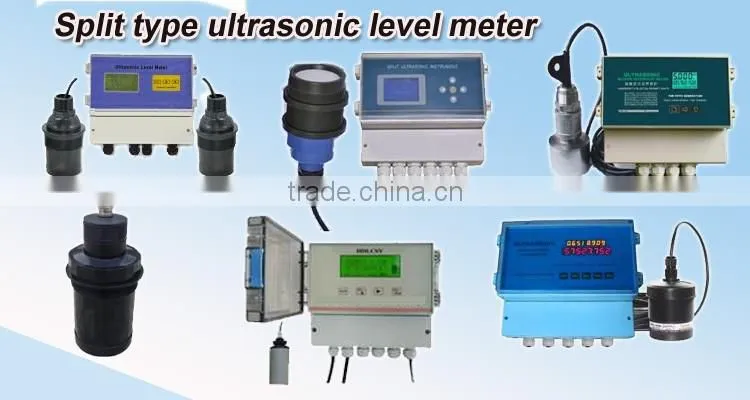

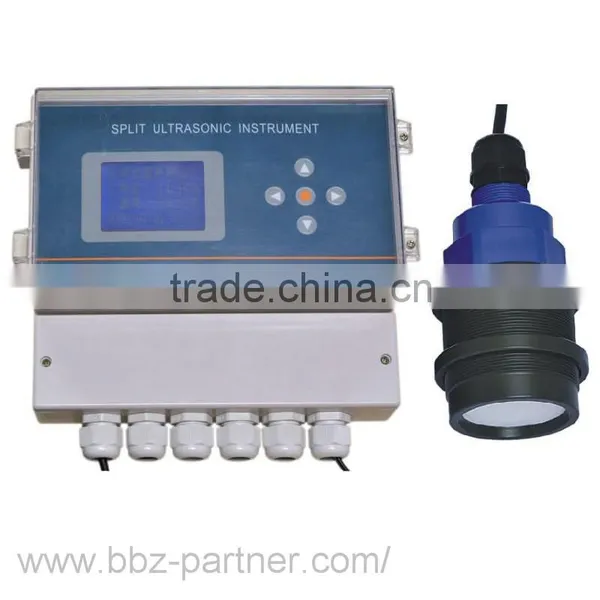

Split ultrasonic level meter BBZ MH-F with mideum range

Product Application

1. Water and sewage treatment
Pumping stations, drainage sump, biochemical reaction tanks, sedimentation tanks, etc.
2. Electricity power, mining
Mortar pool, coal slurry pond, grease tank, stockyard or some mobile device control
3. Food Industry
Wineries, silos, tanks food material, etc.
4. in conjunction with control system

Main Features

1. Accurate measurement, reliable and generous appearance
2. Large scale integrated circuit and component placement rate up to 90% to ensure the long-term reliability and low power consumption
3. Large-screen display easy to use, support the SD card data acquisition and serial data download
4. Can record ten interference echo points

Specifications

Measuring range	0 ~ 5 M, 0 ~ 8 M (when ordering optional)
Dead band	<0.3 m
Emission angle	12 °
Accuracy	± 0.3% × Range
Minimum display resolution	1MM
Temperature compensation	Automatic
Operating Frequency	20 KHz ~ 200KHz (due to different model specifications)
Setting on spot	complete by this unit button
Calibration	Factory calibration, field calibration
Display	LCD
Output signal	4 ~ 20mA, R Relay; RS232; RS485; load impedance (0 ~ 1KΩ)
Operating voltage	AC220V or DC24V
Power consumption	<3W

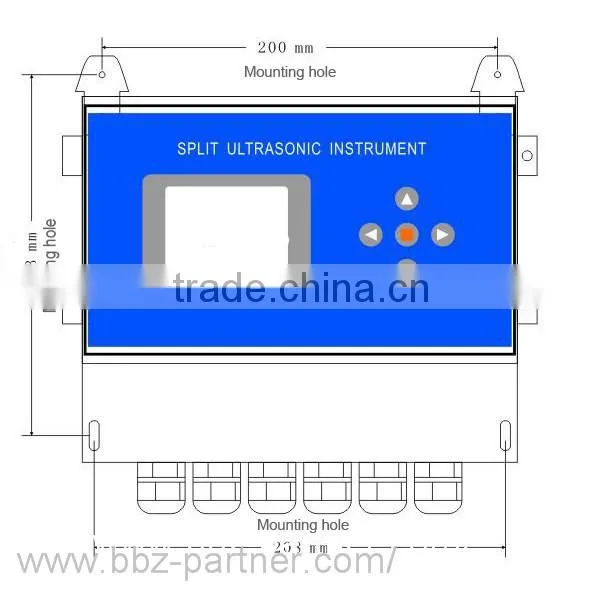

Physical properties	Host: 240 × 184 × 110MM Housing material: ABS plastic; transducer: PP Connection: threaded connection or spiro ring fixed Installation: Thread M46 × 1.5 M65 × 1.5 M30 × 1.5 Keyboard: five SMD key Sensor cable: shielded cable 10M (any length optional)
