Home > Instruments & Meters > Meter for Liquid & Gas > Liquid Level Meter > Three-wire Ultrasonic Level Transmitter BBZ MH-CA

Three-wire Ultrasonic Level Transmitter BBZ MH-CA

Three-wire Ultrasonic Level Transmitter BBZ MH-CA thumbnail-1
Three-wire Ultrasonic Level Transmitter BBZ MH-CA thumbnail-2
Three-wire Ultrasonic Level Transmitter BBZ MH-CA thumbnail-3
Three-wire Ultrasonic Level Transmitter BBZ MH-CA thumbnail-4
Three-wire Ultrasonic Level Transmitter BBZ MH-CA thumbnail-5
Three-wire Ultrasonic Level Transmitter BBZ MH-CA thumbnail-6
Three-wire Ultrasonic Level Transmitter BBZ MH-CA photo-1
Three-wire Ultrasonic Level Transmitter BBZ MH-CA photo-2
Three-wire Ultrasonic Level Transmitter BBZ MH-CA photo-3
Three-wire Ultrasonic Level Transmitter BBZ MH-CA photo-4
Three-wire Ultrasonic Level Transmitter BBZ MH-CA photo-5
Three-wire Ultrasonic Level Transmitter BBZ MH-CA photo-6
US$ 200 - 1,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
BBZ
Model Number:
BBZ MH-CA
Contact Supplier Request Quote Chat Now
Henan BBZ Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name BBZ
Model Number BBZ MH-CA
Product Description

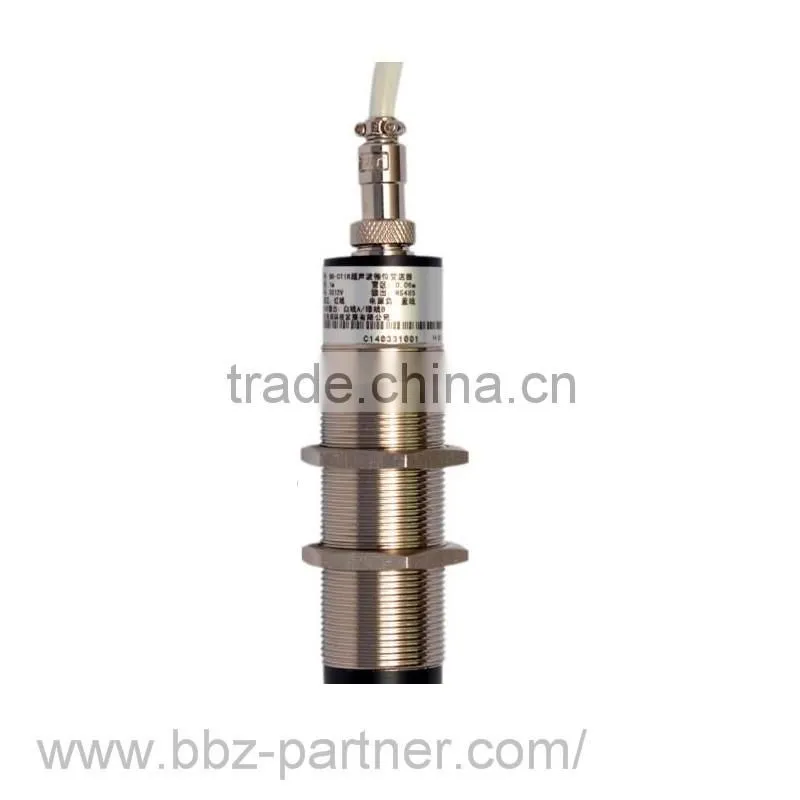

Three-wire ultrasonic level transmitter BBZ MH-CA


Application


1. Water and wastewater treatment

Pumping stations, wet wells, biochemical reaction tanks, sedimentation tanks and other tanks

2. Power, mining

Mortar pool, coal slurry pond, water treatment

3. Oilfield

Specification

Level Range
0 ~ 8M (standard plane, optional)
Blind spot detection
≤60MM ~ 300MM (according to different sensor and range)
Detection accuracy
± 0.3% × range or ± 1MM
Output signal
4 ~ 20mA; RS485 (optional)
Dimensions
Φ55 × 119 × G1 1/2 pipe thread
Display
No
Working temperature
-10 ~ 60℃
Power supply
DC12~24V/300mA
Installation
G1 1/2 pipe thread or Φ47MM hole
Inlets
1.5M (any length optional)
Protection class
Sensor IP67
Explosion-proof class
Intrinsically safe: ExiaIIBT4 (optional item)

Features

1. Sturdy, stable sensor for harsh industrial applications
2. Strong anti-interference and online output adjustment
3. Built-in temperature sensor in transmitter for real-time automatic temperature compensation of measured values
4. 4 ~ 20MA current output
5. Parameters can be set through RS485, or set the machine parameters inside through external resistor debugging


Description


Three-wire ultrasonic level transmitter BBZ MH-CA is able to meet most level measurement requirements not contacting with the industry media, completely solve winding, blockage, leakage, corrosion, maintenance inconvenience and other defects brought by pressure, capacitive, float and other traditional measurement.

1. Designed for low cost, small installation space, supporting equipment and other application conditions.

2 Achieve a fully digital, user-friendly design concept with perfect material/level monitoring and control functions.

3. Main chip use importing industrial grade microcontroller, digital temperature compensation and dozens of associated ASIC chip.

Application
