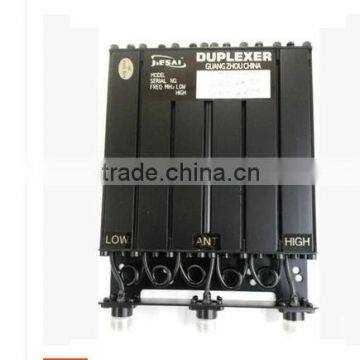

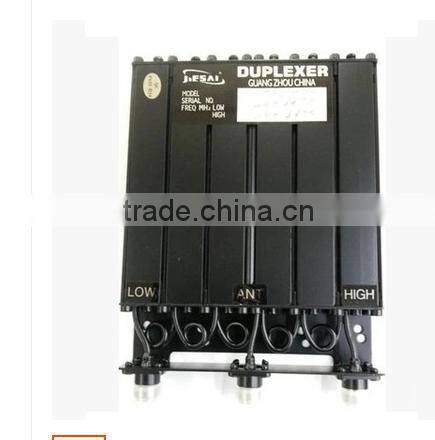

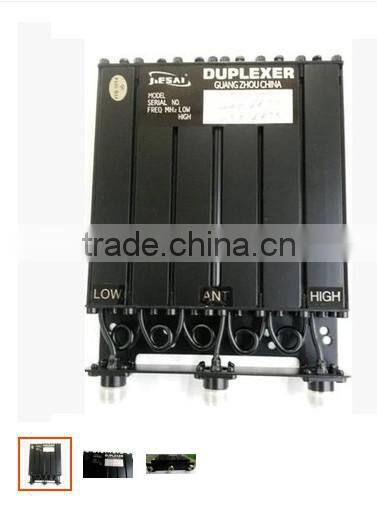

Help CenterKingtone Vhf Uhf Walkie Talkie Duplexer ,wireless Radio Communication Walkie Talkie Duplexer
Related Products
-
30W VHF Duplexer Radio for Repeater 136-180mhz Vhf DuplexerUS$ 1 - 99MOQ: 1 Piece -
Two Way Radio Repeater Duplexer 136-174/400-480mhz Walkie Talkie Signal Booster Duplexer Vhf UhfUS$ 1 - 99MOQ: 1 Piece
-
GSM/DCS/WCDMA/LTE 900 1800 2100 2600 Lte 4g Quad Band CombinerUS$ 1 - 99MOQ: 1 Set
-
(3 in 1 Out) GSM/DCS/WCDMA 2g 3g 900 1800 2100 Tri-band CombinerUS$ 1 - 99MOQ: 1 Set
-
50W Duplexer Radio Repeater 136-174mhz 400-470mhz UHF VHF Repeater DuplexerUS$ 1 - 99MOQ: 1 Piece
|
Type |
KT-150D Duplexer |
||
Price |
$76/pcs 30W $88/pcs 50w |
||
Frequency Range |
VHF 149.325-154.325(customized) |
||
UHF 471.550-486.550 (customized) | |||
VSWR |
≤1.4 |
||
Frequency Spacing(MHz) |
5-7 |
>7-12 |
>12-15 |
Bandwidth(KHz)) |
±250 |
±450 |
±150 |
Insertion Loss |
≤1.2dB |
≤1.0dB |
≤1.0dB |
Isolation/ Rejection |
≥75dB |
||
Input Power |
30W/50W |
||
Normal Impedance |
50Ω |
||
Connector |
N-F/BNC-F |
||
Operating Temperature |
-30℃~+60℃ |
||
Weight(kg) |
1.2KG |
||

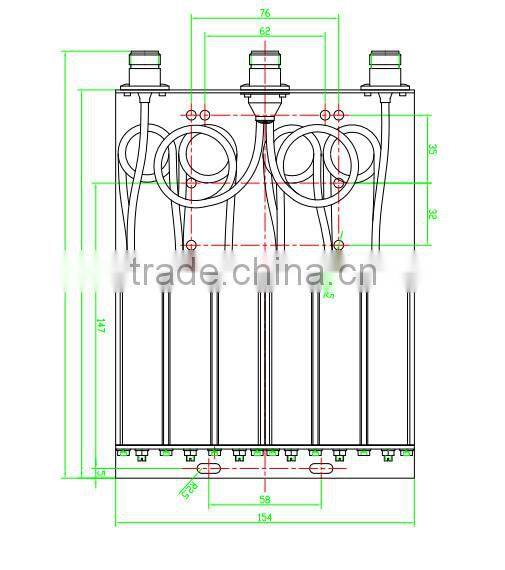

Dimensions |
218*154*35(±0.5mm) |
||
Insertion Loss Ripple:1.2DB
Return Loss:1.2DB
Rejection:75DB
Input Power:30w
Impedance:50Ω
Port Connectors: N-Connector
Kingtone repeater has pass following approval certifictions:
At present,Kingtone exhibited the highest quality products and enterprise's comprehensive strength,and Kingtone continues to strengthen technological innovation on repeater products and will launch the new products on the market soon.With your supports and new requirements which can make us improve our service,innovative our technology and consummate the products.
Our present manufacturing service:
1) GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE and other Repeater, including:
1. Single band Repeater
2. Dual Band Repeater
3. Tri-band Repeater
4. Optic Fiber Repeater
5. Frequency shift Repeater
6. Wide Band Repeater
7. Channel Selective Repeater
8. ICS Repeater
2)All kind of Repeater Accessories, including:
1.Antenna
2.Splitter
3.Connector
4.Cable
5.Functional Modules
The main freuquency range of repeaters we support :
| Support System | Frequency Range | Output Power |
| Single band repeater | ||
| GSM900MHZ | 890-915MHz/935-960MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| DCS1800MHz | 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| PCS1900MHz | 1895-1910MHz/1975-1990MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| GSM850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| CDMA450MHz | 450-457.5MHz/460-467.5MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| CDMA800MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| CDMA1900MHz | 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| UMTS850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| UMTS2100MHz | 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
| 4G LTE 2600Mhz | 2500-2570MHz/2620-2690MHz | 2W/5W/10W/20W |
| Multi-band repeater | ||
| GSM900/1800MHZ Dual band | 890-915MHz/935-960MHz | 2W/5W/10W/20W/ |
| 1710-1785MHz/1805-1880MHz | ||
| GSM850/1900MHZ Dual band | 824-849MHz/869-894MHz | 2W/5W/10W/20W |
| 1880-1890MHz/1960-1970MHz | ||
| GSM900/UMTS2100 Dual band | 890-915MHz/935-960MHz | 2W/5W/10W/20W/ |
| 1920-1980MHz/2110-2170MHz | ||
| GSM900/1800/2100MHZ Tri-band | 890-915MHz/935-960MHz | 2W/5W/10W/20W/ |
| 1710-1785MHz/1805-1880MHz | ||
| 1920-1980MHz/2110-2170MHz | ||
| GSM900/1800/2100M/LTE 2600mhz Quad band | 890-915MHz/935-960MHz | 2W/5W/10W/20W/ |
| 1710-1785MHz/1805-1880MHz | ||
| 1920-1980MHz/2110-2170MHz | ||
| 2500-2570MHz/2620-2690MHz | ||
For more information
pls kindly visit our website :;
