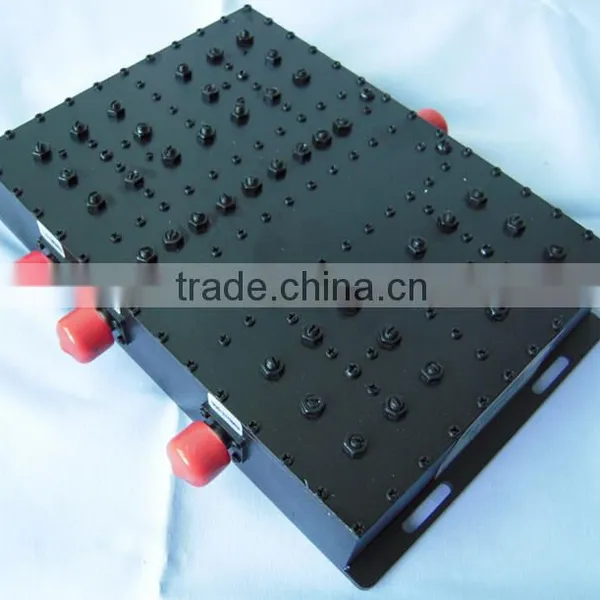

(3 in 1 Out) GSM/DCS/WCDMA 2g 3g 900 1800 2100 Tri-band Combiner

(3 in 1 Out) GSM/DCS/WCDMA 2g 3g 900 1800 2100 Tri-band Combiner thumbnail-1
(3 in 1 Out) GSM/DCS/WCDMA 2g 3g 900 1800 2100 Tri-band Combiner photo-1
US$ 1 - 99 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Kingtone
Model Number:
KT-TRI-BAND Combiner
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Kingtone
Model Number KT-TRI-BAND Combiner
Product Description



SM&CDMA/DCS/WCDMA 3/Tri-Band Combiner (3 in 1 out)

GSM&CDMA/DCS/WCDMA 3/Tri-Band Combiner (3 in 1 out)

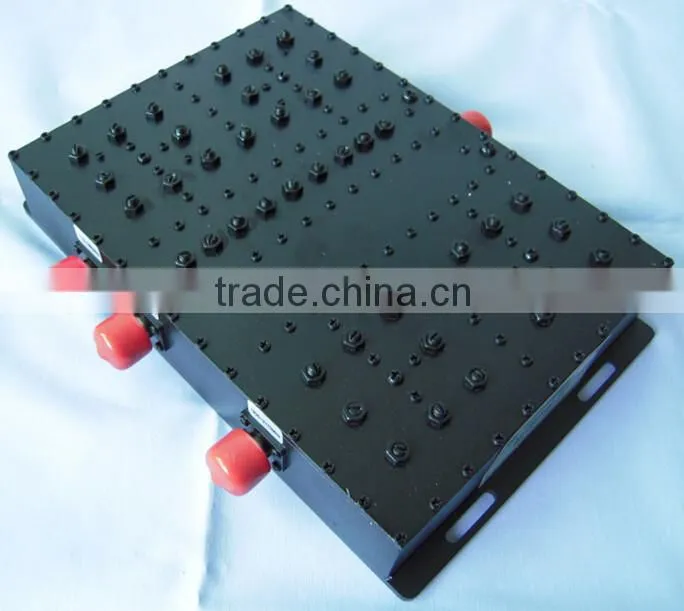

 (3 in 1 out) GSM/DCS/WCDMA 2g 3g 900 1800 2100 tri-band combiner

Application:

  1. Mobile Communication Network Optimization and Indoor distribution system.
  2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
  3. Radar, Electronic Navagation and Electronic Confrontation.
  4. Aerospace Equipment systems.



 Specification:





Model    CH1: GSM&CDMA CH2: DCS   CH3:WCDMA
Frequency(MHz)     885-960&800-960  1710-1880   2010-2025
Insertion Loss(dB)      ≤0.6dB ≤0.6dB    ≤0.6dB
Passband Ripple(dB)      ≤0.4dB ≤0.4dB    ≤0.4dB
Out band Rejection(dB)     ≥80@CH2&3   ≥80@CH1&3   ≥80@CH1&2
VSWR                                           ≤1.25
IM3                            ≤-120dBc or -140dBc@2×43dBm
Impedance(ohm)                                              50
Power(W)                                              200
Operating Temperature(deg)                                         -30~+65°C
Connector Type                                              N-F





For more details, please contact us, we have various others items for your selection.




GSM

DCS

WCDMA

 frequency range

890-960

1710-1880

1920-2170

 Insert Lost

≤0.5dB

≤0.8 dB

≤0.8 dB

Passband Riplpe

≤0.3 dB

≤0.5 dB

≤0.6 dB

Isolation

≥80dB

Third-order-IM

≥120dB@2X43dBm

VSWR

≤1.3

Impedance

50Ω

Power

≥100W

Connector

N-Female

Temp

-25~+55℃

Size

206mmX149mmX40mm
