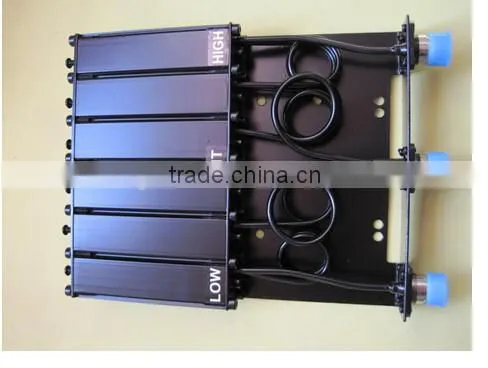

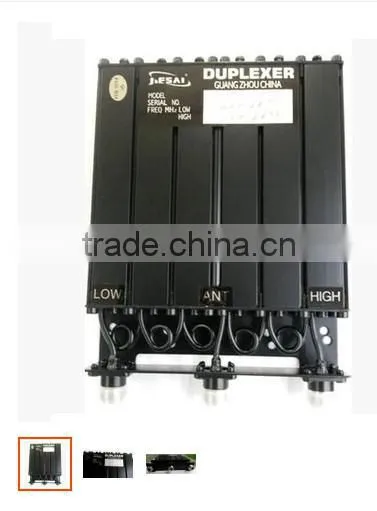

two way radio repeater duplexer 136-174/400-480mhz walkie talkie signal booster duplexer vhf uhf
Quick Details
| Place of Origin: | China (Mainland) |
Brand Name: | KINGTONE |
Model Number: | KT-DUPLEXER |
| Product name: | VHF 30W Duplexer |
Frequency: | VHF UHF Customized |
Output Power: | 30W/50w |
| Connector Type: | N-F/BNC-F |
color: | black |
Weight: | 1.2kg |
two way radio repeater duplexer 136-174/400-480mhz walkie talkie signal booster duplexer vhf uhf
Insertion Loss Ripple:1.2DB
Return Loss:1.2DB
Rejection:75DB
Input Power:30w/50W
Impedance:50Ω
Port Connectors: N-Connector
|
Type |
KT-150D Duplexer |
||
Price |
$76/pcs 30W $88/pcs 50w |
||
Frequency Range |
VHF 149.325-154.325(customized) |
||
UHF 471.550-486.550 (customized) | |||
VSWR |
≤1.4 |
||
Frequency Spacing(MHz) |
5-7 |
>7-12 |
>12-15 |
Bandwidth(KHz)) |
±250 |
±450 |
±150 |
Insertion Loss |
≤1.2dB |
≤1.0dB |
≤1.0dB |
Isolation/ Rejection |
≥75dB |
||
Input Power |
30W/50W |
||
Normal Impedance |
50Ω |
||
Connector |
N-F/BNC-F |
||
Operating Temperature |
-30℃~+60℃ |
||
Weight(kg) |
1.2KG |
||

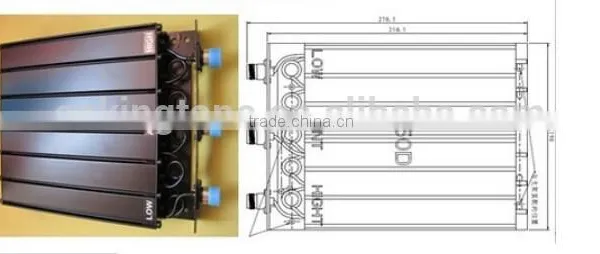

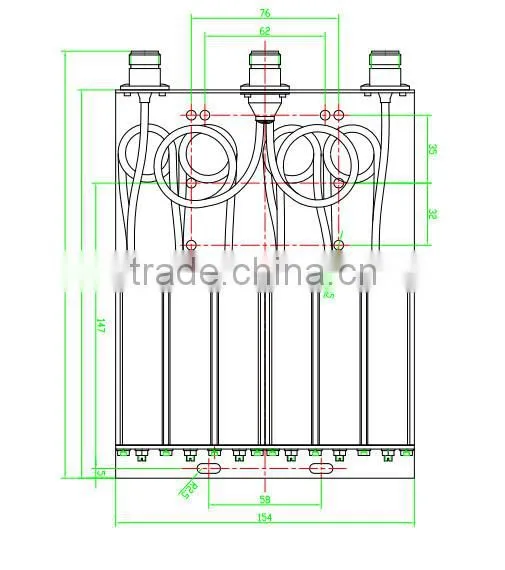

Dimensions |
218*154*35(±0.5mm) |
||
Kingtone repeater has pass following approval certifictions:
At present,Kingtone exhibited the highest quality products and enterprise's comprehensive strength,and Kingtone continues to strengthen technological innovation on repeater products and will launch the new products on the market soon.With your supports and new requirements which can make us improve our service,innovative our technology and consummate the products.

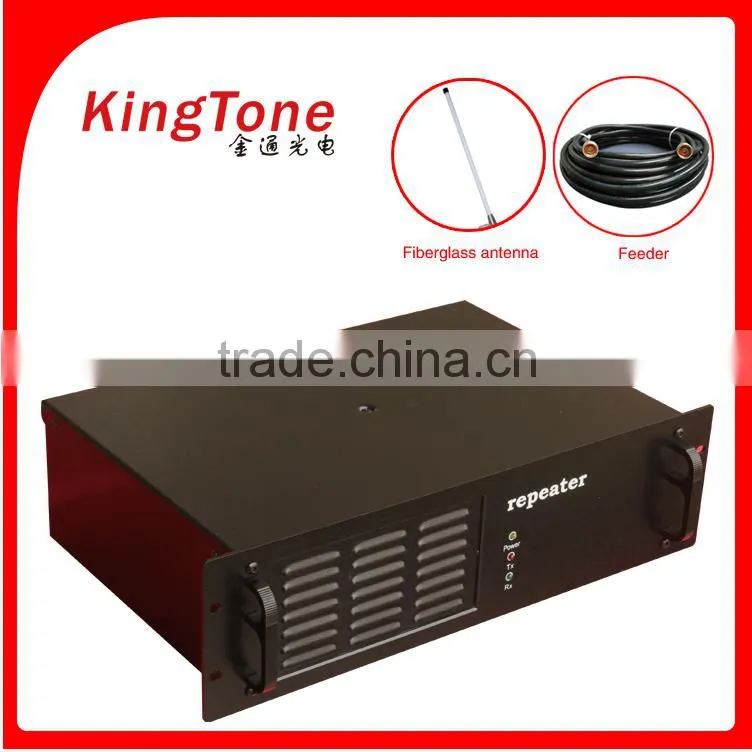

walkie talkie repeater uhf with full duplexer :
Why choose us?
1.- The High Power GSM Repeater from Kingtone allows operators the option of amplifying two desired bands in two different systems. Working bands for both systems can be customized and different output power models can be selected according to the required coverage area.
- The gsm repeater is versatile and competitive in design to optimize cell coverage and to enhance cell signals of shadowing areas. It is commonly used for synthesized frequency hopping system.
2.-Kingtone was established in 2006, located in Quanzhou, China. It is a leading manufactory specializing in wireless network telecommunication equipment and dedicated to R&D, manufacture,s alses and services of outdoor and indoor repeater and revelent products.
3.-Kingtone pays special attention to R&D, innovation, quality system and brand building. We have achieved 7 software copyright certificates registered by the State Copyright Bureau and passed the ISO9001:2008 quality management system. Own four Brands have been registered by the State Trademark Bureau and we have been recognized as "innovative and high technology enterprises " by Fujian Science and Technology Department in 2010.
