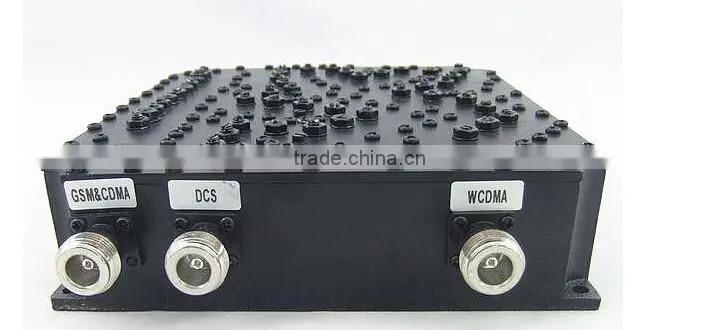

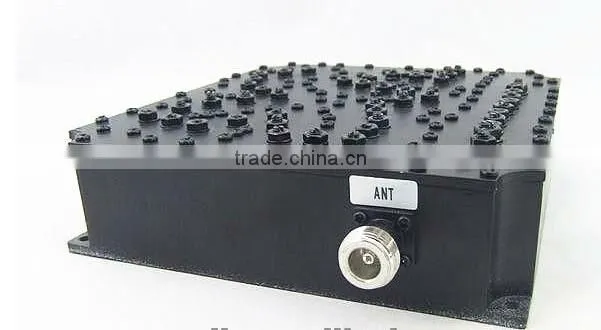

Help CenterGSM/DCS/WCDMA/LTE 900 1800 2100 2600 Lte 4g Quad Band Combiner
Related Products
-
(3 in 1 Out) GSM/DCS/WCDMA 2g 3g 900 1800 2100 Tri-band CombinerUS$ 1 - 99MOQ: 1 Set -
50W Duplexer Radio Repeater 136-174mhz 400-470mhz UHF VHF Repeater DuplexerUS$ 1 - 99MOQ: 1 Piece
-
Kingtone Vhf Uhf Walkie Talkie Duplexer ,wireless Radio Communication Walkie Talkie DuplexerUS$ 1 - 99MOQ: 1 Piece
-
30W VHF Duplexer Radio for Repeater 136-180mhz Vhf DuplexerUS$ 1 - 99MOQ: 1 Piece
-
Two Way Radio Repeater Duplexer 136-174/400-480mhz Walkie Talkie Signal Booster Duplexer Vhf UhfUS$ 1 - 99MOQ: 1 Piece

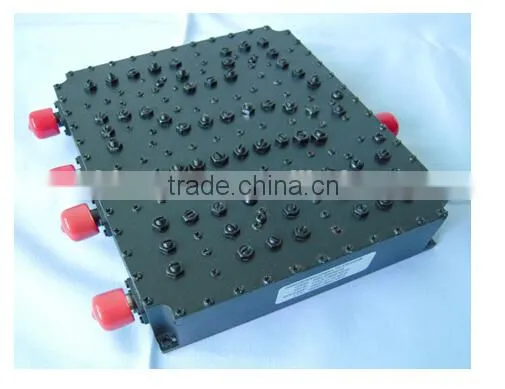

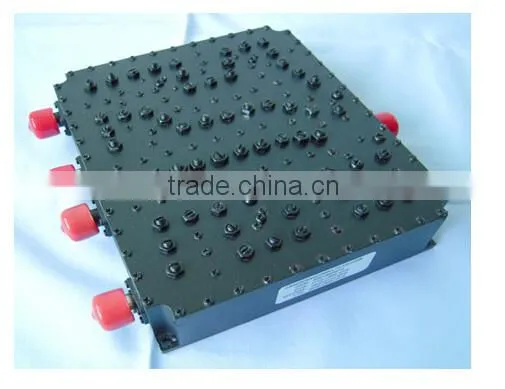

GSM&CDMA/DCS/WCDMA LTE Quad band Combiner (4 in 1 out)
Application:
- Mobile Communication Network Optimization and Indoor distribution system.
- Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
- Radar, Electronic Navagation and Electronic Confrontation.
- Aerospace Equipment systems.
Introduction and Applications:
The combiner in communication system combine signal into one set of indoor distribution system.which
is widely used in the following fields:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
echnical Specifications of 4way combiner/diplexer:
Model |
YF-RFCOM-3-02N |
||
CH1: GSM&CDMA |
CH2: DCS |
CH3:WCDMA |
|
Frequency(MHz) |
885-960&800-960 |
1710-1880 |
2010-2025 |
Insertion Loss(dB) |
≤0.6dB |
≤0.6dB |
≤0.6dB |
Passband Ripple(dB) |
≤0.4dB |
≤0.4dB |
≤0.4dB |
Out band Rejection(dB) |
≥80@CH2&3 |
≥80@CH1&3 |
≥80@CH1&2 |
VSWR |
≤1.25 |
||
IM3 |
≤-120dBc or -140dBc@2×43dBm |
||
Impedance(ohm) |
50 |
||
Power(W) |
200 |
||
Operating Temperature(deg) |
-30~+65°C |
||
Connector Type |
N-F |
||
Dimensions(mm) |
219*147*41 (Without Connectors) |
||
Weight(kg) |
1.750 |
||
NOTE: All the specifications for combiner/diplexer can be changed as customer's
requirments.
GSM |
DCS |
WCDMA |
LTE |
890-960 MHz |
1710-1880 MHz |
1920-2170 MHz |
2500-2690 MHz |
≤0.5dB |
≤0.8 dB |
≤0.8 dB |
≤0.9 dB |
≤0.3 dB |
≤0.5 dB |
≤0.6 dB |
≤0.8 dB |
≥80dB | |||
≤1.3 | |||
50Ω | |||
≥100W | |||
N-Female | |||
-25~+55℃ | |||
|
180mmX152mmX40mm
| |||
