Specifications
submersible pump for clean waterhigh head
aluminum pump body
Stainless steel shaft

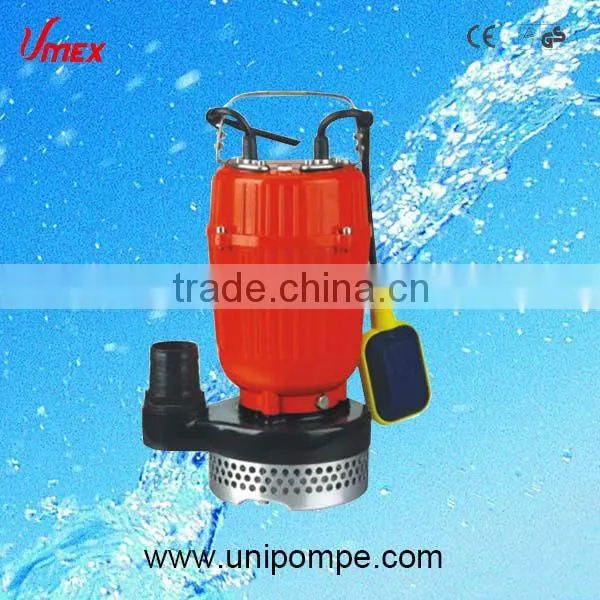

SPA MODEL STANDING SUBMERSIBLE PUMP
RANGE OF PERFORMANCE
8Flow rate up to 666 L/min (40 m3/h)
8Head up to12 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 2mm
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Handle |
13 |
Bolt |
25 |
Line protector |
37 |
"O" ring |
2 |
Protector |
14 |
"O" ring |
26 |
Motor cover |
38 |
Pump body |
3 |
Screw |
15 |
Capacitor cover |
27 |
Undulated washer |
39 |
Screw |
4 |
Washer |
16 |
Screw |
28 |
Bearing |
40 |
Oil seal |
5 |
Cable presser |
17 |
Washer |
29 |
Rotor |
41 |
Impeller |
6 |
Screw |
18 |
"O" ring |
30 |
Key |
42 |
Washer |
7 |
Flange |
19 |
Capacitor |
31 |
Bearing |
43 |
Nut |
8 |
Cable protector |
20 |
"O" ring |
32 |
Thermal protector |
44 |
Pump cover |
9 |
Float switch |
21 |
Screw |
33 |
Stator |
45 |
Nut |
10 |
Bolt |
22 |
Stretching washer |
34 |
Mechanical seal |
46 |
Bilateral bolt |
11 |
Washer |
23 |
Washer |
35 |
"O" ring |
47 |
Filter mesh |
12 |
Cable |
24 |
Screw |
36 |
Out-let connector |
48 |
Nut |
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
Voltage/Frequency |
G.W |
PACKING DIMENSION |
(Kw) |
(m) |
(L/min) |
(mm) |
(V/Hz) |
(K.g) |
(cm) |
|
SPA-250F |
0.25 |
8 |
130 |
40 |
220/50 |
7.5 |
20.5X18.5X32.5 |
SPA-370F |
0.37 |
9 |
216 |
50 |
220/50 |
12.5 |
25X22X41.5 |
SPA-550F |
0.55 |
10 |
260 |
50 |
220/50 |
13.5 |
24.5X22X40 |
SPA-750F |
0.75 |
12 |
333 |
50 |
220/50 |
15.0 |
27.5X23.5X41.5 |
SPA-1100F |
1.1 |
9 |
666 |
75 |
220/50 |
21 |
32.5X22.5X48.5 |
8220V/50Hz , 240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
